Optical Domes

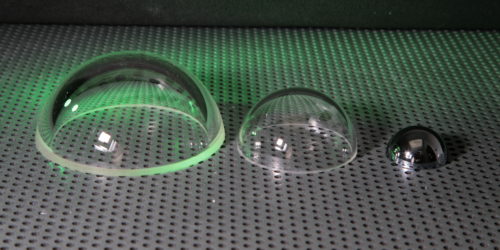

Optical Domes are used for applications requiring protection to camera lenses. They enable to reduce surface reflections and provide the wide angle of view. Optical Domes are used in underwater imaging cameras and wide view imaging cameras, particularly for surveillance and security. The most common materials include BK7, Fused Silica, Quartz and Sapphire. Selection of material depends on the environment which could be protecting aerial navigation systems or a sub sea dome for high pressure requirements.
Please contact our sales team.
View RoHS Statement
| Outer Dimension Range: | 10mm to 120mm Diameter |
| Thickness: | 1mm to 20mm (subject to diameter) |
| Materials: | Schott® N-BK7, Fused Quartz, Fused Silica, Sapphire, Silicon, Zns FLIR, ZnS MS, ZnSe & Chalcogenide |
| Coatings: | AR Optical coatings |
Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.
Part numbers listed with enquire, please contact us for prices & delivery times.
Select Your Currency:
| Part No | Data sheet |
Description | Diameter (mm) | Height | Thickness (mm) | Unit price (1-10) excl. VAT |
Qty |
Qty (10+)Volume pricing available for 10+, please add to quote. |
|---|---|---|---|---|---|---|---|---|
| ODB-252 | N-BK7 | Ø 25 | 12.50 | 2 | £195.00 | |||
| ODB-302 | N-BK7 or Equivalent | Ø 30 | 15 | 2 | £205.00 | |||
| ODB-502 | N-BK7 or Equivalent | Ø 50 | 25 | 2 | £265.00 | |||
| ODB-605 | N-BK7 or Equivalent | Ø 60 | 30 | 5 | £300.00 | |||
| ODB-753 | N-BK7 or Equivalent | Ø 75 | 37.50 | 3 | £350.00 | |||
| ODB-755 | N-BK7 or Equivalent | Ø 75 | 37.50 | 5 | £360.00 | |||
| ODB-1004 | N-BK7 or Equivalent | Ø 100 | 50 | 4 | £460.00 | |||
| ODQ-807 | Fused Quartz | Ø 79.3 | 40 | 35 | £1,050.00 |
