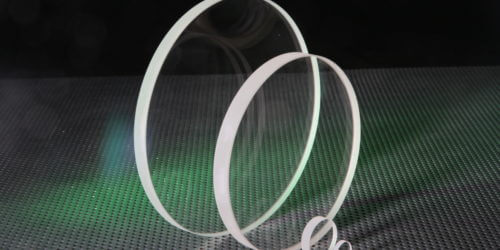

UV Fused Silica Windows - Precision

UQG Optics supply precision UV Fused Silica windows and flats. Fused Silica is ideal for precision optical flat windows due to its low co-efficient thermal expansion, low refractive index of refraction and high transmission. Used for laser and precision instrumentation they are custom AR coated for the UV ultraviolet to infrared regions. Custom optical coatings are provided and AR coatings for laser windows, for the power density of your beam to a precise laser damage threshold specification. The windows can be supplied with interferometer graphs from our metrology department using the latest tri-optics software.

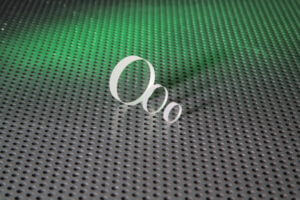

UQG optics stock two flatness specifications and offers a range of custom options.

Please contact our sales team.

Dimensions: Diameters 5mm to 150mm
Thickness Range: Subject to dimension & flatness
Coating Options: AR coatings 193nm to 2000nm
Options: Wedges, shapes & bevels

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Option A
Material:
UV Fused Silica Spectrosil 2000 ®
Diameter Tolerance:
+0.00/-0.10mm
Thickness Tolerance:
+0.50/-0.00mm
Edge Finish:
Fine ground
Surface Quality:
≤ 40/20 Scratch/Dig
Surface Flatness:
Lambda 4 both sides (@633nm)
Parallelism:
≤ 30 arc sec
Option B
Material:
UV Fused Silica Spectrosil 2000 ®
Diameter Tolerance:
+0.00/-0.10mm
Thickness Tolerance:
+0.50/-0.00mm
Edge Finish:
Fine ground
Surface Quality:
≤ 40/20 Scratch/Dig
Surface Flatness:
Lambda 10 both sides (633nm)
Parallelism:
≤ 30 arc sec

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Diameter (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
WFP-1034 PDF Precision UV Window (option A) Ø 103 £30.00
QTY
Added. View quote
WFP-1010 PDF Precision UV Window (option B) Ø 103 £65.00
QTY
Added. View quote
WFP-1534 PDF Precision UV Window (option A) Ø 153 £35.00
QTY
Added. View quote
WFP-1510 PDF Precision UV Window (option B) Ø 153 £70.00
QTY
Added. View quote
WFP-2564 PDF Precision UV Window (option A) Ø 256 £40.00
QTY
Added. View quote
WFP-2561 PDF Precision UV Window (option B) Ø 256 £85.00
QTY
Added. View quote

Part Number

WFP-1034

Precision UV Window (option A)

PDF Data sheet

Diameter (mm) Ø 10

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-50)

£30.00 Inc. VAT

QTY

Part Number

WFP-1010

Precision UV Window (option B)

PDF Data sheet

Diameter (mm) Ø 10

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-50)

£65.00 Inc. VAT

QTY

Part Number

WFP-1534

Precision UV Window (option A)

PDF Data sheet

Diameter (mm) Ø 15

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-50)

£35.00 Inc. VAT

QTY

Part Number

WFP-1510

Precision UV Window (option B)

PDF Data sheet

Diameter (mm) Ø 15

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-50)

£70.00 Inc. VAT

QTY

Part Number

WFP-2564

Precision UV Window (option A)

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 6

Focal Length (mm) 0

UNIT PRICE (1-50)

£40.00 Inc. VAT

QTY

Part Number

WFP-2561

Precision UV Window (option B)

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 6

Focal Length (mm) 0

UNIT PRICE (1-50)

£85.00 Inc. VAT

QTY
