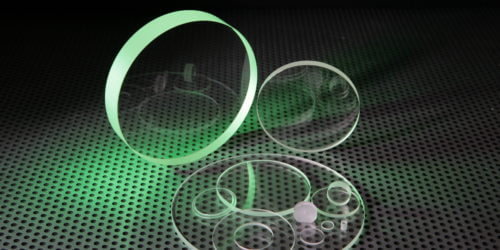

Sapphire Windows & Plates - Random Orientation

UQG Optics Sapphire optical Windows random are extremely hard and scratch resistant, useful for their (UV) ultraviolet, (VIS) visible and (IR) infrared transmission. The material can withstand very high temperatures and also resistant to chemical acids/alkaline, high pressure and strong vacuum environments. The random optical material is cut to a random optical axis and is birefringent. For higher optical applications you can use ‘C’ cut, ‘Z’ cut or 0° plane cut Sapphire. Additional grades of material include fluorescence free and UV. Used throughout scientific and industrial industries from gas and oil viewports to medical instruments.

These windows are ideal for harsh conditions and suitable for many other applications like sensors, cover lenses, viewports, pressure windows and subsea imaging systems.

Our Sapphire windows & plates are stocked in many sizes with the option to custom make to a desired specification including AR coatings.

Please contact our sales team.

Dimensions: Diameters 2.50mm to 230mm
Squares/Rectangles 1mm x 1mm to 210mm x 210mm
Thickness Range: 0.10mm to 150mm (subject to dimension)
Dimension/Thickness: Tol up to 0.02mm
Edge Finish: Ground or polished
Surface Quality: 80/50 to 20/10 scratch/dig
Surface Flatness: Up to lambda 4 (@633nm)
Parallelism: Up to 1 arc min
Orientation: Up to ± 2°

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

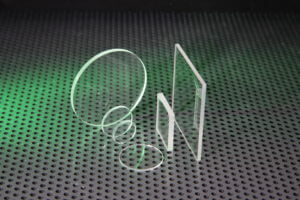

Sapphire Windows & Plates Random Orientation Stock
Material:
Sapphire - Monocrystalline
Optical-Random Orientation
Dimension Tolerance:
Diameters +0.00/ -0.10mm
Squares ±0.10mm
Thickness Tolerance:
± 0.10mm (0.50mm thick ± 0.05mm)
Edge Thickness:
Fine ground
Surface Quality:
60/40 Scratch/Dig
Surface Flatness:
Diameters ≤ 5 fringes (@633nm)
Squares ≤ 10 fringes (@633nm)
Parallelism:
≤ 3 Arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

currency flag select GBP currency flag select EUR currency flag select USD
Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
excl. VAT
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
WSR-041 PDF Sapphire Window-Random Ø 41 £7.50
QTY
Added to Quote
WSR-025 PDF Sapphire Window-Random Ø 2.501 £14.00
QTY
Added to Quote
WSR-051 PDF Sapphire Window-Random Ø 51 £7.80
QTY
Added to Quote
WSR-052 PDF Sapphire Window-Random Ø 52 £7.50
QTY
Added to Quote
WSR-061 PDF Sapphire Window-Random Ø 61 £11.50
QTY
Added to Quote
WSR-065 PDF Sapphire Window-Random Ø 6.20.50 £11.00
QTY
Added to Quote
WSR-101 PDF Sapphire Window-Random Ø 101 £9.80
QTY
Added to Quote
WSR-102 PDF Sapphire Window-Random Ø 102 £10.50
QTY
Added to Quote
WSR-1251 PDF Sapphire Window-Random Ø 12.501 £11.50
QTY
Added to Quote
WSR-1252 PDF Sapphire Window-Random Ø 12.502 £16.00
QTY
Added to Quote
WSR-127 PDF Sapphire Window-Random Ø 12.71 £15.00
QTY
Added to Quote
WSR-151 PDF Sapphire Window-Random Ø 151 £11.00
QTY
Added to Quote
WSR-155 PDF Sapphire Window-Random Ø 151.50 £23.00
QTY
Added to Quote
WSR-152 PDF Sapphire Window-Random Ø 152 £12.00
QTY
Added to Quote
WSR-201 PDF Sapphire Window-Random Ø 201 £21.00
QTY
Added to Quote
WSR-202 PDF Sapphire Window-Random Ø 202 £20.00
QTY
Added to Quote
WSR-251 PDF Sapphire Window-Random Ø 251 £21.00
QTY
Added to Quote
WSR-252 PDF Sapphire Window-Random Ø 252 £24.00
QTY
Added to Quote
WSR-253 PDF Sapphire Window-Random Ø 253 £26.00
QTY
Added to Quote
WSR-2545 PDF Sapphire Window-Random Ø 25.400.50 £26.00
QTY
Added to Quote
WSR-2541 PDF Sapphire Window-Random Ø 25.401 £26.80
QTY
Added to Quote
WSR-2542 PDF Sapphire Window-Random Ø 25.402 £27.00
QTY
Added to Quote
WSR-301 PDF Sapphire Window-Random Ø 301 £33.00
QTY
Added to Quote
WSR-302 PDF Sapphire Window-Random Ø 302 £35.00
QTY
Added to Quote
WSR-303 PDF Sapphire Window-Random Ø 303 £38.00
QTY
Added to Quote
WSR-352 PDF Sapphire Window-Random Ø 352 £68.00
QTY
Added to Quote
WSR-402 PDF Sapphire Window-Random Ø 402 £52.00
QTY
Added to Quote
WSR-501 PDF Sapphire Window-Random Ø 501 £59.00
QTY
Added to Quote
WSR-502 PDF Sapphire Window-Random Ø 502 £68.00
QTY
Added to Quote
WSR-503 PDF Sapphire Window-Random Ø 503 £72.00
QTY
Added to Quote
WSR-603 PDF Sapphire Window-Random Ø 603 £180.00
QTY
Added to Quote
WSR-733 PDF Sapphire Window-Random Ø 733 £190.00
QTY
Added to Quote
WSR-752 PDF Sapphire Window-Random Ø 752 £240.00
QTY
Added to Quote
WSR-1003 PDF Sapphire Window-Random Ø 1003 £520.00
QTY
Added to Quote
PSR-055 PDF Sapphire Plate-Random 5 x 51 £8.90
QTY
Added to Quote
PSR-1101 PDF Sapphire Plate-Random 10 x 101 £17.00
QTY
Added to Quote
PSR-1515 PDF Sapphire Plate-Random 15 x 151 £21.00
QTY
Added to Quote
PSR-251 PDF Sapphire Plate-Random 25 x 251 £39.00
QTY
Added to Quote
PSR-252 PDF Sapphire Plate-Random 25 x 252 £44.00
QTY
Added to Quote
PSR-5005 PDF Sapphire Plate-Random 50 x 500.50 £110.00
QTY
Added to Quote
PSR-5051 PDF Sapphire Plate-Random 50 x 501 £115.00
QTY
Added to Quote
PSR-5052 PDF Sapphire Plate-Random 50 x 502 £160.00
QTY
Added to Quote

Part Number

WSR-041

Sapphire Window-Random

PDF Data sheet

Dimensions (mm) Ø 4

Thickness (mm) 1

UNIT PRICE (1-10)

£7.50 Inc. VAT

QTY

Part Number

WSR-025

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 2.50

UNIT PRICE (1-10)

£14.00 Inc. VAT

QTY

Part Number

WSR-051

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 5

Focal Length (mm) 0

UNIT PRICE (1-10)

£7.80 Inc. VAT

QTY

Part Number

WSR-052

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 5

Focal Length (mm) 0

UNIT PRICE (1-10)

£7.50 Inc. VAT

QTY

Part Number

WSR-061

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 6

UNIT PRICE (1-10)

£11.50 Inc. VAT

QTY

Part Number

WSR-065

Sapphire Window-Random

PDF Data sheet

Dimensions (mm) Ø 6.2

Thickness (mm) 0.50

UNIT PRICE (1-10)

£11.00 Inc. VAT

QTY

Part Number

WSR-101

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 10

Focal Length (mm) 0

UNIT PRICE (1-10)

£9.80 Inc. VAT

QTY

Part Number

WSR-102

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 10

Focal Length (mm) 0

UNIT PRICE (1-10)

£10.50 Inc. VAT

QTY

Part Number

WSR-1251

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 12.50

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.50 Inc. VAT

QTY

Part Number

WSR-1252

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.50

Focal Length (mm) 0

UNIT PRICE (1-10)

£16.00 Inc. VAT

QTY

Part Number

WSR-127

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 12.7

Focal Length (mm) 0

UNIT PRICE (1-10)

£15.00 Inc. VAT

QTY

Part Number

WSR-151

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 15

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

QTY

Part Number

WSR-155

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1.50

Dimensions (mm) Ø 15

Focal Length (mm) 0

UNIT PRICE (1-10)

£23.00 Inc. VAT

QTY

Part Number

WSR-152

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 15

Focal Length (mm) 0

UNIT PRICE (1-10)

£12.00 Inc. VAT

QTY

Part Number

WSR-201

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 20

Focal Length (mm) 0

UNIT PRICE (1-10)

£21.00 Inc. VAT

QTY

Part Number

WSR-202

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 20

Focal Length (mm) 0

UNIT PRICE (1-10)

£20.00 Inc. VAT

QTY

Part Number

WSR-251

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-10)

£21.00 Inc. VAT

QTY

Part Number

WSR-252

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-10)

£24.00 Inc. VAT

QTY

Part Number

WSR-253

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-10)

£26.00 Inc. VAT

QTY

Part Number

WSR-2545

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 0.50

Dimensions (mm) Ø 25.40

Focal Length (mm) 0

UNIT PRICE (1-10)

£26.00 Inc. VAT

QTY

Part Number

WSR-2541

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 25.40

Focal Length (mm) 0

UNIT PRICE (1-10)

£26.80 Inc. VAT

QTY

Part Number

WSR-2542

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25.40

UNIT PRICE (1-10)

£27.00 Inc. VAT

QTY

Part Number

WSR-301

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 30

UNIT PRICE (1-10)

£33.00 Inc. VAT

QTY

Part Number

WSR-302

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 30

Focal Length (mm) 0

UNIT PRICE (1-10)

£35.00 Inc. VAT

QTY

Part Number

WSR-303

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 30

UNIT PRICE (1-10)

£38.00 Inc. VAT

QTY

Part Number

WSR-352

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 35

Focal Length (mm) 0

UNIT PRICE (1-10)

£68.00 Inc. VAT

QTY

Part Number

WSR-402

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 40

Focal Length (mm) 0

UNIT PRICE (1-10)

£52.00 Inc. VAT

QTY

Part Number

WSR-501

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-10)

£59.00 Inc. VAT

QTY

Part Number

WSR-502

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-10)

£68.00 Inc. VAT

QTY

Part Number

WSR-503

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-10)

£72.00 Inc. VAT

QTY

Part Number

WSR-603

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 60

UNIT PRICE (1-10)

£180.00 Inc. VAT

QTY

Part Number

WSR-733

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 73

UNIT PRICE (1-10)

£190.00 Inc. VAT

QTY

Part Number

WSR-752

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 75

UNIT PRICE (1-10)

£240.00 Inc. VAT

QTY

Part Number

WSR-1003

Sapphire Window-Random

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 100

UNIT PRICE (1-10)

£520.00 Inc. VAT

QTY

Part Number

PSR-055

Sapphire Plate-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 5 x 5

Focal Length (mm) 0

UNIT PRICE (1-10)

£8.90 Inc. VAT

QTY

Part Number

PSR-1101

Sapphire Plate-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 10 x 10

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.00 Inc. VAT

QTY

Part Number

PSR-1515

Sapphire Plate-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 15 x 15

UNIT PRICE (1-10)

£21.00 Inc. VAT

QTY

Part Number

PSR-251

Sapphire Plate-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 25 x 25

Focal Length (mm) 0

UNIT PRICE (1-10)

£39.00 Inc. VAT

QTY

Part Number

PSR-252

Sapphire Plate-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 25 x 25

UNIT PRICE (1-10)

£44.00 Inc. VAT

QTY

Part Number

PSR-5005

Sapphire Plate-Random

PDF Data sheet

Thickness (mm) 0.50

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£110.00 Inc. VAT

QTY

Part Number

PSR-5051

Sapphire Plate-Random

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 50 x 50

Focal Length (mm) 0

UNIT PRICE (1-10)

£115.00 Inc. VAT

QTY

Part Number

PSR-5052

Sapphire Plate-Random

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£160.00 Inc. VAT

QTY
