For a quote on your custom requirements please send us your drawing or specification.

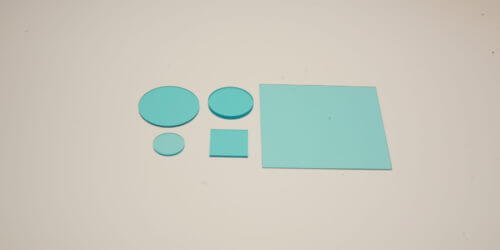

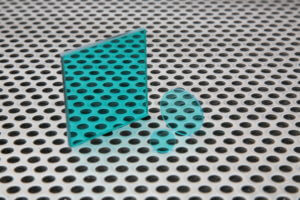

Hoya Filters - Cyan Colour Compensating

UQG Hoya Cyan Colour compensating filters selectively absorb in the red and near-infrared wavelength regions and compensates for imaging sensitivity and exposure meter sensitivity. They are widely used in sensors and camera systems.

UQG Optics stock diameters and squares and offer custom range options including additional coatings.

Please contact our sales team.

Dimensions: Diameters 4m to 160mm
Squares/Rectangles 1mm x 1mm to 165mm x 165mm
Thickness Range: 0.50mm to 4.00mm (subject to dimension)
Edge Finish: As cut/chamfered or ground
Surface Flatness: Up to lambda 4 (@633nm)
Parallelism: Up to 1 arc min
Material Options: Commercial grade, optical glass filters for larger sizes over 160mm x 160mm Low cost optical filter range for less demanding applications (data sheet on request)
Coating Options: MgF2 protective coatings, AR coatings, bandpass & blocking optical coatings
Options: Additional filter types, combination of 2 laminated filters, toughening, storage boxes, mounts & holders, calibration certificates, identification labels & transmission curves

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
HOYA® Filter Glass
Dimension Tolerance:
+0.00 / -0.20mm
Thickness Tolerance:
± 0.10mm
Edge Finish:
Fine ground
Surface Quality:
60/40 Scratch/Dig
Surface Flatness:
≤ 5 fringes
Parallelism:
≤ 3 arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
HCM-5005 PDF Hoya CM-500 Ø 12.51 £18.00
QTY
Added. View quote
HCM-5025 PDF Hoya CM-500 Ø 251 £34.00
QTY
Added. View quote
HCM-5050 PDF Hoya CM-500 50 x 501 £49.00
QTY
Added. View quote
HEC-5005 PDF Hoya E-CM500S Ø 12.51 £18.00
QTY
Added. View quote
HEC-5025 PDF Hoya E-CM500S Ø 251 £34.00
QTY
Added. View quote
HEC-5050 PDF Hoya E-CM500S 50 x 501 £49.00
QTY
Added. View quote

Part Number

HCM-5005

Hoya CM-500

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 12.5

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

HCM-5025

Hoya CM-500

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£34.00 Inc. VAT

QTY

Part Number

HCM-5050

Hoya CM-500

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£49.00 Inc. VAT

QTY

Part Number

HEC-5025

Hoya E-CM500S

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£34.00 Inc. VAT

QTY

Part Number

HEC-5005

Hoya E-CM500S

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 12.5

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

HEC-5050

Hoya E-CM500S

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£49.00 Inc. VAT

QTY
