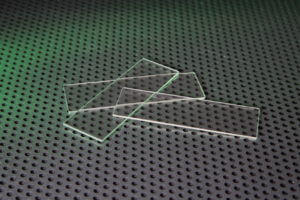

Hi Refractive Index Microscope Slides

UQG Optics Hi index microscope slides are made for certain laboratory research applications when a high refractive index glass is required. These slides are cut and polished from optical glass block materials from a range of selective optical glasses higher than the standard index of 1.51nd which is more commonly used. The refractive index can range from 1.60nd to 1.90nd with a wide range of index’s from manufacturers including Schott and O’hara. These materials are not just limited for microscope slides, as they are also  made into cover slips to precise thicknesses to allow for the refraction of light transmission.

A range of additional refractive indexes are available through our custom range made to your precise size and specification.

Please contact our sales team.

Dimensions: Squares/Rectangles 5mm x 5mm to 100mm x 100mm
Thickness Range: 0.50mm to 2mm
Surface Quality: 80/50 to 20/10 scratch/dig or diffused/ground
Surface Flatness: Up to 1 fringe (@633nm)
Material Options: Schott & Ohara optical index's from 1.50 to 1.90 nd
Coating Options: AR coatings
Options: Squares, edges polished & labelled

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Ohara Optical Glass
Dimension Tolerance:
± 0.20mm
Thickness Tolerance:
± 0.10mm
Edge Finish:
Ground & chamfered
Surface Quality:
60/40 Scratch/Dig
Surface Flatness:
≤ 5 Fringes (@633nm)
Parallelism:
≤ 3 Arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Ref. IndexThickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
MHI-7616 PDF Hi Ref Index Microscope Slide 76 x 261.601 £42.00
QTY
Added. View quote
MHI-7617 PDF Hi Ref Index Microscope Slide 76 x 261.701 £42.00
QTY
Added. View quote
MHI-7618 PDF Hi Ref Index Microscope Slide 76 x 251.801 £42.00
QTY
Added. View quote

Part Number

MHI-7616

Hi Ref Index Microscope Slide

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 76 x 26

Ref. Index 1.60

UNIT PRICE (1-50)

£42.00 Inc. VAT

QTY

Part Number

MHI-7617

Hi Ref Index Microscope Slide

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 76 x 26

Ref. Index 1.70

UNIT PRICE (1-50)

£42.00 Inc. VAT

QTY

Part Number

MHI-7618

Hi Ref Index Microscope Slide

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 76 x 25

Ref. Index 1.80

UNIT PRICE (1-50)

£42.00 Inc. VAT

QTY
