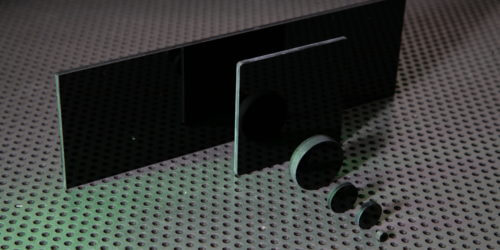

Hoya Filters - Infrared Transmitting

UQG Hoya Infrared Transmitting Filters absorb most of the visible region and transmit the infrared region. They have different lambda C values to transmission (50% transmission) from 715nm to 1000nm. The transmission can also be shifted with different thicknesses and AR coatings. They are economical infrared transmission filter and can also be toughened for more demanding environments. They are widely used in scientific instruments, medical, security, cameras and light sources for purposes such as infrared warning systems and night-vision equipment.

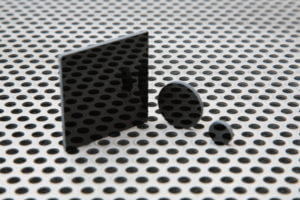

UQG Optics stock diameters and squares and offer custom range options including additional coatings.

Please contact our sales team.

Dimensions: Diameters 5mm to 160mm
Squares/Rectangles 1mm x 1mm to 165mm x 165mm
Thickness Range: 0.50mm to 8mm (subject to dimension)
Edge Finish: As cut/chamfered or ground
Surface Flatness: Up to lambda 4 (@633nm)
Parallelism: Up to 1 arc min
Material Options: Commercial grade, optical glass filters for larger sizes over 160mm x 160mm
Low cost optical filter range for less demanding applications (data sheet on request)
Coating Options: MgF2 protective coatings, AR coatings, bandpass & blocking optical coatings
Options: Additional filter types, combination of 2 laminated filters, toughening, storage boxes, mounts & holders, calibration certificates, identification labels & transmission curves

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
HOYA® Filter Glass
Dimension Tolerance:
+0.00 / -0.20mm
Thickness Tolerance:
± 0.10mm
Edge Finish:
Fine ground
Surface Quality:
60/40 Scratch/Dig
Surface Flatness:
≤ 5 Fringes (@633nm)
Parallelism:
≤ 3 Arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
HFR-7205 PDF Hoya R72 Ø 12.52.5 £14.00
QTY
Added. View quote
HFR-7225 PDF Hoya R72 Ø 252.5 £19.00
QTY
Added. View quote
HIR-7612 PDF Hoya W-IR760 Ø 12.503 £14.00
QTY
Added. View quote
HIR-7625 PDF Hoya W-IR760 Ø 253 £19.00
QTY
Added. View quote
HIR-7650 PDF Hoya W-IR760 50 x 503 £45.00
QTY
Added. View quote
HIR-8012 PDF Hoya W-IR800 Ø 12.503 £14.00
QTY
Added. View quote
HIR-8025 PDF Hoya W-IR800 Ø 253 £19.00
QTY
Added. View quote
HIR-8050 PDF Hoya W-IR800 50 x 503 £45.00
QTY
Added. View quote
HRM-9012 PDF Hoya RM90 Ø 12.502.5 £18.00
QTY
Added. View quote
HRM-9025 PDF Hoya RM90 Ø 252.5 £33.00
QTY
Added. View quote
HRM-9050 PDF Hoya RM90 50 x 502.5 £80.00
QTY
Added. View quote
HRM-1012 PDF Hoya RM100 Ø 12.502.5 £22.00
QTY
Added. View quote
HRM1025 PDF Hoya RM100 Ø 252.5 £39.00
QTY
Added. View quote
HRM-1050 PDF Hoya RM100 50 x 502.5 £90.00
QTY
Added. View quote

Part Number

HFR-7205

Hoya R72

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.5

UNIT PRICE (1-50)

£14.00 Inc. VAT

QTY

Part Number

HFR-7225

Hoya R72

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£19.00 Inc. VAT

QTY

Part Number

HIR-7612

Hoya W-IR760

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£14.00 Inc. VAT

QTY

Part Number

HIR-7625

Hoya W-IR760

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£19.00 Inc. VAT

QTY

Part Number

HIR-7650

Hoya W-IR760

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£45.00 Inc. VAT

QTY

Part Number

HIR-8012

Hoya W-IR800

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£14.00 Inc. VAT

QTY

Part Number

HIR-8025

Hoya W-IR800

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£19.00 Inc. VAT

QTY

Part Number

HIR-8050

Hoya W-IR800

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£45.00 Inc. VAT

QTY

Part Number

HRM-9012

Hoya RM90

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

HRM-9025

Hoya RM90

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£33.00 Inc. VAT

QTY

Part Number

HRM-9050

Hoya RM90

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£80.00 Inc. VAT

QTY

Part Number

HRM-1012

Hoya RM100

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£22.00 Inc. VAT

QTY

Part Number

HRM1025

Hoya RM100

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£39.00 Inc. VAT

QTY

Part Number

HRM-1050

Hoya RM100

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£90.00 Inc. VAT

QTY
