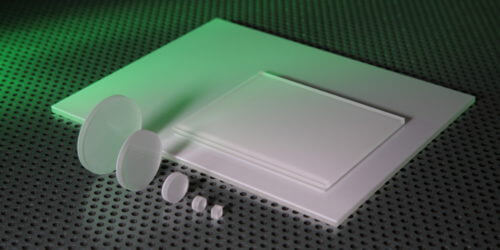

Flashed Opal Diffuser Windows & Plates

White flashed opal diffusers have one surface flashed with a white opal layer. It can produce near Lambertian source, diffusing light thoroughly with a high amount of scattering, ideal when intense diffusing is required. Layer thickness can change from batch to batch due to the manufacturing process.

Please note the Flashed Opal Glass material has been discontinued by the manufacturer and is available in limited sizes but UQG still hold significant amounts in stock. An alternative material is manufactured to give the same apperence for lighting applications.

UQG optics white flashed opal diffuser window and plates are made as diameters and squares to a standard stock range or custom made to your design.

Please contact our sales team.

Dimensions: Diameters 5mm to 100mm
Squares/Rectangles 5mm x 5mm to 100mm x 100mm
Thickness Range: 3mm & 4mm
Limited material available

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Flashed White Opal
Dimension Tolerance:
+0.00 / -0.20mm
Thickness Tolerance:
±0.30mm
Edge Finish:
Fine ground
Diffused Surface:
Opal layer
Second Surface:
80/50 Scratch/Dig
Flashed Opal Layer Thickness:
0.45mm (+0.35mm /-0.20mm)

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
DFO-1030 PDF Diffuser - Flashed Opal Ø 103 £5.50
QTY
Added. View quote
DFO-1530 PDF Diffuser - Flashed Opal Ø 153 £5.50
QTY
Added. View quote
DFO-2530 PDF Diffuser - Flashed Opal Ø 253 £6.00
QTY
Added. View quote
DFO-4030 PDF Diffuser - Flashed Opal Ø 403 £7.50
QTY
Added. View quote
DFO-5030 PDF Diffuser - Flashed Opal Ø 503 £8.50
QTY
Added. View quote
DFO-2525 PDF Diffuser - Flashed Opal 25 x 253 £9.00
QTY
Added. View quote
DFO-5050 PDF Diffuser - Flashed Opal 50 x 503 £9.80
QTY
Added. View quote

Part Number

DFO-1030

Diffuser – Flashed Opal

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 10

Focal Length (mm) 0

UNIT PRICE (1-50)

£5.50 Inc. VAT

QTY

Part Number

DFO-1530

Diffuser – Flashed Opal

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 15

Focal Length (mm) 0

UNIT PRICE (1-50)

£5.50 Inc. VAT

QTY

Part Number

DFO-2530

Diffuser – Flashed Opal

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£6.00 Inc. VAT

QTY

Part Number

DFO-4030

Diffuser – Flashed Opal

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 40

Focal Length (mm) 0

UNIT PRICE (1-50)

£7.50 Inc. VAT

QTY

Part Number

DFO-5030

Diffuser – Flashed Opal

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-50)

£8.50 Inc. VAT

QTY

Part Number

DFO-2525

Diffuser – Flashed Opal

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-50)

£9.00 Inc. VAT

QTY

Part Number

DFO-5050

Diffuser – Flashed Opal

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-50)

£9.80 Inc. VAT

QTY
