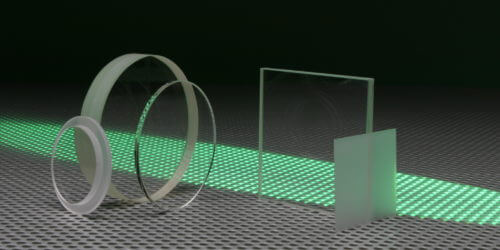

Sapphire Windows & Plates - Cut To 'C' Axis

UQG Optics ‘C’ cut axis Sapphire windows and plates are cut to the optical axis perpendicular to the plane of the crystal, this is known as ‘C’ cut, ‘Z’ cut or 0° plane cut Sapphire. This material is better suited for highly optical and mechanical applications due to random being moderately birefringent.  Extremely hard and has a good transmission from the ultraviolet to the mid infrared ideal for optical and high demanding mechanical applications. These windows and plates are used in analytical, medical instruments, camera systems, optical instruments and industrial applications.

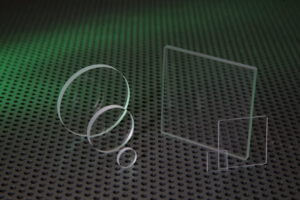

UQG Optics stock Sapphire windows & plates ‘C’ cut axis are stock in many sizes with the option to custom make to a desired specification including AR coatings.

Please contact our sales team.

Dimensions: Diameters 3.50mm to 145mm
Squares/Rectangles 1mm x 1mm to 100mm x 100mm
Thickness Range: 0.10mm to 20mm (subject to dimension)
Dimension/Thickness: Tol up to 0.02mm
Edge Finish: Ground or polished
Surface Quality: 80/50 to 20/10 scratch/dig
Surface Flatness: Up to lambda 4 (@633nm)
Parallelism: Up to 1 arc min
Orientation: Up to ± 2°

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Sapphire - 'C' CUT AXIS/C PLANE - Optical Grade (0001)
Dimension Tolerance:
Diameters +0.00/ -0.10mm
Thickness Tolerance:
± 0.10mm
Edge Finish:
Fine ground & Chamfered
Surface Quality:
60/40 Scratch/Dig
Surface Flatness:
4-5 Fringes (@633nm)
Parallelism:
3 Arc mins
Transmission Range:
300nm to 5 microns

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Diameter (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
WSC-101 PDF Sapphire Window-'C'Axis Ø 101 £18.50
QTY
Added. View quote
WSC-102 PDF Sapphire Window-'C'Axis Ø 102 £21.80
QTY
Added. View quote
WSC-125 PDF Sapphire Window-'C'Axis Ø 12.51 £19.90
QTY
Added. View quote
WSC-151 PDF Sapphire Window-'C'Axis Ø 151 £21.00
QTY
Added. View quote
WSC-152 PDF Sapphire Window-'C'Axis Ø 152 £22.00
QTY
Added. View quote
WSC-202 PDF Sapphire Window-'C'Axis Ø 202 £29.00
QTY
Added. View quote
WSC-251 PDF Sapphire Window-'C'Axis Ø 251 £28.00
QTY
Added. View quote
WSC-252 PDF Sapphire Window-'C'Axis Ø 252 £32.00
QTY
Added. View quote
WSC-253 PDF Sapphire Window-'C'Axis Ø 253 £38.00
QTY
Added. View quote
WSC-302 PDF Sapphire Window-'C'Axis Ø 302 £46.00
QTY
Added. View quote
WSC-402 PDF Sapphire Window-'C'Axis Ø 402 £52.00
QTY
Added. View quote
WSC-501 PDF Sapphire Window-'C'Axis Ø 501 £63.00
QTY
Added. View quote
WSC-502 PDF Sapphire Window-'C'Axis Ø 502 £65.00
QTY
Added. View quote
WSC-503 PDF Sapphire Window-'C'Axis Ø 503 £83.00
QTY
Added. View quote
PSC-2521 PDF Sapphire Plate - 'C' Axis 25 x 251 £45.00
QTY
Added. View quote
PSC-2522 PDF Sapphire Plate- 'C' Axis 25 x 252 £49.00
QTY
Added. View quote
PSC-5055 Sapphire Plate 'C' Axis 50 x 500.50 £135.00
QTY
Added. View quote
PSC-5051 PDF Sapphire Plate- 'C' Axis 50 x 501 £150.00
QTY
Added. View quote
PSC-5052 PDF Sapphire Plate 'C' Axis 50 x 502 £190.00
QTY
Added. View quote

Part Number

WSC-101

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 10

Thickness (mm) 1

UNIT PRICE (1-50)

£18.50 Inc. VAT

QTY

Part Number

WSC-102

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 10

Thickness (mm) 2

UNIT PRICE (1-50)

£21.80 Inc. VAT

QTY

Part Number

WSC-125

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 12.5

Thickness (mm) 1

UNIT PRICE (1-50)

£19.90 Inc. VAT

QTY

Part Number

WSC-151

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 15

Thickness (mm) 1

UNIT PRICE (1-50)

£21.00 Inc. VAT

QTY

Part Number

WSC-152

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 15

Thickness (mm) 2

UNIT PRICE (1-50)

£22.00 Inc. VAT

QTY

Part Number

WSC-202

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 20

Thickness (mm) 2

UNIT PRICE (1-50)

£29.00 Inc. VAT

QTY

Part Number

WSC-251

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 1

UNIT PRICE (1-50)

£28.00 Inc. VAT

QTY

Part Number

WSC-252

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 2

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

WSC-253

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 3

UNIT PRICE (1-50)

£38.00 Inc. VAT

QTY

Part Number

WSC-302

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 30

Thickness (mm) 2

UNIT PRICE (1-50)

£46.00 Inc. VAT

QTY

Part Number

WSC-402

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 40

Thickness (mm) 2

UNIT PRICE (1-50)

£52.00 Inc. VAT

QTY

Part Number

WSC-501

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 50

Thickness (mm) 1

UNIT PRICE (1-50)

£63.00 Inc. VAT

QTY

Part Number

WSC-502

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 50

Thickness (mm) 2

UNIT PRICE (1-50)

£65.00 Inc. VAT

QTY

Part Number

WSC-503

Sapphire Window-‘C’Axis

PDF Data sheet

Diameter (mm) Ø 50

Thickness (mm) 3

UNIT PRICE (1-50)

£83.00 Inc. VAT

QTY

Part Number

PSC-2521

Sapphire Plate – ‘C’ Axis

PDF Data sheet

Diameter (mm) 25 x 25

Thickness (mm) 1

UNIT PRICE (1-50)

£45.00 Inc. VAT

QTY

Part Number

PSC-2522

Sapphire Plate- ‘C’ Axis

PDF Data sheet

Diameter (mm) 25 x 25

Thickness (mm) 2

UNIT PRICE (1-50)

£49.00 Inc. VAT

QTY

Part Number

PSC-5055

Sapphire Plate ‘C’ Axis

Diameter (mm) 50 x 50

Thickness (mm) 0.50

UNIT PRICE (1-50)

£135.00 Inc. VAT

QTY

Part Number

PSC-5051

Sapphire Plate- ‘C’ Axis

PDF Data sheet

Diameter (mm) 50 x 50

Thickness (mm) 1

UNIT PRICE (1-50)

£150.00 Inc. VAT

QTY

Part Number

PSC-5052

Sapphire Plate ‘C’ Axis

PDF Data sheet

Diameter (mm) 50 x 50

Thickness (mm) 2

UNIT PRICE (1-50)

£190.00 Inc. VAT

QTY
