For a quote on your custom requirements please send us your drawing or specification.

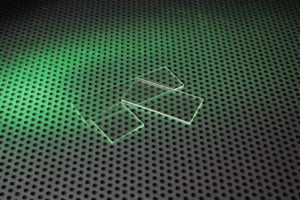

Sapphire Microscope Slides

UQG Optics Sapphire Microscope slides are supplied in standard laboratory sizes. Sapphire has extremely high melting temperature of 2030°C and hardness of 9 mohs. This makes them a robust slide and also useful for their optical properties and chemically resistance to acid and alkali but not to hydrofluoric acid. Sapphire microscope slides are produced from 0.50mm to 1mm thick or if you need thinner we have a stock range of Sapphire coverslips or can produce them as thin as 0.05mm thick. Used for laboratories in universities, analytical research, biomedical and R&D research.

UQG Optics stock Sapphire Microscope slides in various dimensions or can custom made to custom sizes.

Please contact our sales team.

Dimensions: Squares/Rectangles 1mm x 1mm to 100mm x 100mm
Thickness Range: 0.50mm to 2mm thick (subject to dimension)
Material Options: Cut to 'C' axis

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Sapphire-Optical-Random Orientation
Dimension Tolerance:
±0.10mm
Thickness Tolerance:
+/-0.10mm
Edge Finish:
Fine ground
Surface Quality:
80/50 to 20/10 scratch/dig
Surface Flatness:
≤ 10 Fringes (@633nm)
Parallelism:
≤ 3 Arc mins
Transmission Range:
300nm to 5 Microns
Parts sold as single items

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
SMS-2521 PDF Sapphire Microscope Slide 25 x 251 £39.00
QTY
Added. View quote
SMS-5025 PDF Sapphire Microscope Slide 50 x 251 £65.00
QTY
Added. View quote
SMS-7521 PDF Sapphire Microscope Slide 75 x 251 £82.00
QTY
Added. View quote

Part Number

SMS-2521

Sapphire Microscope Slide

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£39.00 Inc. VAT

QTY

Part Number

SMS-5025

Sapphire Microscope Slide

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 50 x 25

UNIT PRICE (1-50)

£65.00 Inc. VAT

QTY

Part Number

SMS-7521

Sapphire Microscope Slide

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 75 x 25

UNIT PRICE (1-50)

£82.00 Inc. VAT

QTY
