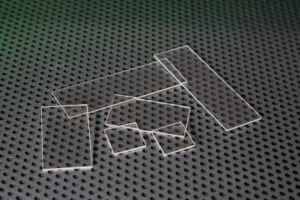

Fused Quartz Microscope Slides

Fused Quartz microscope slides are made of a high purity fused Quartz. Used for microscopy and laboratory research when UV transparency in needed. The Fused Quartz is suited for higher temperature applications up to 1100°C and improved optical performance with low absorption. Fused Quartz microscope slides are stocked in a range of standard laboratory sizes, they are also custom made to other dimensions and thicknesses.

For higher purity and increased UV in microscopy, UV Fused Silica is used which is fluorescent free and transmits down to 180nm.

Please contact our sales team.

Dimensions: 1mm x 1mm to 150mm x 150mm
Thickness Range: 0.5mm to 3mm
Surface Quality: 80/50 to 20/10 scratch/dig
Surface Roughness: < 1nm

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Heraeus HOQ310 or Standard Fused Quartz
Thickness Specification:
±0.10 mm thick
Edge Finish:
Fine ground
Surface Quality:
40/20 Scratch/Dig
Surface Flatness:
≤ 10 Fringes (@633nm)
Parallelism:
≤ 5 Arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
FQM-2521 PDF Fused Quartz Microscope Slide 25 x 251 £10.00
QTY
Added. View quote
FQM-5025 PDF Fused Quartz Microscope Slide 50 x 251 £13.00
QTY
Added. View quote
FQM-7521 PDF Fused Quartz Microscope Slide 75 x 251 £14.00
QTY
Added. View quote

Part Number

FQM-2521

Fused Quartz Microscope Slide

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

FQM-5025

Fused Quartz Microscope Slide

PDF Data sheet

Dimensions (mm) 50 x 25

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£13.00 Inc. VAT

QTY

Part Number

FQM-7521

Fused Quartz Microscope Slide

PDF Data sheet

Dimensions (mm) 75 x 25

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£14.00 Inc. VAT

QTY
