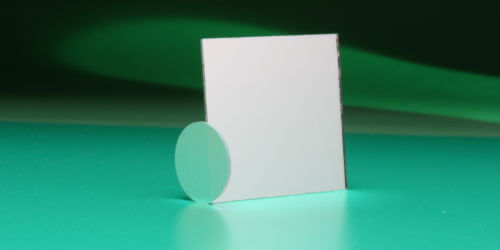

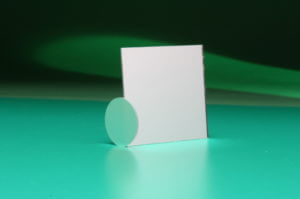

Cold Mirrors

UQG Cold Mirrors are suited for high power illumination systems when high temperature lighting is not desired. Separating the heat from light radiation they reflect visible light and transmit the infrared dividing the IR and visible more sharply. They can made for 0° and 45° incidence cut from large standard sheets or precision made on a full range of materials.

Widely used in optical and photonic imaging systems and often used for transmitting the near infrared spectrum.

UQG optics can offer a range of stock sizes and can custom make up to 400m dia and 300mm squares/rectangles with various coating options.

Please contact our sales team.

Dimensions: Diameters 5mm to 400mm
Squares/Rectangles 1mm x 1mm to 300mm x 300mm
Thickness Range: 1.10mm to 3.00mm
Coating Options: AOI 0° & 45° & custom Cold Mirror wavelengths

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Borosilicate Coated Glass CM-05
Dimension Tolerance:
Diameters +0.00/-0.20mm
Thickness Tolerance:
Diameters ±0.10mm
Squares ±0.20mm
Edge Finish:
Diameters ground squares as cut/chamfered
Spectral Data::
VIS Reflection 400-700nm Ravg.≥97%
IR Transmission 750-2500nm Tavg.≥88%
Transmission 50% @ 740 (±10nm)
Angle of Incidence:

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
CMK-2510 PDF Cold Mirror Ø 251.10 £21.00
QTY
Added. View quote
CMK-5051 PDF Cold Mirror 50 x 501.10 £32.00
QTY
Added. View quote

Part Number

CMK-5051

Cold Mirror

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1.10

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

CMK-2510

Cold Mirror

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£21.00 Inc. VAT

QTY
