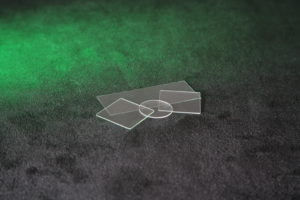

UV Fused Silica Coverslips

UQG Optics supply UV Fused Silica Coverslips. The material is very high purity with enhanced UV & VUV transparency transmitting from 160nm to over 2 microns useful for UV confocal and UV microscopy. The coverslips will be fluorescence free and can withstand temperatures over 1000°C making it useful for high temperature microscope stages. The surfaces have very smooth micro roughness. Used in UV microscopes for UV spectroscopy and cell research in laboratories, they are supplied to universities, colleges, biomedical, analytical research and R&D research.

Custom sizes are made in larger sizes listed with additional custom thicknesses on request.

Please contact our sales team.

View RoHS Statement

DIMENSIONS:	Diameters 5mm to 100mm
	Squares/Rectangles 1mm x 1mm to 60mm x 60mm/1mm x 1mm to 100mm x 100mm
THICKNESS RANGE:	0.1mm to 1.5mm Coverslips (subject to dimension)
MATERIAL OPTIONS:	Corning 7980 class O grade F & Heraeus Spectrosil 2000®

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

MATERIAL:

UV Fused Silica - Heraeus Spectrosil 2000® or equivalent

DIMENSION TOLERANCE:

±0.20mm

THICKNESS SPECIFICATION:

#No0 0.10mm thick 0.075/0.125

#No1 0.15mm thick 0.13/0.17mm thick

#No1.5 0.17mm thick 0.16/0.19mm thick

#No2 0.20mm thick 0.18/0.25mm thick

0.50mm thick (+/-.05mm) thick

EDGE FINISH:

Fine ground

SURFACE QUALITY:

40/20 Scratch/Dig

SURFACE FLATNESS:

≤ 5 Fringes (@633nm)

PARALLELISM:

≤ 3 Arc mins

Parts sold as single items

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

Part No	Data sheet	Description	Dimensions (mm)	Thickness (mm)	Unit price (1-10) excl. VAT	Qty	Qty (10+)Volume pricing available for 10+, please add to quote.
CFS-1010	PDF	UV Coverslip #No0	Ø 10	0.10	£24.90	QTY UV Coverslip #No0 quantity	Added to Quote
CFS-1015	PDF	UV Coverslip #No1	Ø 10	0.15	£22.80	QTY UV Coverslip #No1 quantity	Added to Quote
CFS-1017	PDF	UV Coverslip #No1.5	Ø 10	0.17	£23.50	QTY UV Coverslip #No1.5 quantity	Added to Quote
CFS-1020	PDF	UV Coverslip #No2	Ø 10	0.20	£14.70	QTY UV Coverslip #No2 quantity	Added to Quote
CFS-1050	PDF	UV Coverslip #No5	Ø 10	0.50	£11.90	QTY UV Coverslip #No5 quantity	Added to Quote
CFS-1250	PDF	UV Coverslip #No5	Ø 12	0.50	£16.50	QTY UV Coverslip #No5 quantity	Added to Quote
CFS-1520	PDF	UV Coverslip #No2	Ø 15	0.20	£18.50	QTY UV Coverslip #No2 quantity	Added to Quote
CFS-1550	PDF	UV Coverslip #No5	Ø 15	0.50	£18.50	QTY UV Coverslip #No5 quantity	Added to Quote
CFS-2050	PDF	UV Coverslip #No5	Ø 20	0.50	£21.00	QTY UV Coverslip #No5 quantity	Added to Quote
CFS-2207	PDF	UV Coverslip #No1.5	Ø 22	0.17	£36.00	QTY UV Coverslip #No1.5 quantity	Added to Quote
CFS-2501	PDF	UV Coverslip #No0	Ø 25	0.10	£54.00	QTY UV Coverslip #No0 quantity	Added to Quote
CFS-2515	PDF	UV Coverslip #No1	Ø 25	0.15	£39.00	QTY UV Coverslip #No1 quantity	Added to Quote
CFS-2571	PDF	UV Coverslip #No1.5	Ø 25	0.17	£45.00	QTY UV Coverslip #No1.5 quantity	Added to Quote
CFS-2520	PDF	UV Coverslip #No2	Ø 25	0.20	£28.50	QTY UV Coverslip #No2 quantity	Added to Quote
CFS-2555	PDF	UV Coverslip #No5	Ø 25	0.50	£23.00	QTY UV Coverslip #No5 quantity	Added to Quote
CFS-2217	PDF	UV Coverslip #No1.5	22 x 22	0.17	£39.00	QTY UV Coverslip #No1.5 quantity	Added to Quote
CFS-2510	PDF	UV Coverslip #No0	25 x 25	0.10	£62.40	QTY UV Coverslip #No0 quantity	Added to Quote
CFS-2557	PDF	UV Coverslip #No1	25 x 25	0.15	£41.00	QTY UV Coverslip #No1 quantity	Added to Quote
CFS-2517	PDF	UV Coverslip #No1.5	25 x 25	0.17	£49.00	QTY UV Coverslip #No1.5 quantity	Added to Quote
CFS-2550	PDF	UV Coverslip #No2	25 x 25	0.20	£29.80	QTY UV Coverslip #No2 quantity	Added to Quote
CFS-2553	PDF	UV Coverslip #No3	25 x 25	0.30	£28.00	QTY UV Coverslip #No3 quantity	Added to Quote
CFS-2525	PDF	UV Coverslip #No5	25 x 25	0.50	£27.00	QTY UV Coverslip #No5 quantity	Added to Quote
CFS-5217	PDF	UV Coverslip #No1.5	50 x 24	0.17	£95.00	QTY UV Coverslip #No1.5 quantity	Added to Quote
CFS-5215	PDF	UV Coverslip #No1	50 x 24	0.15	£95.00	QTY UV Coverslip #No1 quantity	Added to Quote
CFS-6242	PDF	UV Coverslip #No2	60 x 24	0.20	£98.00	QTY UV Coverslip #No2 quantity	Added to Quote

Part Number

CFS-1010

UV Coverslip #No0

PDF Data sheet

Thickness (mm) 0.10

Dimensions (mm) Ø 10

Focal Length (mm) 0

UNIT PRICE (1-10)

£24.90 Inc. VAT

Part Number

CFS-1015

UV Coverslip #No1

PDF Data sheet

Thickness (mm) 0.15

Dimensions (mm) Ø 10

UNIT PRICE (1-10)

£22.80 Inc. VAT

Part Number

CFS-1017

PDF Data sheet

Thickness (mm) 0.20

Dimensions (mm) Ø 15

UNIT PRICE (1-10)

£18.50 Inc. VAT

Part Number

CFS-1550

UV Coverslip #No5

PDF Data sheet

Thickness (mm) 0.50

Dimensions (mm) Ø 15

Focal Length (mm) 0

UNIT PRICE (1-10)

£18.50 Inc. VAT

Part Number

CFS-2050

UV Coverslip #No5

PDF Data sheet

Thickness (mm) 0.50

Dimensions (mm) Ø 20

Focal Length (mm) 0

UNIT PRICE (1-10)

£21.00 Inc. VAT

Part Number

CFS-2207

PDF Data sheet

Thickness (mm) 0.17

Dimensions (mm) 22 x 22

UNIT PRICE (1-10)

£39.00 Inc. VAT

Part Number

CFS-2510

UV Coverslip #No0

PDF Data sheet

Thickness (mm) 0.10

Dimensions (mm) 25 x 25

UNIT PRICE (1-10)

£62.40 Inc. VAT

Part Number

CFS-2557

UV Coverslip #No1

PDF Data sheet

Thickness (mm) 0.15

Dimensions (mm) 25 x 25

UNIT PRICE (1-10)

£41.00 Inc. VAT

Part Number

CFS-2517

UV Coverslip #No1.5

PDF Data sheet

Thickness (mm) 0.17

Dimensions (mm) 25 x 25

UNIT PRICE (1-10)

£49.00 Inc. VAT

Part Number

CFS-2550

UV Coverslip #No2

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 0.20

Focal Length (mm) 0

UNIT PRICE (1-10)

£29.80 Inc. VAT

Part Number

CFS-2553

UV Coverslip #No3

PDF Data sheet

Thickness (mm) 0.30

Dimensions (mm) 25 x 25

UNIT PRICE (1-10)

£28.00 Inc. VAT

Part Number

CFS-2525

UV Coverslip #No5

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 0.50

Focal Length (mm) 0

UNIT PRICE (1-10)

£27.00 Inc. VAT

Part Number

CFS-5217

UV Coverslip #No1.5

PDF Data sheet

Dimensions (mm) 50 x 24

Thickness (mm) 0.17

UNIT PRICE (1-10)

£95.00 Inc. VAT

Part Number

CFS-5215

UV Coverslip #No1

PDF Data sheet

Thickness (mm) 0.15

Dimensions (mm) 50 x 24

UNIT PRICE (1-10)

£95.00 Inc. VAT

Part Number

CFS-6242

UV Coverslip #No2

PDF Data sheet

Thickness (mm) 0.20

Dimensions (mm) 60 x 24

UNIT PRICE (1-10)

£98.00 Inc. VAT

UV Fused Silica Coverslips

Select Your Currency:

UV Coverslip #No0

UV Coverslip #No1

UV Coverslip #No1.5

UV Coverslip #No2

UV Coverslip #No5

UV Coverslip #No5

UV Coverslip #No2

UV Coverslip #No5

UV Coverslip #No5

UV Coverslip #No1.5

UV Coverslip #No0

UV Coverslip #No1

UV Coverslip #No1.5

UV Coverslip #No2

UV Coverslip #No5

UV Coverslip #No1.5

UV Coverslip #No0

UV Coverslip #No1

UV Coverslip #No1.5

UV Coverslip #No2

UV Coverslip #No3

UV Coverslip #No5

UV Coverslip #No1.5

UV Coverslip #No1

UV Coverslip #No2
