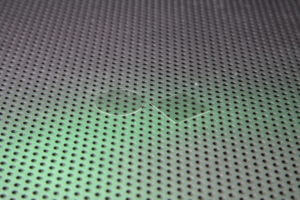

ITO Fused Quartz Cover Slips

UQG Optics ITO Coated Fused Quartz Cover Slips are standard optically polished Fused Quartz coverslips deposited with an ITO layer one side. The Fused Quartz has good purity and higher transmission than standard glass ITO Coverslips. It can withstand temperatures of 1000°C and are very robust. In some experiments or applications a purer Fused Quartz material is required so a good option is UV Fused Silica, this can be custom ITO Coated from a range of standard stock UV Fused Silica Cover slips.

UQG Optics stock ITO Coated Fused Quartz Cover Slips in a range of sizes with an option to custom make in Sapphire or Fused Silica.

Please contact our sales team.

Dimensions: Diameters 5mm to 150mm
Squares/Rectangles 1mm x 1mm to 150mm x 150mm
Thickness Range: 0.10mm to 6mm
Material Options: Fused Silica & Sapphire
Coating Options: Additional standard resistivity's & AR coatings

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Heraeus Quartz HOQ310
Dimension Tolerance:
+0.00/ -0.10mm
Thickness Tolerance:
0.5mm (±0.05mm) 0.20mm (+0.05/-0.02mm) 0.15mm (±0.02mm) 0.17mm (+0.02/0.01mm)
Edge Finish:
Fine ground
Surface Quality:
40/20 Scratch/Dig
Surface Flatness:
≤ 5 Fringes (@633nm)
Parallelism:
≤ 3 Arc mins
Coatings:
ITO coating one side
Resistivity 8-12 ohms
ITO Thickness 350nm (approx.)

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
QTO-2217 PDF ITO Coated Fused Quartz 22 x 220.17 £59.00
QTY
Added. View quote
QTO-2552 PDF ITO Coated Fused Quartz 25 x 250.20 £45.00
QTY
Added. View quote
QTO-2515 PDF ITO Coated Fused Quartz 25 x 250.15 £62.00
QTY
Added. View quote
QTO-2525 PDF ITO Coated Fused Quartz 25 x 250.50 £45.00
QTY
Added. View quote

Part Number

QTO-2217

ITO Coated Fused Quartz

PDF Data sheet

Thickness (mm) 0.17

Dimensions (mm) 22 x 22

UNIT PRICE (1-50)

£59.00 Inc. VAT

QTY

Part Number

QTO-2552

ITO Coated Fused Quartz

PDF Data sheet

Thickness (mm) 0.20

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£45.00 Inc. VAT

QTY

Part Number

QTO-2515

ITO Coated Fused Quartz

PDF Data sheet

Thickness (mm) 0.15

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£62.00 Inc. VAT

QTY

Part Number

QTO-2525

ITO Coated Fused Quartz

PDF Data sheet

Thickness (mm) 0.50

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£45.00 Inc. VAT

QTY
