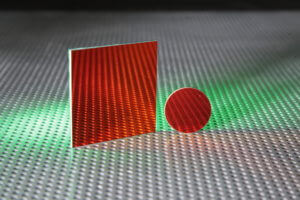

UV Filter/NIR Blocker

UV Filter NIR Blocker is made from Schott UG11 which is a transmitting filter glass. It provides an excellent higher level of blocking in the visible and NIR by merging the UG 11 glass with a hard coated dielectric layer. It providesan excellent blocking at 720nm and the NIR. The coating is also a protection against external influences and UV radiation.

These filters are used in spectroscopy, water purification, chemical analysisand analytical instrumentation.

UQG Optics offers diameters and squares and can also be made in a custom size.

Please contact our sales team.

Dimensions: Diameters 5mm to 50mm
Squares/Rectangles 3mm x 3mm to 50mm x 50mm
Thickness Range: Standard 2mm

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Schott® UG11 Dielectric Coated
Dimension Tolerance:
+00/-0.20mm
Thickness Tolerance:
± 0.10mm
Edge Finish:
Fine Ground & chamfered
Specification:
Half band width 70nm
Max transmittance >75%
Blocking < 270nm T<0.001%
420-799nm T_avg <0.001%
800-999nm T_avg <0.05%
1000-1200nm T_avg <0.5%

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
UGB-252 PDF UV Filter NIR Blocker Ø 252 £320.00
QTY
Added. View quote
UGB-5052 PDF UV Filter NIR Blocker 50 x 502 £505.00
QTY
Added. View quote

Part Number

UGB-5052

UV Filter NIR Blocker

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£505.00 Inc. VAT

QTY

Part Number

UGB-252

UV Filter NIR Blocker

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£320.00 Inc. VAT

QTY
