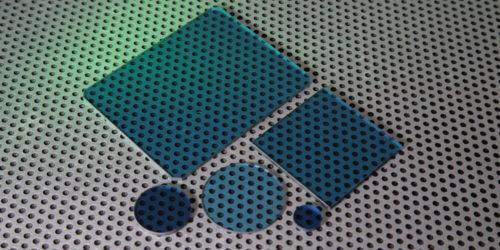

Hoya Filters - Blue Light Balancing

UQG optics Hoya Blue Light Balancing filters (LB) are used to increasing the transmittance in the visible range to control the colour temperature. If you require lowering the colour temperature there is a range of Hoya LA blue light balancing filters. By changing the polished thickness we can create a filter with the capacity for any colour temperature conversion

UQG Optics stock diameters and squares in various LB filters. We can supply in custom made sizes and including optical coatings.

Please contact our sales team.



Dimensions: Diameters 5mm to 160mm
Squares/Rectangles 1mm x 1mm to 165mm x 165mm
Thickness Range: 0.50mm to 4mm (subject to dimension)
Edge Finish: As cut/chamfered or ground
Surface Flatness: Up to lambda 4 (@633nm)
Parallelism: Up to 1 arc min
Material Options: Commercial grade, optical glass filters for larger sizes over 160mm x 160mm
Low cost optical filter range for less demanding applications (data sheet on request)
Coating Options: MgF2 protective coatings, AR coatings, bandpass & blocking optical coatings
Options: Additional filter types, combination of 2 laminated filters, toughening, storage boxes, mounts & holders, calibration certificates, identification labels & transmission curves

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
HOYA® Filter Glass
Dimension Tolerance:
+0.00 / -0.20mm
Thickness Tolerance:
± 0.10mm * note LB145 thickness can be +/- 0.50mm
Edge Finish:
Fine ground
Surface Quality:
60/40 Scratch/Dig
Surface Flatness:
≤ 5 fringes (@633nm)
Parallelism:
≤ 3 arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
HFL-4005 PDF Hoya LB-40 Ø 12.502.5 £24.00
QTY
Added. View quote
HFL-8005 PDF Hoya LB-80 Ø 12.502.5 £24.00
QTY
Added. View quote
HFL-1005 PDF Hoya LB-100 Ø 12.502.5 £24.00
QTY
Added. View quote
HFL-1205 PDF Hoya LB-120 Ø 12.502.5 £24.00
QTY
Added. View quote
HFL-1405 PDF Hoya LB-145 Ø 12.502 £26.00
QTY
Added. View quote
HFL-1605 PDF Hoya LB-165 Ø 12.502.5 £24.00
QTY
Added. View quote
HFL-2005 PDF Hoya LB-200 Ø 12.502.5 £24.00
QTY
Added. View quote
HFL-4025 PDF Hoya LB-40 Ø 252.5 £35.00
QTY
Added. View quote
HFL-8025 PDF Hoya LB-80 Ø 252.5 £35.00
QTY
Added. View quote
HFL-1025 PDF Hoya LB-100 Ø 252.5 £35.00
QTY
Added. View quote
HFL-1225 PDF Hoya LB-120 Ø 252.5 £35.00
QTY
Added. View quote
HFL-1425 PDF Hoya LB-145 Ø 252 £39.00
QTY
Added. View quote
HFL-1625 PDF Hoya LB-165 Ø 252.5 £35.00
QTY
Added. View quote
HFL-2025 PDF Hoya LB-200 Ø 252.5 £35.00
QTY
Added. View quote
HFL-4050 PDF Hoya LB-40 50 x 502.5 £75.00
QTY
Added. View quote
HFL-8050 PDF Hoya LB-80 50 x 502.5 £75.00
QTY
Added. View quote
HFL-1050 PDF Hoya LB-100 50 x 502.5 £75.00
QTY
Added. View quote
HFL-1250 PDF Hoya LB-120 50 x 502.5 £75.00
QTY
Added. View quote
HFL-1450 PDF Hoya LB-145 50 x 502 £90.00
QTY
Added. View quote
HFL-1650 PDF Hoya LB-165 50 x 502.5 £75.00
QTY
Added. View quote
HFL-2050 PDF Hoya LB-200 50 x 502.5 £75.00
QTY
Added. View quote

Part Number

HFL-4005

Hoya LB-40

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£24.00 Inc. VAT

QTY

Part Number

HFL-8005

Hoya LB-80

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£24.00 Inc. VAT

QTY

Part Number

HFL-1005

Hoya LB-100

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£24.00 Inc. VAT

QTY

Part Number

HFL-1205

Hoya LB-120

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£24.00 Inc. VAT

QTY

Part Number

HFL-1405

Hoya LB-145

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£26.00 Inc. VAT

QTY

Part Number

HFL-1605

Hoya LB-165

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£24.00 Inc. VAT

QTY

Part Number

HFL-2005

Hoya LB-200

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£24.00 Inc. VAT

QTY

Part Number

HFL-4025

Hoya LB-40

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£35.00 Inc. VAT

QTY

Part Number

HFL-8025

Hoya LB-80

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£35.00 Inc. VAT

QTY

Part Number

HFL-1025

Hoya LB-100

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£35.00 Inc. VAT

QTY

Part Number

HFL-1225

Hoya LB-120

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£35.00 Inc. VAT

QTY

Part Number

HFL-1425

Hoya LB-145

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£39.00 Inc. VAT

QTY

Part Number

HFL-1625

Hoya LB-165

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£35.00 Inc. VAT

QTY

Part Number

HFL-2025

Hoya LB-200

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£35.00 Inc. VAT

QTY

Part Number

HFL-4050

Hoya LB-40

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£75.00 Inc. VAT

QTY

Part Number

HFL-8050

Hoya LB-80

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£75.00 Inc. VAT

QTY

Part Number

HFL-1050

Hoya LB-100

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£75.00 Inc. VAT

QTY

Part Number

HFL-1250

Hoya LB-120

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£75.00 Inc. VAT

QTY

Part Number

HFL-1450

Hoya LB-145

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£90.00 Inc. VAT

QTY

Part Number

HFL-1650

Hoya LB-165

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£75.00 Inc. VAT

QTY

Part Number

HFL-2050

Hoya LB-200

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£75.00 Inc. VAT

QTY
