Barium Fluoride (BaF2) Windows

Barium Fluoride(BaF2) is the fastest know scintillator material and the windows and plates are used in VUV and infrared spectroscopy. It has excellent Transmission from 200nm – 12μm and resistant to high-energy radiation. The material can be used up to 800°C but can be subject to reduced transmission in the UV with surface damage in high moisture environments. Accessories for FTIR spectrometers include standard stock windows and demountable cell windows. BaF2 spectroscopic and view port windows are often used for 8-11 micron wave range for the high transmission. Applications for use also include thermography, Laser spectroscopy, astronomy and medical thermology equipment. These optical windows are very sensitive to thermal and mechanical shock.

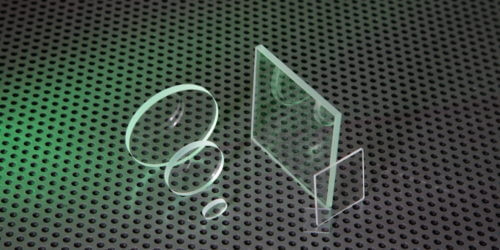

UQG optics Barium Fluoride (BaF2) windows and plates are made as diameters and squares to a standard stock range or custom made to your design.

Please contact our sales team.

Dimensions: Polycrystalline diameters 5mm to 130mm & Squares/rectangles 5mm x 5mm to 90mm x 90mm
Monocrystalline diameters 5mm to 100mm & Squares/rectangles 5mm x 5mm to 60mm x 60mm
Thickness Range: 0.50mm to 10mm
Surface Quality: 80/50 to 20/10 Scratch/Dig
Surface Flatness: Up to lambda 4 (@633nm)
Material Options: Monocrystalline & Polycrystalline
Coating Options: AR coatings from 200nm to 11 microns
Options: Drilled holes, shaped, wedges, squares & rectangles

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

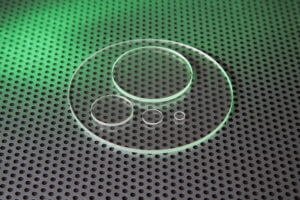

Material:
Barium Fluoride (BaF2) Polycrystalline UV-IR Grade
Dimension Tolerance:
+.00/-0.20mm
Thickness Tolerance:
± 0.10mm
Edge Finish:
Ground & chamfered
Surface Quality:
60/40 Scratch/Dig
Quality Flatness:
3-5 Fringes (@633nm)
Parallelism:
≤ 3 Arc minutes
Transmission Range:
UV 150nm to IR 11 microns

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Diameter (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
BFW-101 PDF BaF2 Window UV/IR Poly Ø 101 £18.00
QTY
Added. View quote
BFW-105 PDF BaF2 Window UV/IR Poly Ø 100.50 £20.00
QTY
Added. View quote
BFW-132 PDF BaF2 Window UV/IR Poly Ø 132 £20.00
QTY
Added. View quote
BFW-132W PDF BaF2 Window - Wedge 10 arc mins Ø 132 £75.00
QTY
Added. View quote
BFW-152 PDF BaF2 Window UV/IR Poly Ø 152 £25.00
QTY
Added. View quote
BFW-192 PDF BaF2 Window UV/IR Poly Ø 192 £26.00
QTY
Added. View quote
BFW-202 PDF BaF2 Window UV/IR Poly Ø 202 £27.00
QTY
Added. View quote
BFW-221 PDF BaF2 Window UV/IR Poly Ø 221 £42.00
QTY
Added. View quote
BFW-225 PDF BaF2 Window UV/IR Poly Ø 200.50 £40.00
QTY
Added. View quote
BFW-251 PDF BaF2 Window UV/IR Poly Ø 251 £35.00
QTY
Added. View quote
BFW-252 PDF BaF2 Window UV/IR Poly Ø 252 £40.00
QTY
Added. View quote
BFW-253 PDF BaF2 Window UV/IR poly Ø 253 £40.00
QTY
Added. View quote
BFW-323 PDF BaF2 Window UV/IR Poly Ø 323 £50.00
QTY
Added. View quote
BFW-323H PDF BaF2 Window - x2 Drilled Holes Ø 323 £65.00
QTY
Added. View quote
BFW-355 PDF BaF2 Window UV/IR Poly Ø 355 £75.00
QTY
Added. View quote
BFW-503 PDF BaF2 Window UV/IR Poly Ø 503 £125.00
QTY
Added. View quote

Part Number

BFW-101

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 10

Thickness (mm) 1

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

BFW-105

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 10

Thickness (mm) 0.50

UNIT PRICE (1-50)

£20.00 Inc. VAT

QTY

Part Number

BFW-132

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 13

Thickness (mm) 2

UNIT PRICE (1-50)

£20.00 Inc. VAT

QTY

Part Number

BFW-132W

BaF2 Window – Wedge 10 arc mins

PDF Data sheet

Diameter (mm) Ø 13

Thickness (mm) 2

UNIT PRICE (1-50)

£75.00 Inc. VAT

QTY

Part Number

BFW-152

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 15

Thickness (mm) 2

UNIT PRICE (1-50)

£25.00 Inc. VAT

QTY

Part Number

BFW-192

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 19

Thickness (mm) 2

UNIT PRICE (1-50)

£26.00 Inc. VAT

QTY

Part Number

BFW-202

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 20

Thickness (mm) 2

UNIT PRICE (1-50)

£27.00 Inc. VAT

QTY

Part Number

BFW-221

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 22

Thickness (mm) 1

UNIT PRICE (1-50)

£42.00 Inc. VAT

QTY

Part Number

BFW-225

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 20

Thickness (mm) 0.50

UNIT PRICE (1-50)

£40.00 Inc. VAT

QTY

Part Number

BFW-251

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 1

UNIT PRICE (1-50)

£35.00 Inc. VAT

QTY

Part Number

BFW-252

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 2

UNIT PRICE (1-50)

£40.00 Inc. VAT

QTY

Part Number

BFW-253

BaF2 Window UV/IR poly

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 3

UNIT PRICE (1-50)

£40.00 Inc. VAT

QTY

Part Number

BFW-323

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 32

Thickness (mm) 3

UNIT PRICE (1-50)

£50.00 Inc. VAT

QTY

Part Number

BFW-323H

BaF2 Window – x2 Drilled Holes

PDF Data sheet

Diameter (mm) Ø 32

Thickness (mm) 3

UNIT PRICE (1-50)

£65.00 Inc. VAT

QTY

Part Number

BFW-355

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 35

Thickness (mm) 5

UNIT PRICE (1-50)

£75.00 Inc. VAT

QTY

Part Number

BFW-503

BaF2 Window UV/IR Poly

PDF Data sheet

Diameter (mm) Ø 50

Thickness (mm) 3

UNIT PRICE (1-50)

£125.00 Inc. VAT

QTY
