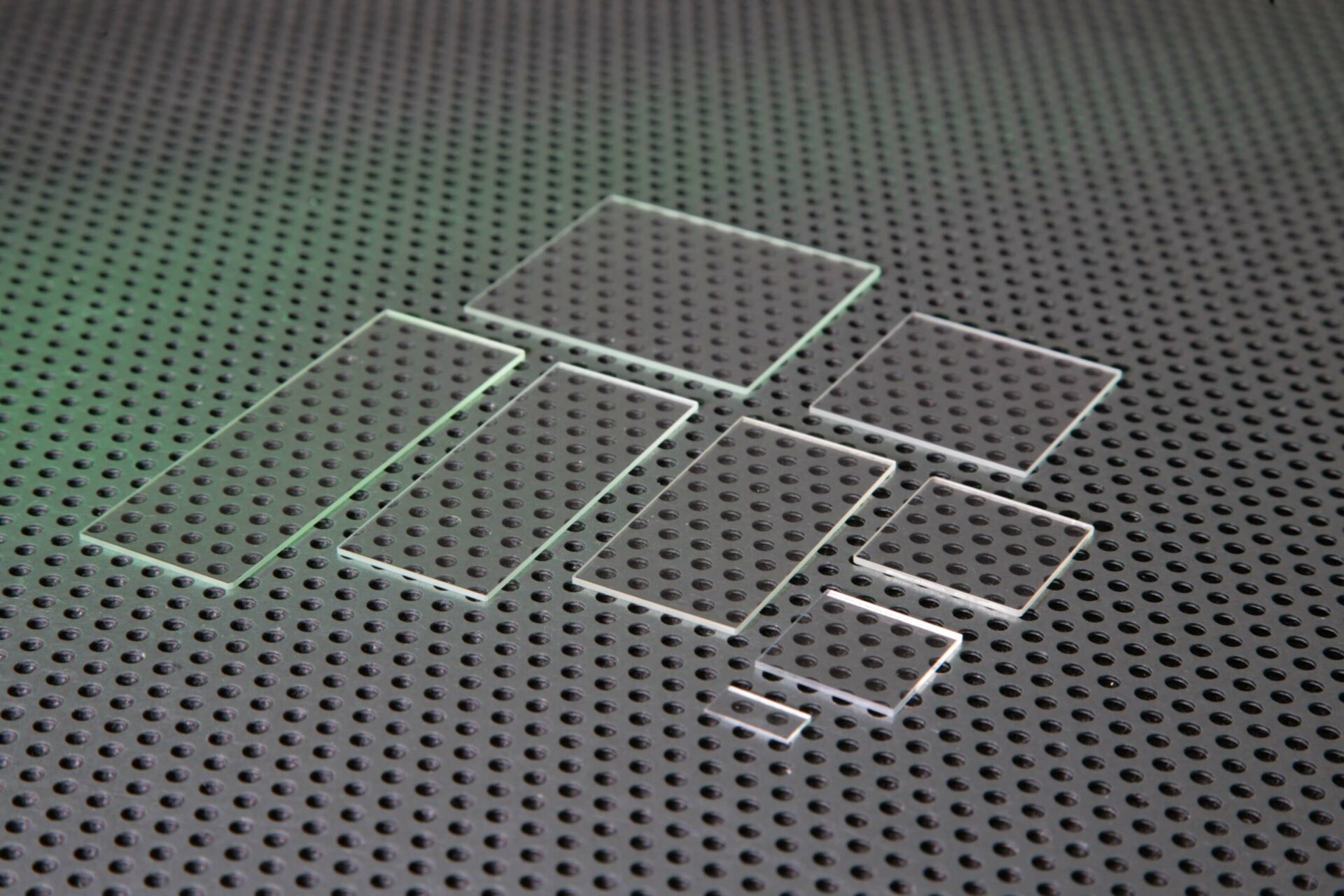

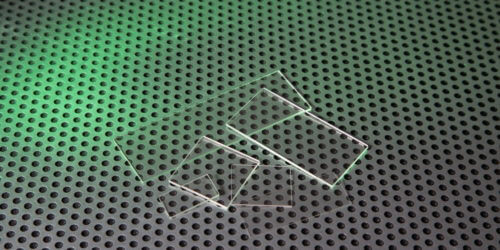

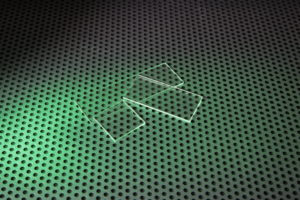

UV Fused Silica Microscope Slides

UQG Optics UV Fused Silica Microscope Slides are produced from a high quality Fused Silica used in laboratories for UV microscopy & UV confocal microscopy. This material makes the microscope slide of a high purity and have useful properties which is not found in Fused Quartz. Its strength and thermal properties are similar to Quartz but had benefits of being fluorescent free. Used in laboratories in universities, biomedical, research laboratories and colleges.

UQG UV Fused Silica Microscope Slides are stocked in a range of standard laboratory sizes but can also be custom made to a full range of sizes and thicknesses to suit your application.

Please contact our sales team.

Dimensions: Squares/Rectangles 1mm x 1mm to 150mm x 150mm
Thickness Range: 0.5mm to 2mm Slides (subject to dimension)
Material Options: Corning 7980 class O grade F & Heraeus Spectrosil 2000®

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
UV Fused Silica - Heraeus Spectrosil 2000® or equivalent
Dimension Tolerance:
±0.20mm
Thickness Specification:
1.00mm thick (+/-.10)mm thick
Edge Finish:
Fine ground
Surface Quality:
40/20 Scratch/Dig
Surface Flatness:
≤ 10 Fringes (@633nm)
Parallelism:
≤ 5 Arc mins
Parts sold as single items

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
FSM-2521 PDF UV Microscope Slide 25 x 251 £22.00
QTY
Added. View quote
FSM-5021 PDF UV Microscope Slide 50 x 251 £28.00
QTY
Added. View quote
FSM-7521 PDF UV Microscope Slide 75 x 251 £32.00
QTY
Added. View quote

Part Number

FSM-2521

UV Microscope Slide

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£22.00 Inc. VAT

QTY

Part Number

FSM-5021

UV Microscope Slide

PDF Data sheet

Dimensions (mm) 50 x 25

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£28.00 Inc. VAT

QTY

Part Number

FSM-7521

UV Microscope Slide

PDF Data sheet

Dimensions (mm) 75 x 25

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY
