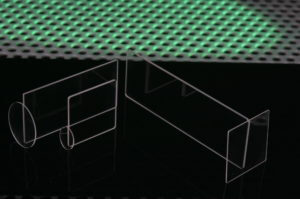

'Z' Cut Quartz Coverslips & Slides

UQG Optics Z Cut Quartz cover slips and slides are Quartz cover slips with the optical axis cut perpendicular to the window surface. The Z cut or zero degree cut Quartz coverslip is made to a precise thickness for your microscope or for use in optical applications. Our stock Z Cut Quartz cover slips and slides are made from an optical grade of Quartz to a right hand orientation. Thicknesses can be supplied as low as 0.05mm and highly optically polished both sides.

UQG Optics stock Z Cut Quartz cover slips and slides are stocked in many sizes with the option to custom make to a desired specification including AR coatings.

Please contact our sales team.

Material: Right & Left Handed
SAW Electronic Grade - Grade 1
Cut to X,Y & Z orientation
Dimensions: Diameters 5mm to 150mm
Squares 1mm - 100mm
Thickness Range: 0.1mm to 10mm
Parallelism: Up to 30 arc seconds

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Crystalline 'Z' Cut Quartz - Optical Grade - Right Hand Cut
Surface Quality:
40/20 Scratch/Dig both sides
Surface Flatness:
≤ 5 Fringes (@633nm)
Dimension Tolerance
Diameter +0.00/-0.10mm
Squares ± 0.10mm
Thickness Tolerance:
± 0.02mm
Surface Roughness:
< 1nm

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
CZQ-1015 PDF 'Z' Cut Quartz 10 x 100.15 £33.00
QTY
Added. View quote
CZQ-1050 PDF 'Z' Cut Quartz 10 x 100.50 £18.00
QTY
Added. View quote
CZQ-2515 PDF 'Z' Cut Quartz 25 x 250.15 £45.00
QTY
Added. View quote
CZQ-2550 PDF 'Z' Cut Quartz 25 x 250.50 £40.00
QTY
Added. View quote
CZQ-5050 PDF 'Z' Cut Quartz 50 x 500.50 £65.00
QTY
Added. View quote

Part Number

CZQ-1015

‘Z’ Cut Quartz

PDF Data sheet

Dimensions (mm) 10 x 10

Thickness (mm) 0.15

UNIT PRICE (1-50)

£33.00 Inc. VAT

QTY

Part Number

CZQ-1050

‘Z’ Cut Quartz

PDF Data sheet

Thickness (mm) 0.50

Dimensions (mm) 10 x 10

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

CZQ-2515

‘Z’ Cut Quartz

PDF Data sheet

Thickness (mm) 0.15

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£45.00 Inc. VAT

QTY

Part Number

CZQ-2550

‘Z’ Cut Quartz

PDF Data sheet

Thickness (mm) 0.50

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£40.00 Inc. VAT

QTY

Part Number

CZQ-5050

‘Z’ Cut Quartz

PDF Data sheet

Thickness (mm) 0.50

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£65.00 Inc. VAT

QTY
