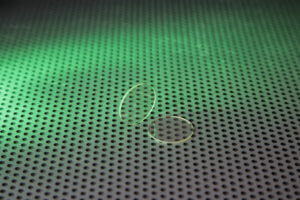

ITO Fused Quartz Windows & Plates

UQG Optics ITO coated indium tin oxide is vacuum deposited on one side on the Fused Quartz substrate which is a highly conductive transparent coating. When the ITO coating has been exposed to thermal cycling and salt spray it has shown no reduction in optical performance or damage to the ITO coating. The transmission will peak to 87% @ 525-600nm wave range on 20 ohm/sq coating. For higher transmission the ITO can be index matched with multilayer AR coatings. The Fused Quartz or Fused Silica windows can be supplied ITO coated up to 1 metre square in a range of sheet resistance from 2.50 to 1500 ohm/sq. Used in science and industry for many applications.

UQG Optics stock range is limited and additional sizes will be stocked shortly.

Please contact our sales team.

Dimensions: Diameters 5mm to 150mm
Squares/Rectangles 1mm x 1mm to 150mm x 150mm
Thickness Range: 0.1mm to 6mm
Coating Options: Additional standard resistivity's & AR coatings
Material Options: Fused Silica & Sapphire

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Heraeus Quartz HOQ310
Dimension Tolerance:
±0.10mm
Thickness Tolerance:
±0.10mm
Edge Finish:
Fine ground
Surface Quality:
40/20 Scratch/Dig
Surface Flatness:
3-5 Fringes (@633nm)
Parallelism:
≤ 5 Arc mins
Coatings:
ITO coating one side
Resistivity 8-12 ohms
ITO Thickness approx 300nm
Hot vacuum deposited

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Diameter (mm)Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
WPI-2510 PDF ITO Coated Fused Quartz Ø 251 £38.00
QTY
Added. View quote
IQP-101 PDF ITO Coated Fused Quartz 10 x 101 £22.00
QTY
Added. View quote
IQP-201 PDF ITO Coated Fused Quartz 20 x 201 £34.00
QTY
Added. View quote
IQP-251 PDF ITO Coated Fused Quartz 25 x 251 £36.00
QTY
Added. View quote
IQP-501 PDF ITO Coated Fused Quartz 50 x 501 £85.00
QTY
Added. View quote
IQP-1001 PDF ITO Coated Fused Quartz 100 x 1001 £221.00
QTY
Added. View quote

Part Number

IQP-101

ITO Coated Fused Quartz

PDF Data sheet

Dimensions (mm) 10 x 10

Thickness (mm) 1

UNIT PRICE (1-10)

£22.00 Inc. VAT

QTY

Part Number

IQP-201

ITO Coated Fused Quartz

PDF Data sheet

Dimensions (mm) 20 x 20

Thickness (mm) 1

UNIT PRICE (1-10)

£34.00 Inc. VAT

QTY

Part Number

IQP-251

ITO Coated Fused Quartz

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 1

UNIT PRICE (1-10)

£36.00 Inc. VAT

QTY

Part Number

IQP-501

ITO Coated Fused Quartz

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1

UNIT PRICE (1-10)

£85.00 Inc. VAT

QTY

Part Number

IQP-1001

ITO Coated Fused Quartz

PDF Data sheet

Dimensions (mm) 100 x 100

Thickness (mm) 1

UNIT PRICE (1-10)

£221.00 Inc. VAT

QTY

Part Number

WPI-2510

ITO Coated Fused Quartz

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 1

UNIT PRICE (1-10)

£38.00 Inc. VAT

QTY
