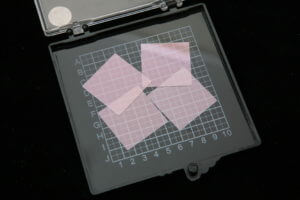

ITO Coated Glass Cover Slips

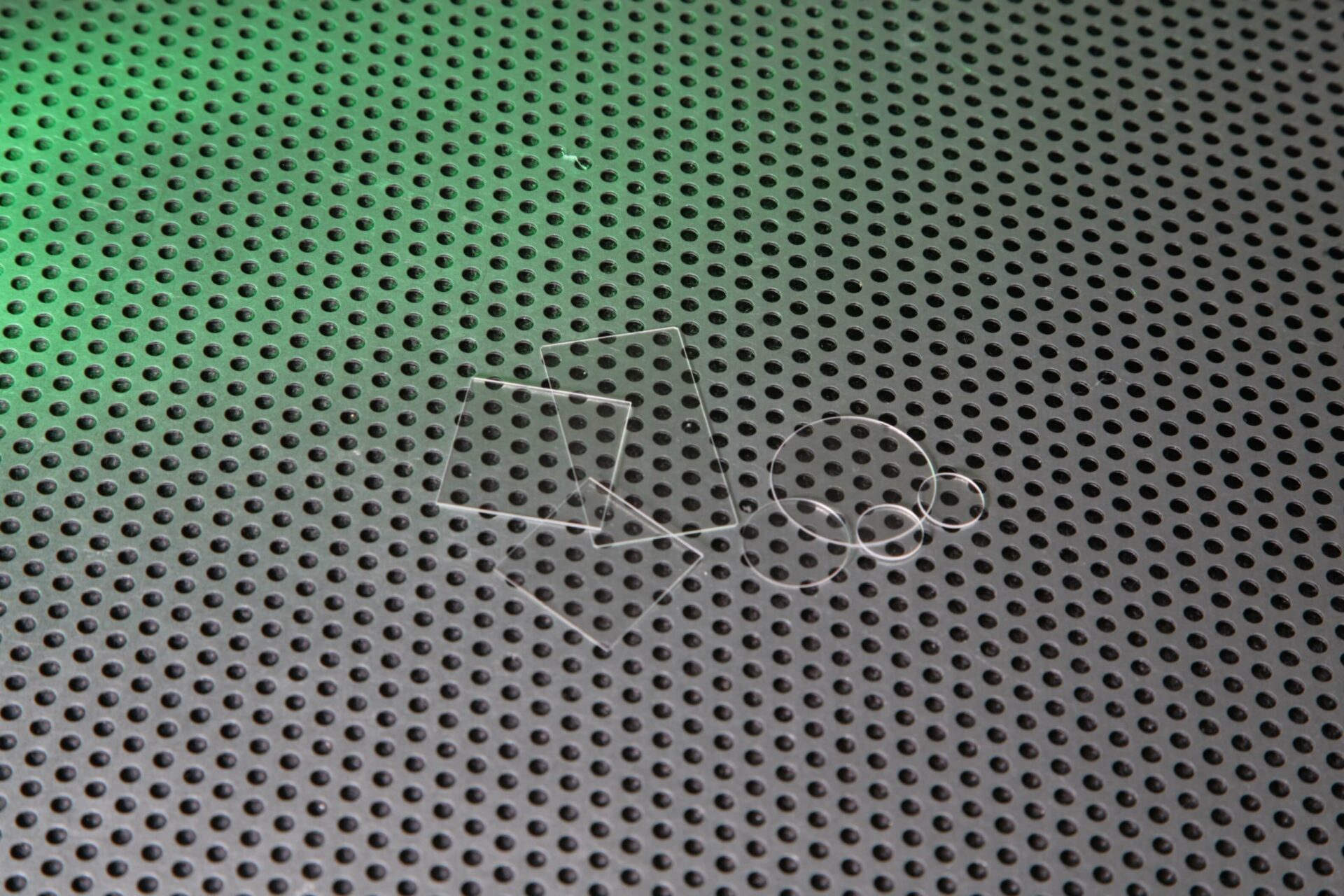

UQG optics ITO coated glass cover slips deposited with an indium tin oxide coating on standard laboratory glass cover slips. The range of four standard ITO sheet resistance ranges from 8-12 ohms/sq to 70-100 ohms/sq. Circular ITO cover slips can also be supplied and cut to custom dimensions. They have good transparency and a range of four thicknesses for use with your microscope. Busbars and conductive strips are applied for connection to leads for an electrical current this can also be supplied.

UQG optics stock additional standard stock sizes to the range listed. Please note that these are sold in packs of 10 off.

Please contact our sales team.



Dimensions: Standard laboratory sizes
Thickness Range: Schott D 263 ® T eco Thin Glass
No3 (0.28mm to 0.32mm) 0.30mm
No4 (0.38mm to 0.42mm) 0.40mm
No5 (0.55mm ±0.05mm) 0.55mm
No7 (0.70mm ±0.05mm) 0.70mm
Schott D 263 ® M
No00 (0.06mm to 0.08mm) 0.07mm
No0 (0.085mm to 0.115mm) 0.10mm
No1 (0.13mm to 0.16mm) 0.15mm
No1.5 (0.16mm to 0.19mm) 0.17mm
No1.5H (0.17mm ±0.005mm) 0.17mm (High precision)
No2 (0.19mm to 0.23mm) 0.20mm
Material Options: Schott D 263 ® T eco Thin Glass or Schott D 263 ® M
ITO Coatings: 2.50 to 1000 ohms/sq

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Schott D 263 ®M Cover Glass
Dimension Tolerance:
± 0.20mm
Thickness:
#No1 0.13-0.17mm
#No1.5 0.16-0.19mm
Edge Finish:
As cut
Surface Quality:
60/40 Scratch/Dig
Standard Sizes:
18mm x 18mm, 20mm x 20mm, 22mm x 22mm
22mm x 26mm & 22mm x 40mm
Standard ITO Specifications:
8-12, 15-30, 30-60 & 70-100 ohms/sq
Coating Thickness:
8-12 ohms/sq = 700nm thick & 15-30 ohms/sq = 350nm thick
30-60 ohms/sq = 140nm thick & 70-100 ohms/sq = 70nm thick

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
CIO-1858 PDF Coverslip#No1.5 8-12 ohms/sq 10 off 18 x 180.17 £51.50
QTY
Added. View quote
CIO-2258 PDF Coverslip#No1.5 8-12 ohms/sq 10 off 22 x 220.17 £70.00
QTY
Added. View quote
CIO-2657 PDF Coverslip#No1.0 70-100 ohms/sq 10 off 22 x 260.15 £71.35
QTY
Added. View quote

Part Number

CIO-1858

Coverslip#No1.5 8-12 ohms/sq 10 off

PDF Data sheet

Thickness (mm) 0.17

Dimensions (mm) 18 x 18

UNIT PRICE (1-50)

£51.50 Inc. VAT

QTY

Part Number

CIO-2258

Coverslip#No1.5 8-12 ohms/sq 10 off

PDF Data sheet

Thickness (mm) 0.17

Dimensions (mm) 22 x 22

UNIT PRICE (1-50)

£70.00 Inc. VAT

QTY

Part Number

CIO-2657

Coverslip#No1.0 70-100 ohms/sq 10 off

PDF Data sheet

Thickness (mm) 0.15

Dimensions (mm) 22 x 26

UNIT PRICE (1-50)

£71.35 Inc. VAT

QTY
