For a quote on your custom requirements please send us your drawing or specification.

Hot Mirrors

UQG Hot Mirrors Filters act as heat protection by adding the hot mirror in the path beam of the light source, so reducing the temperature. The hot mirror reflects 90% IR and transmits visible. Our standard range is at 0° angle of incidence however we can supply 45° angle of incidence.

Hot Mirrors are used widely in projecting images, laser applications and many more where components need to be protected from the heat.

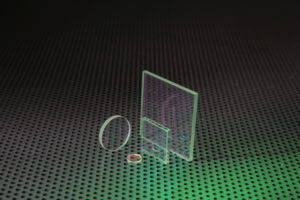

UQG Hot Mirrors are stocked in diameters and squares and we can custom make in various materials and supply custom optical coatings to a custom wavelength.

Please contact our sales team.

Dimensions: Diameters 5mm to 400mm
Squares/Rectangles 1mm x 1mm to 300mm x 300mm
Thickness Range: 0.50mm to 3.00mm
Material Options: Fused Silica, Optical Glass, Fused Quartz & Borosilicate Borofloat
Coating Options: AOI 45°, AOI 0° & custom Hot Mirror wavelength

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Borosilicate Coated Glass HM-07
Dimension Tolerance:
Diameters +0.00/-0.20mm
Squares ±0.20mm
Thickness Tolerance:
1.10mm ±0.10mm/3.3mm ±0.20mm
Edge Finish:
Cut & chamfered sizes over 25mm, below edges ground
Spectral Data:
VIS Transmission 420-700nm Tavg.≥85%
IR Reflection 750-1100nm Ravg.≥98%
Transmission 50% @ 710 (±10nm)
Angle of Incidence:

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
HMC-0501 PDF Hot Mirror HM-07 Ø51.10 £14.00
QTY
Added. View quote
HMC-1010 PDF Hot Mirror HM-07 Ø101.10 £12.00
QTY
Added. View quote
HMC-1251 PDF Hot Mirror HM-07 Ø12.51.10 £16.00
QTY
Added. View quote
HMC-2510 PDF Hot Mirror HM-07 Ø251.10 £22.00
QTY
Added. View quote
HMC-2533 PDF Hot Mirror HM-07 Ø253.30 £10.80
QTY
Added. View quote
HMC-4033 PDF Hot Mirror HM-07 Ø403.30 £29.00
QTY
Added. View quote
HMC-5001 PDF Hot Mirror HM-07 Ø501.10 £36.00
QTY
Added. View quote
HMC-5033 PDF Hot Mirror HM-07 Ø503.30 £31.00
QTY
Added. View quote
HMC-0551 PDF Hot Mirror HM-07 5x51.10 £9.00
QTY
Added. View quote
HMC-1101 PDF Hot Mirror HM-07 10 x 101.10 £12.00
QTY
Added. View quote
HMC-1515 PDF Hot Mirror HM-07 15 x 151.10 £14.00
QTY
Added. View quote
HMC-2521 PDF Hot Mirror HM-07 25 x 251.10 £18.00
QTY
Added. View quote
HMC-2523 PDF Hot Mirror HM-07 25 x 253.30 £9.90
QTY
Added. View quote
HMC-4043 PDF Hot Mirror HM-07 40 x 403.30 £22.00
QTY
Added. View quote
HMC-5051 PDF Hot Mirror HM-07 50 x 501.10 £28.00
QTY
Added. View quote
HMC-5053 PDF Hot Mirror HM-07 50 x 503.30 £27.00
QTY
Added. View quote
HMC-6563 PDF Hot Mirror HM-07 65 x 653.30 £46.00
QTY
Added. View quote
HMC-8083 PDF Hot Mirror HM-07 80 x 803.30 £61.00
QTY
Added. View quote
HMC-1033 PDF Hot Mirror HM-07 100 x 1003.30 £71.00
QTY
Added. View quote

Part Number

HMC-0501

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø5

Focal Length (mm) 0

UNIT PRICE (1-50)

£14.00 Inc. VAT

QTY

Part Number

HMC-1010

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø10

Focal Length (mm) 0

UNIT PRICE (1-50)

£12.00 Inc. VAT

QTY

Part Number

HMC-1251

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø12.5

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

HMC-2510

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø25

Focal Length (mm) 0

UNIT PRICE (1-50)

£22.00 Inc. VAT

QTY

Part Number

HMC-2533

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) Ø25

UNIT PRICE (1-50)

£10.80 Inc. VAT

QTY

Part Number

HMC-4033

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) Ø40

UNIT PRICE (1-50)

£29.00 Inc. VAT

QTY

Part Number

HMC-5001

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø50

Focal Length (mm) 0

UNIT PRICE (1-50)

£36.00 Inc. VAT

QTY

Part Number

HMC-5033

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) Ø50

UNIT PRICE (1-50)

£31.00 Inc. VAT

QTY

Part Number

HMC-0551

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 5x5

Focal Length (mm) 0

UNIT PRICE (1-50)

£9.00 Inc. VAT

QTY

Part Number

HMC-1101

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 10 x 10

Focal Length (mm) 0

UNIT PRICE (1-50)

£12.00 Inc. VAT

QTY

Part Number

HMC-1515

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 15 x 15

Focal Length (mm) 0

UNIT PRICE (1-50)

£14.00 Inc. VAT

QTY

Part Number

HMC-2521

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

HMC-2523

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£9.90 Inc. VAT

QTY

Part Number

HMC-4043

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) 40 x 40

UNIT PRICE (1-50)

£22.00 Inc. VAT

QTY

Part Number

HMC-5051

Hot Mirror HM-07

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1.10

Focal Length (mm) 0

UNIT PRICE (1-50)

£28.00 Inc. VAT

QTY

Part Number

HMC-5053

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£27.00 Inc. VAT

QTY

Part Number

HMC-6563

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) 65 x 65

UNIT PRICE (1-50)

£46.00 Inc. VAT

QTY

Part Number

HMC-8083

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) 80 x 80

UNIT PRICE (1-50)

£61.00 Inc. VAT

QTY

Part Number

HMC-1033

Hot Mirror HM-07

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) 100 x 100

UNIT PRICE (1-50)

£71.00 Inc. VAT

QTY
