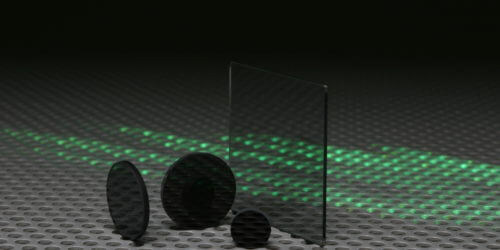

Neutral Density Filters - Absorptive Stock

CUSTOM

Get a Quote
For a quote on your custom requirements please send us your drawing or specification.

Neutral Density Filters - Absorptive

Absorptive Schott glass Neutral Density filters are used to control the intensity of light and are stackable without resulting in multiple reflections. The ND glass absorbs the light within the filter. Each glass type is polished to required thickness and measured to produce the exact optical density and transmission. Custom or standard optical density’s and transmission can be produced to a particular wavelength. These filters have almost constant attenuation inside the visible spectrum.

Please contact our sales team.

View RoHS Statement

Dimensions:	Diameters 5mm to 160mm
	Squares/Rectangles 1mm x 1mm to 165mm x 165mm
Thickness Range:	0.50mm to 4.00mm (subject to dimension)
Dimension/Thickness:	To 0.02mm
Surface Quality:	80/50 to 20/10 scratch/dig
Surface Flatness:	Up to lambda 1 (@633nm)
Parallelism:	Up to 1 arc min
Transmission:	To within 1%
Density:	To 0.02
Options:	Transmission curves 400-1100nm, absorbance curves 400-1100nm, calibration certificates, spot reading @ wavelengths, identification labels, storage boxes, mounts & holders Custom densities & transmission at different wavelengths eg. 71% T @ 589nm

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:

SCHOTT ® or HOYA® Filter Glass

Dimension Tolerance:

Ø 12.5mm +0.00/-0.20mm / Ø 25mm +0.00/-0.20mm / 50x50mm +/-0.20mm

Thickness Tolerance:

± 0.10mm

Edge Finish:

Fine ground

Surface Quality:

60/40 Scratch/Dig

Surface Flatness:

≤ 3 Fringes

Optical Density:

O.D >1.0 ± 5% @546nm

O.D <1.0 ± 0.05 @546nm

Parallelism:

≤ 3 Arc mins

Material:

SCHOTT ® or HOYA® Filter Glass

Dimension Tolerance:

Ø 25mm +0.00/-0.20mm

Thickness Tolerance:

± 0.10mm

Edge Finish:

Fine ground

Surface Quality:

60/40 Scratch/Dig

Surface Flatness:

≤ 5 Fringes

Optical Density:

O.D >1.0 ± 5% @546nm

O.D <1.0 ± 0.05 @546nm

Parallelism:

≤ 5 Arc mins

Material:

SCHOTT ® or HOYA® Filter Glass

Dimension Tolerance:

50x50mm +/-0.20mm

Thickness Tolerance:

± 0.10mm

Edge Finish:

Fine ground

Surface Quality:

60/40 Scratch/Dig

Surface Flatness:

≤ 8 Fringes

Optical Density:

O.D >1.0 ± 5% @546nm

O.D <1.0 ± 0.05 @546nm

Parallelism:

≤ 8 Arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

Part No	Data sheet	Description	Dimensions (mm)	Optical Density	Thickness (mm)	Transmission	Unit price (1-10) excl. VAT	Qty	Qty (10+)Volume pricing available for 10+, please add to quote.
FND-1200	PDF	ND Filter KG1	Ø 12.5	0.05	1	89%	£11.00	QTY ND Filter KG1 quantity	Added to Quote
FND-1201	PDF	ND Filter ND70	Ø 12.5	0.1	2.40	79%	£11.00	QTY ND Filter ND70 quantity	Added to Quote
FND-1250	PDF	ND Filter ND50	Ø 12.5	0.15	1.35	71%	£11.00	QTY ND Filter ND50 quantity	Added to Quote
FND-1202	PDF	ND Filter ND50	Ø 12.5	0.2	1.80	63%	£11.00	QTY ND Filter ND50 quantity	Added to Quote
FND-1203	PDF	ND Filter NG11	Ø 12.5	0.3	2.30	50%	£11.00	QTY ND Filter NG11 quantity	Added to Quote
FND-1204	PDF	ND Filter NG11	Ø 12.5	0.4	3.30	40%	£11.00	QTY ND Filter NG11 quantity	Added to Quote
FND-1205	PDF	ND Filter ND25	Ø 12.5	0.5	2.25	32%	£11.00	QTY ND Filter ND25 quantity	Added to Quote
FND-1206	PDF	ND Filter NG5	Ø 12.5	0.6	2.30	25%	£11.00	QTY ND Filter NG5 quantity	Added to Quote
FND-1207	PDF	ND Filter NG5	Ø 12.5	0.7	2.70	20%	£11.00	QTY ND Filter NG5 quantity	Added to Quote
FND-1208	PDF	ND Filter NG5	Ø 12.5	0.8	3	16%	£11.00	QTY ND Filter NG5 quantity	Added to Quote
FND-1209	PDF	ND Filter NG5	Ø 12.5	0.9	3.20	13%	£11.00	QTY ND Filter NG5 quantity	Added to Quote
FND-1210	PDF	ND Filter NG5	Ø 12.5	1	3.90	10%	£11.00	QTY ND Filter NG5 quantity	Added to Quote
FND-1213	PDF	ND Filter NG4	Ø 12.5	1.3	2.40	5%	£11.00	QTY ND Filter NG4 quantity	Added to Quote
FND-1215	PDF	ND Filter NG4	Ø 12.5	1.5	2.90	3.20%	£11.00	QTY ND Filter NG4 quantity	Added to Quote
FND-1220	PDF	ND Filter NG4	Ø 12.5	2	3.80	1%	£11.00	QTY ND Filter NG4 quantity	Added to Quote
FND-1223	PDF	ND Filter NG3	Ø 12.5	2.3	2.20	0.50%	£11.00	QTY ND Filter NG3 quantity	Added to Quote
FND-1230	PDF	ND Filter NG3	Ø 12.5	3	2.90	0.10%	£11.00	QTY ND Filter NG3 quantity	Added to Quote
FND-1225	PDF	ND Filter NG3	Ø 12.5	2.5	2.40	0.32%	£11.00	QTY ND Filter NG3 quantity	Added to Quote
FND-1240	PDF	ND Filter NG3	Ø 12.5	4	3.90	0.01%	£11.00	QTY ND Filter NG3 quantity	Added to Quote
FND-2500	PDF	ND Filter KG1	Ø 25	0.05	1	89%	£19.00	QTY ND Filter KG1 quantity	Added to Quote
FND-2501	PDF	ND Filter ND70	Ø 25	0.1	2.40	79%	£17.50	QTY ND Filter ND70 quantity	Added to Quote
FND-2550	PDF	ND Filter ND50	Ø 25	0.15	1.35	71%	£17.50	QTY ND Filter ND50 quantity	Added to Quote
FND-2502	PDF	ND Filter ND50	Ø 25	0.2	1.80	63%	£17.50	QTY ND Filter ND50 quantity	Added to Quote
FND-2503	PDF	ND Filter NG11	Ø 25	0.3	2.30	50%	£17.50	QTY ND Filter NG11 quantity	Added to Quote
FND-2504	PDF	ND Filter NG11	Ø 25	0.4	3.30	40%	£17.50	QTY ND Filter NG11 quantity	Added to Quote
FND-2505	PDF	ND Filter ND25	Ø 25	0.5	2.25	32%	£17.50	QTY ND Filter ND25 quantity	Added to Quote
FND-2506	PDF	ND Filter NG5	Ø 25	0.6	2.30	25%	£17.50	QTY ND Filter NG5 quantity	Added to Quote
FND-2507	PDF	ND Filter NG5	Ø 25	0.7	2.70	20%	£17.50	QTY ND Filter NG5 quantity	Added to Quote
FND-2508	PDF	ND Filter NG5	Ø 25	0.8	3	16%	£17.50	QTY ND Filter NG5 quantity	Added to Quote
FND-2509	PDF	ND Filter NG5	Ø 25	0.9	3.20	13%	£17.50	QTY ND Filter NG5 quantity	Added to Quote
FND-2510	PDF	ND Filter NG5	Ø 25	1	3.90	10%	£17.50	QTY ND Filter NG5 quantity	Added to Quote
FND-2513	PDF	ND Filter NG4	Ø 25	1.3	2.40	5%	£17.50	QTY ND Filter NG4 quantity	Added to Quote
FND-2515	PDF	ND Filter NG4	Ø 25	1.5	2.90	3.20%	£17.50	QTY ND Filter NG4 quantity	Added to Quote
FND-2520	PDF	ND Filter NG4	Ø 25	2	3.80	1%	£17.50	QTY ND Filter NG4 quantity	Added to Quote
FND-2523	PDF	ND Filter NG3	Ø 25	2.3	2.20	0.50%	£17.50	QTY ND Filter NG3 quantity	Added to Quote
FND-2525	PDF	ND Filter NG3	Ø 25	2.5	2.40	0.32%	£17.50	QTY ND Filter NG3 quantity	Added to Quote
FND-2530	PDF	ND Filter NG3	Ø 25	3	2.90	0.10%	£17.50	QTY ND Filter NG3 quantity	Added to Quote
FND-2540	PDF	ND Filter NG3	Ø 25	4	3.90	0.01%	£17.50	QTY ND Filter NG3 quantity	Added to Quote
FND-5000	PDF	ND Filter KG1	50 x 50	0.05	1	89%	£37.00	QTY ND Filter KG1 quantity	Added to Quote
FND-5001	PDF	ND Filter ND70	50 x 50	0.1	2.40	79%	£37.00	QTY ND Filter ND70 quantity	Added to Quote
FND-5050	PDF	ND Filter ND50	50 x 50	0.15	1.35	71%	£37.00	QTY ND Filter ND50 quantity	Added to Quote
FND-5002	PDF	ND Filter ND50	50 x 50	0.2	1.80	63%	£37.00	QTY ND Filter ND50 quantity	Added to Quote
FND-5003	PDF	ND Filter NG11	50 x 50	0.3	2.30	50%	£37.00	QTY ND Filter NG11 quantity	Added to Quote
FND-5004	PDF	ND Filter NG11	50 x 50	0.4	3.30	40%	£37.00	QTY ND Filter NG11 quantity	Added to Quote
FND-5005	PDF	ND Filter ND25	50 x 50	0.5	2.25	32%	£37.00	QTY ND Filter ND25 quantity	Added to Quote
FND-5006	PDF	ND Filter NG5	50 x 50	0.6	2.30	25%	£37.00	QTY ND Filter NG5 quantity	Added to Quote
FND-5007	PDF	ND Filter NG5	50 x 50	0.7	2.70	20%	£37.00	QTY ND Filter NG5 quantity	Added to Quote
FND-5008	PDF	ND Filter NG5	50 x 50	0.8	3	16%	£37.00	QTY ND Filter NG5 quantity	Added to Quote
FND-5009	PDF	ND Filter NG5	50 x 50	0.9	3.20	13%	£37.00	QTY ND Filter NG5 quantity	Added to Quote
FND-5010	PDF	ND Filter NG5	50 x 50	1	3.90	10%	£37.00	QTY ND Filter NG5 quantity	Added to Quote
FND-5013	PDF	ND Filter NG4	50 x 50	1.3	2.40	5%	£37.00	QTY ND Filter NG4 quantity	Added to Quote
FND-5015	PDF	ND Filter NG4	50 x 50	1.5	2.90	3.20%	£37.00	QTY ND Filter NG4 quantity	Added to Quote
FND-5020	PDF	ND Filter NG4	50 x 50	2	3.80	1%	£37.00	QTY ND Filter NG4 quantity	Added to Quote
FND-5023	PDF	ND Filter NG3	50 x 50	2.3	2.20	0.50%	£37.00	QTY ND Filter NG3 quantity	Added to Quote
FND-5025	PDF	ND Filter NG3	50 x 50	2.5	2.40	0.32%	£37.00	QTY ND Filter NG3 quantity	Added to Quote
FND-5030	PDF	ND Filter NG3	50 x 50	3	2.90	0.10%	£37.00	QTY ND Filter NG3 quantity	Added to Quote
FND-5040	PDF	ND Filter NG3	50 x 50	4	3.90	0.01%	£37.00	QTY ND Filter NG3 quantity	Added to Quote

Part Number

FND-1200

ND Filter KG1

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 12.5

Optical Density 0.05

Transmission 89%

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1201

ND Filter ND70

PDF Data sheet

Thickness (mm) 2.40

Dimensions (mm) Ø 12.5

Optical Density 0.1

Transmission 79%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1250

ND Filter ND50

PDF Data sheet

Thickness (mm) 1.35

Dimensions (mm) Ø 12.5

Optical Density 0.15

Transmission 71%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1202

ND Filter ND50

PDF Data sheet

Thickness (mm) 1.80

Dimensions (mm) Ø 12.5

Optical Density 0.2

Transmission 63%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1203

ND Filter NG11

PDF Data sheet

Thickness (mm) 2.30

Dimensions (mm) Ø 12.5

Optical Density 0.3

Transmission 50%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1204

ND Filter NG11

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) Ø 12.5

Optical Density 0.4

Transmission 40%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1205

ND Filter ND25

PDF Data sheet

Thickness (mm) 2.25

Dimensions (mm) Ø 12.5

Optical Density 0.5

Transmission 32%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1206

ND Filter NG5

PDF Data sheet

Thickness (mm) 2.30

Dimensions (mm) Ø 12.5

Optical Density 0.6

Transmission 25%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1207

ND Filter NG5

PDF Data sheet

Thickness (mm) 2.70

Dimensions (mm) Ø 12.5

Optical Density 0.7

Transmission 20%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1208

ND Filter NG5

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 12.5

Optical Density 0.8

Transmission 16%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1209

ND Filter NG5

PDF Data sheet

Thickness (mm) 3.20

Dimensions (mm) Ø 12.5

Optical Density 0.9

Transmission 13%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1210

ND Filter NG5

PDF Data sheet

Thickness (mm) 3.90

Dimensions (mm) Ø 12.5

Optical Density 1

Transmission 10%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1213

ND Filter NG4

PDF Data sheet

Thickness (mm) 2.40

Dimensions (mm) Ø 12.5

Optical Density 1.3

Transmission 5%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1215

ND Filter NG4

PDF Data sheet

Thickness (mm) 2.90

Dimensions (mm) Ø 12.5

Optical Density 1.5

Transmission 3.20%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1220

ND Filter NG4

PDF Data sheet

Thickness (mm) 3.80

Dimensions (mm) Ø 12.5

Optical Density 2

Transmission 1%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1223

ND Filter NG3

PDF Data sheet

Thickness (mm) 2.20

Dimensions (mm) Ø 12.5

Optical Density 2.3

Transmission 0.50%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1230

ND Filter NG3

PDF Data sheet

Thickness (mm) 2.90

Dimensions (mm) Ø 12.5

Optical Density 3

Transmission 0.10%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1225

ND Filter NG3

PDF Data sheet

Thickness (mm) 2.40

Dimensions (mm) Ø 12.5

Optical Density 2.5

Transmission 0.32%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-1240

ND Filter NG3

PDF Data sheet

Thickness (mm) 3.90

Dimensions (mm) Ø 12.5

Optical Density 4

Transmission 0.01%

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.00 Inc. VAT

Part Number

FND-2500

ND Filter KG1

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 25

Optical Density 0.05

Transmission 89%

UNIT PRICE (1-10)

£19.00 Inc. VAT

Part Number

FND-2501

ND Filter ND70

PDF Data sheet

Thickness (mm) 2.40

Dimensions (mm) Ø 25

Optical Density 0.1

Transmission 79%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2550

ND Filter ND50

PDF Data sheet

Thickness (mm) 1.35

Dimensions (mm) Ø 25

Optical Density 0.15

Transmission 71%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2502

ND Filter ND50

PDF Data sheet

Thickness (mm) 1.80

Dimensions (mm) Ø 25

Optical Density 0.2

Transmission 63%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2503

ND Filter NG11

PDF Data sheet

Thickness (mm) 2.30

Dimensions (mm) Ø 25

Optical Density 0.3

Transmission 50%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2504

ND Filter NG11

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) Ø 25

Optical Density 0.4

Transmission 40%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2505

ND Filter ND25

PDF Data sheet

Thickness (mm) 2.25

Dimensions (mm) Ø 25

Optical Density 0.5

Transmission 32%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2506

ND Filter NG5

PDF Data sheet

Thickness (mm) 2.30

Dimensions (mm) Ø 25

Optical Density 0.6

Transmission 25%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2507

ND Filter NG5

PDF Data sheet

Thickness (mm) 2.70

Dimensions (mm) Ø 25

Optical Density 0.7

Transmission 20%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2508

ND Filter NG5

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

Optical Density 0.8

Transmission 16%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2509

ND Filter NG5

PDF Data sheet

Thickness (mm) 3.20

Dimensions (mm) Ø 25

Optical Density 0.9

Transmission 13%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2510

ND Filter NG5

PDF Data sheet

Thickness (mm) 3.90

Dimensions (mm) Ø 25

Optical Density 1

Transmission 10%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2513

ND Filter NG4

PDF Data sheet

Thickness (mm) 2.40

Dimensions (mm) Ø 25

Optical Density 1.3

Transmission 5%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2515

ND Filter NG4

PDF Data sheet

Thickness (mm) 2.90

Dimensions (mm) Ø 25

Optical Density 1.5

Transmission 3.20%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2520

ND Filter NG4

PDF Data sheet

Thickness (mm) 3.80

Dimensions (mm) Ø 25

Optical Density 2

Transmission 1%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2523

ND Filter NG3

PDF Data sheet

Thickness (mm) 2.20

Dimensions (mm) Ø 25

Optical Density 2.3

Transmission 0.50%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2525

ND Filter NG3

PDF Data sheet

Thickness (mm) 2.40

Dimensions (mm) Ø 25

Optical Density 2.5

Transmission 0.32%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2530

ND Filter NG3

PDF Data sheet

Thickness (mm) 2.90

Dimensions (mm) Ø 25

Optical Density 3

Transmission 0.10%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-2540

ND Filter NG3

PDF Data sheet

Thickness (mm) 3.90

Dimensions (mm) Ø 25

Optical Density 4

Transmission 0.01%

Focal Length (mm) 0

UNIT PRICE (1-10)

£17.50 Inc. VAT

Part Number

FND-5000

ND Filter KG1

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 50 x 50

Optical Density 0.05

Transmission 89%

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5001

ND Filter ND70

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2.40

Optical Density 0.1

Transmission 79%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5050

ND Filter ND50

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1.35

Optical Density 0.15

Transmission 71%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5002

ND Filter ND50

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1.80

Optical Density 0.2

Transmission 63%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5003

ND Filter NG11

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2.30

Optical Density 0.3

Transmission 50%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5004

ND Filter NG11

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3.30

Optical Density 0.4

Transmission 40%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5005

ND Filter ND25

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2.25

Optical Density 0.5

Transmission 32%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5006

ND Filter NG5

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2.30

Optical Density 0.6

Transmission 25%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5007

ND Filter NG5

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2.70

Optical Density 0.7

Transmission 20%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5008

ND Filter NG5

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3

Optical Density 0.8

Transmission 16%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5009

ND Filter NG5

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3.20

Optical Density 0.9

Transmission 13%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5010

ND Filter NG5

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3.90

Optical Density 1

Transmission 10%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5013

ND Filter NG4

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2.40

Optical Density 1.3

Transmission 5%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5015

ND Filter NG4

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2.90

Optical Density 1.5

Transmission 3.20%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5020

ND Filter NG4

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3.80

Optical Density 2

Transmission 1%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5023

ND Filter NG3

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2.20

Optical Density 2.3

Transmission 0.50%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5025

ND Filter NG3

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2.40

Optical Density 2.5

Transmission 0.32%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5030

ND Filter NG3

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2.90

Optical Density 3

Transmission 0.10%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Part Number

FND-5040

ND Filter NG3

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3.90

Optical Density 4

Transmission 0.01%

Focal Length (mm) 0

UNIT PRICE (1-10)

£37.00 Inc. VAT

Neutral Density Filters - Absorptive

Select Your Currency:

Related categories

Calibration Filters - Didymium & Holmium

Neutral Density Filters - Absorptive Boxed Set

Neutral Density Filters - Reflective

Neutral Density Filters - UV Reflective
