Sapphire Windows - AR Coated One Side or Both Sides

UQG Optics AR coated Sapphire window and plates are optically AR coated to maximise the transmission on all grades of Sapphire. It is highly transparent in the ultra violet (UV) visible to the mid infrared (IR) regions. The AR optically coating can be either be deposited on one side or two sides of the component. The standard AR coatings include the UV 250nm-400nm, the visible range 400nm-700nm going into the IR 700nm-1100nm. For the AR mid infrared coatings these included 750nm-1550nm and 2-5 microns. For single wavelength ‘V’ coats these can be for 1064nm or any single wavelength required. Widely used for imaging applications and camera, laser and protection windows.

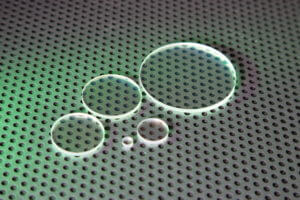

UQG Optics stock Sapphire windows & plates AR Coated are stocked in many sizes with the option to custom make.

Please contact our sales team.

Dimensions: Diameters 2.50mm to 230mm
Squares/Rectangles 1mm x 1mm to 210mm x 210mm
Thickness Range: 0.12mm to 150mm (subject to dimension)
Dimension/Thickness: Tol up to 0.02mm
Surface Quality: 80/50 to 20/10 scratch/dig
Edge Finish: Ground or polished
Surface Flatness: Up to lambda 4 (@633nm)
Parallelism: Up to 1 arc mins
Coating Options: AR coatings from UV 254nm & IR wavelengths
Options: Cut to 'C' axis

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Sapphire-Optical-Random Orientation
Dimension Tolerance:
Diameters +0.00/ -0.10mm
Squares ±0.10mm
Thickness Tolerance:
±0.10mm
Edge Thickness:
Fine ground
Surface Quality:
60/40 Scratch/Dig
Surface Flatness:
Diameters ≤ 5 Fringes (@633nm)
Squares ≤ 10 Fringes (@633nm)
Parallelism:
≤ 3 Arc mins
Coatings:
AR one side multi-layer R < 0.50% 400-700nm AOI 0° (± 20°)
AR both sides multi-layer R < 0.50% 400-700nm AOI 0° (± 20°)

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities
