Calcium Fluoride (CaF2) Microscope Slides - IR, Raman & UV-IR Grades
CaF2 microscope slides are made in a range of standard laboratory sizes.
Calcium Fluoride (CaF2) is ideal for applications in the UV 200nm to IR 7Ī¼m transmission. It has a high damage threshold and low absorption. It makes an excellent choice for FTIR analysis, excimer laser systems and often used as a spectroscopic window and in thermal imaging systems. These are custom made and stocked in three grades IR Grade, UV/IR Grade and Raman grade. Other grades available on request.
AR coatings are applied for increased transmission for the IR or UV wavelengths and other specified orientations cut to <100> <110> <111> in optical grades of Monocrystalline and Polycrystalline material.

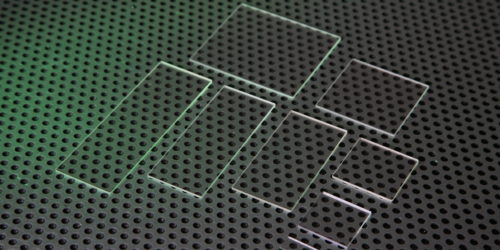

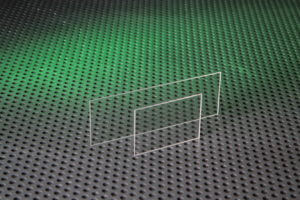

UQG optics Calcium Fluoride (CaF2) microscope slides and plates are made as squares and rectangles to a standard stock range or custom made to your design.
Please contact our sales team.
View RoHS Statement
| Dimensions: | Squares/Rectangles 1mm x 1mm to 100mm x 100mm & standard microscope sizes |
| Thickness Range: | 0.20mm to 3mm thick |
| Surface Quality: | 80/50 to 20/10 scratch/dig |
| Surface Flatness: | Up to 1 fringe (@633nm) |
| Material Options: | VUV grade, IR grade Monocrystalline & Polycrystalline |
| Coating Options: | AR coatings |
Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.
Part numbers listed with enquire, please contact us for prices & delivery times.
Select Your Currency:
| Part No | Data sheet |
Description | Dimensions (mm) | Thickness (mm) | Unit price (1-10) excl. VAT |
Qty |
Qty (10+)Volume pricing available for 10+, please add to quote. |
|---|---|---|---|---|---|---|---|
| CMI-7525 | IR Grade CaF2 Microscope Slide | 75 x 25 | 1 | $62.10 | |||
| CMI-7626 | IR Grade CaF2 Microscope Slide | 76 x 26 | 1 | $62.10 | |||
| CMR-2525 | Raman Grade CaF2 Microscope Slide | 25 x 25 | 1 | $87.75 | |||
| CMR-3826 | Raman Grade CaF2 Microscope Slide | 38 x 26 | 1 | $132.30 | |||
| CMR-7525 | Raman Grade CaF2 Microscope Slide | 75 x 25 | 1 | $172.80 | |||
| CMR-7626 | Raman Grade CaF2 Microscope Slide | 76 x 26 | 1 | $172.80 | |||
| CMS-3826 | UV/IR CaF2 Microscope Slide | 38 x 26 | 1 | $83.70 | |||
| CMS-7525 | UV/IR CaF2 Microscope Slide | 75 x 25 | 0.50 | $182.25 | |||
| CMS-7521 | UV/IR CaF2 Microscope Slide | 75 x 25 | 1 | $93.15 | |||
| CMS-7626 | UV/IR CaF2 Microscope Slide | 76 x 26 | 1 | $93.15 |
Part Number
CMI-7626
IR Grade CaF2 Microscope Slide
PDF Data sheet
Dimensions (mm) 76 x 26
Thickness (mm) 1
UNIT PRICE (1-10)
$62.10 Inc. VAT
Part Number
CMI-7525
IR Grade CaF2 Microscope Slide
PDF Data sheet
Dimensions (mm) 75 x 25
Thickness (mm) 1
UNIT PRICE (1-10)
$62.10 Inc. VAT
Part Number
CMR-7626
Raman Grade CaF2 Microscope Slide
PDF Data sheet
Dimensions (mm) 76 x 26
Thickness (mm) 1
UNIT PRICE (1-10)
$172.80 Inc. VAT
Part Number
CMR-7525
Raman Grade CaF2 Microscope Slide
PDF Data sheet
Dimensions (mm) 75 x 25
Thickness (mm) 1
UNIT PRICE (1-10)
$172.80 Inc. VAT
Part Number
CMR-3826
Raman Grade CaF2 Microscope Slide
PDF Data sheet
Dimensions (mm) 38 x 26
Thickness (mm) 1
UNIT PRICE (1-10)
$132.30 Inc. VAT
Part Number
CMR-2525
Raman Grade CaF2 Microscope Slide
PDF Data sheet
Dimensions (mm) 25 x 25
Thickness (mm) 1
UNIT PRICE (1-10)
$87.75 Inc. VAT
Part Number
CMS-3826
UV/IR CaF2 Microscope Slide
PDF Data sheet
Thickness (mm) 1
Dimensions (mm) 38 x 26
UNIT PRICE (1-10)
$83.70 Inc. VAT
Part Number
CMS-7525
UV/IR CaF2 Microscope Slide
PDF Data sheet
Dimensions (mm) 75 x 25
Thickness (mm) 0.50
UNIT PRICE (1-10)
$182.25 Inc. VAT
Part Number
CMS-7626
UV/IR CaF2 Microscope Slide
PDF Data sheet
Thickness (mm) 1
Dimensions (mm) 76 x 26
UNIT PRICE (1-10)
$93.15 Inc. VAT
Part Number
CMS-7521
UV/IR CaF2 Microscope Slide
PDF Data sheet
Dimensions (mm) 75 x 25
Thickness (mm) 1
UNIT PRICE (1-10)
$93.15 Inc. VAT
