Hoya Filters - Blue & Green Colour Glass

UQG Hoya colour glass filters blue and green, are absorptive filter glasses transmitting a range of blue and green wavelengths. The blue filter is used for 3 colour separations, colour compensation and a selection of wavelengths. Hoya Green colour glass filters transmit a relatively narrow wavelength band centred around light in the green spectrum and are named after the wavelength at which their transmittance attains the maximum value. Widely used in medical equipment, night vision, telecommunication, imaging, machine vision, calibration and scientific and electronic instrumentation.

UQG Optics stock diameters and squares and custom make to a smaller or larger dimension with the options of additional coatings.

Please contact our sales team or view all our colour glass filters.

View RoHS Statement

Dimensions:	Diameters 4mm to 160mm
	Squares/Rectangles 1mm x 1mm to 165mm x 165mm
Thickness Range:	0.50mm to 8mm (subject to dimension)
Edge Finish:	As cut/chamfered or ground
Surface Flatness:	Up to lambda 4 (@633nm)
Surface Finish:	80/50 to 40/20 Scratch/Dig
Parallelism:	Up to 1 arc min
Material Options:	Commercial grade, optical glass filters for larger sizes over 160mm x 160mm
	Low cost optical filter range for less demanding applications (data sheet on request)
Coating Options:	MgF2 protective coatings, AR coatings, bandpass & blocking optical coatings
Options:	Additional filter types, combination of 2 laminated filters, toughening, storage boxes, mounts & holders, calibration certificates, identification labels & transmission curves

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

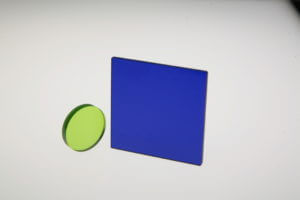

Hoya Filters Blue & Green Colour Glass Stock

Material:

HOYA® Filter Glass

Dimension Tolerance:

+0.00 / -0.20mm

Thickness Tolerance:

± 0.10mm

Edge Finish:

Fine ground

Surface Quality:

60/40 Scratch/Dig

Surface Flatness:

≤ 5 fringes

Parallelism:

≤ 3 Arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

Part No	Data sheet	Description	Dimensions (mm)	Thickness (mm)	Unit price (1-10) excl. VAT	Qty	Qty (10+)Volume pricing available for 10+, please add to quote.
HFG-5305	PDF	Hoya G530	Ø 12.50	2.5	£18.00	QTY Hoya G530 quantity	Added to Quote
HFG-5505	PDF	Hoya G550	Ø 12.50	2.5	£18.00	QTY Hoya G550 quantity	Added to Quote
HFG-5325	PDF	Hoya G530	Ø 25	2.5	£35.00	QTY Hoya G530 quantity	Added to Quote
HFG-5525	PDF	Hoya G550	Ø 25	2.5	£35.00	QTY Hoya G550 quantity	Added to Quote
HFG-5350	PDF	Hoya G530	50 x 50	2.5	£75.00	QTY Hoya G530 quantity	Added to Quote
HFG-5550	PDF	Hoya G550	50 x 50	2.5	£75.00	QTY Hoya G550 quantity	Added to Quote
HFB-3705	PDF	Hoya B370	Ø 12.50	2.5	£18.00	QTY Hoya B370 quantity	Added to Quote
HFB-3905	PDF	Hoya B390	Ø 12.50	2.5	£18.00	QTY Hoya B390 quantity	Added to Quote
HFB-4105	PDF	Hoya B410	Ø 12.50	2.5	£18.00	QTY Hoya B410 quantity	Added to Quote
HFB-4405	PDF	Hoya B440	Ø 12.50	2.5	£18.00	QTY Hoya B440 quantity	Added to Quote
HFB-4605	PDF	Hoya B460	Ø 12.50	2.5	£18.00	QTY Hoya B460 quantity	Added to Quote
HFB-3725	PDF	Hoya B370	Ø 25	2.5	£32.00	QTY Hoya B370 quantity	Added to Quote
HFB-3925	PDF	Hoya B390	Ø 25	2.5	£32.00	QTY Hoya B390 quantity	Added to Quote
HFB-4125	PDF	Hoya B410	Ø 25	2.5	£32.00	QTY Hoya B410 quantity	Added to Quote
HFB-4425	PDF	Hoya B440	Ø 25	2.5	£32.00	QTY Hoya B440 quantity	Added to Quote
HFB-4625	PDF	Hoya B460	Ø 25	2.5	£32.00	QTY Hoya B460 quantity	Added to Quote
HFB-3750	PDF	Hoya B370	50 x 50	2.5	£55.00	QTY Hoya B370 quantity	Added to Quote
HFB-3950	PDF	Hoya B390	50 x 50	2.5	£55.00	QTY Hoya B390 quantity	Added to Quote
HFB-4150	PDF	Hoya B410	50 x 50	2.5	£55.00	QTY Hoya B410 quantity	Added to Quote
HFB-4450	PDF	Hoya B440	50 x 50	2.5	£55.00	QTY Hoya B440 quantity	Added to Quote
HFB-4650	PDF	Hoya B460	50 x 50	2.5	£55.00	QTY Hoya B460 quantity	Added to Quote

Part Number

HFG-5305

Hoya G530

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-10)

£18.00 Inc. VAT

Part Number

HFG-5505

Hoya G550

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-10)

£18.00 Inc. VAT

Part Number

HFG-5325

Hoya G530

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£35.00 Inc. VAT

Part Number

HFG-5525

Hoya G550

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£35.00 Inc. VAT

Part Number

HFG-5350

Hoya G530

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£75.00 Inc. VAT

Part Number

HFG-5550

Hoya G550

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£75.00 Inc. VAT

Part Number

HFB-3705

Hoya B370

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-10)

£18.00 Inc. VAT

Part Number

HFB-3905

Hoya B390

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-10)

£18.00 Inc. VAT

Part Number

HFB-4105

Hoya B410

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-10)

£18.00 Inc. VAT

Part Number

HFB-4405

Hoya B440

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-10)

£18.00 Inc. VAT

Part Number

HFB-4605

Hoya B460

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 12.50

UNIT PRICE (1-10)

£18.00 Inc. VAT

Part Number

HFB-3725

Hoya B370

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£32.00 Inc. VAT

Part Number

HFB-3925

Hoya B390

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£32.00 Inc. VAT

Part Number

HFB-4125

Hoya B410

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£32.00 Inc. VAT

Part Number

HFB-4425

Hoya B440

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£32.00 Inc. VAT

Part Number

HFB-4625

Hoya B460

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) Ø 25

UNIT PRICE (1-10)

£32.00 Inc. VAT

Part Number

HFB-3750

Hoya B370

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£55.00 Inc. VAT

Part Number

HFB-3950

Hoya B390

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£55.00 Inc. VAT

Part Number

HFB-4150

Hoya B410

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£55.00 Inc. VAT

Part Number

HFB-4450

Hoya B440

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£55.00 Inc. VAT

Part Number

HFB-4650

Hoya B460

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 50 x 50

UNIT PRICE (1-10)

£55.00 Inc. VAT
