For a quote on your custom requirements please send us your drawing or specification.

Quartz Rods

UQG Optics Light Guide Quartz Rods have the ends optically polished which act to steer and transmit light down the rod. Made from a drawn Quartz material in various grades the material has a good chemical resistance and high thermal shock. It also has a low thermal expansion so can withstand very high temperatures making it perfect for industrial and scientific applications. Used primarily as a light guide, the end surfaces have high polished parallel surface and is supplied in a wide range of standard diameters. For higher precision optical grade material the rods can be made from an optical range of materials. Rod lenses can be polished in various diameters for precise focal lengths.

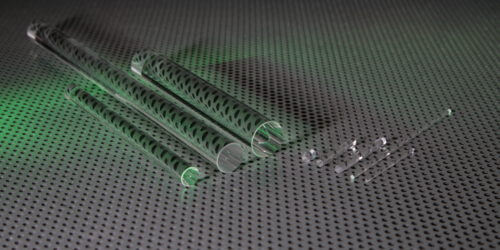

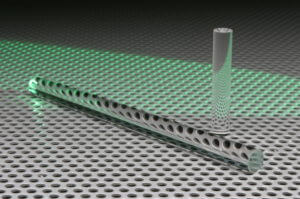

UQG Optics stock Quartz Rods in various sizes and lengths. Custom rods can have the ends blackened, diffused and optically polished or angled.

Please contact our sales team.

Dimensions: Diameter 1mm to 50mm
Length: 10mm to 1metre
End Surfaces: Radiused, angled, ground or AR coated
Circumference: Diffused, blackened or optically polished
Material Options: Quartz, Soda Glass, Borosilicate & UV Fused Silica

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Quartz - Drawn Rod Heraeus HSQ100
Dimension Tolerance:
± 0.20mm
Finish:
Circumference transparent
End Surfaces:
60/40

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Diameter (mm)Dimensions (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
QRL-310 PDF Quartz Rod Ø 310 £12.00
QTY
Added. View quote
QRL-325 PDF Quartz Rod Ø 325 £14.50
QTY
Added. View quote
QRL-525 PDF Quartz Rod Ø 525 £19.00
QTY
Added. View quote
QRL-550 PDF Quartz Rod Ø 550 £23.00
QTY
Added. View quote
QRL-110 PDF Quartz Rod Ø 10100 £63.00
QTY
Added. View quote
QRL-150 PDF Quartz Rod Ø 10150 £68.00
QTY
Added. View quote

Part Number

QRL-310

Quartz Rod

PDF Data sheet

Diameter (mm) Ø 3

Dimensions (mm) 10

Focal Length (mm) 0

UNIT PRICE (1-50)

£12.00 Inc. VAT

QTY

Part Number

QRL-325

Quartz Rod

PDF Data sheet

Diameter (mm) Ø 3

Dimensions (mm) 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£14.50 Inc. VAT

QTY

Part Number

QRL-525

Quartz Rod

PDF Data sheet

Diameter (mm) Ø 5

Dimensions (mm) 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£19.00 Inc. VAT

QTY

Part Number

QRL-550

Quartz Rod

PDF Data sheet

Diameter (mm) Ø 5

Dimensions (mm) 50

Focal Length (mm) 0

UNIT PRICE (1-50)

£23.00 Inc. VAT

QTY

Part Number

QRL-110

Quartz Rod

PDF Data sheet

Diameter (mm) Ø 10

Dimensions (mm) 100

Focal Length (mm) 0

UNIT PRICE (1-50)

£63.00 Inc. VAT

QTY

Part Number

QRL-150

Quartz Rod

PDF Data sheet

Diameter (mm) Ø 10

Dimensions (mm) 150

Focal Length (mm) 0

UNIT PRICE (1-50)

£68.00 Inc. VAT
