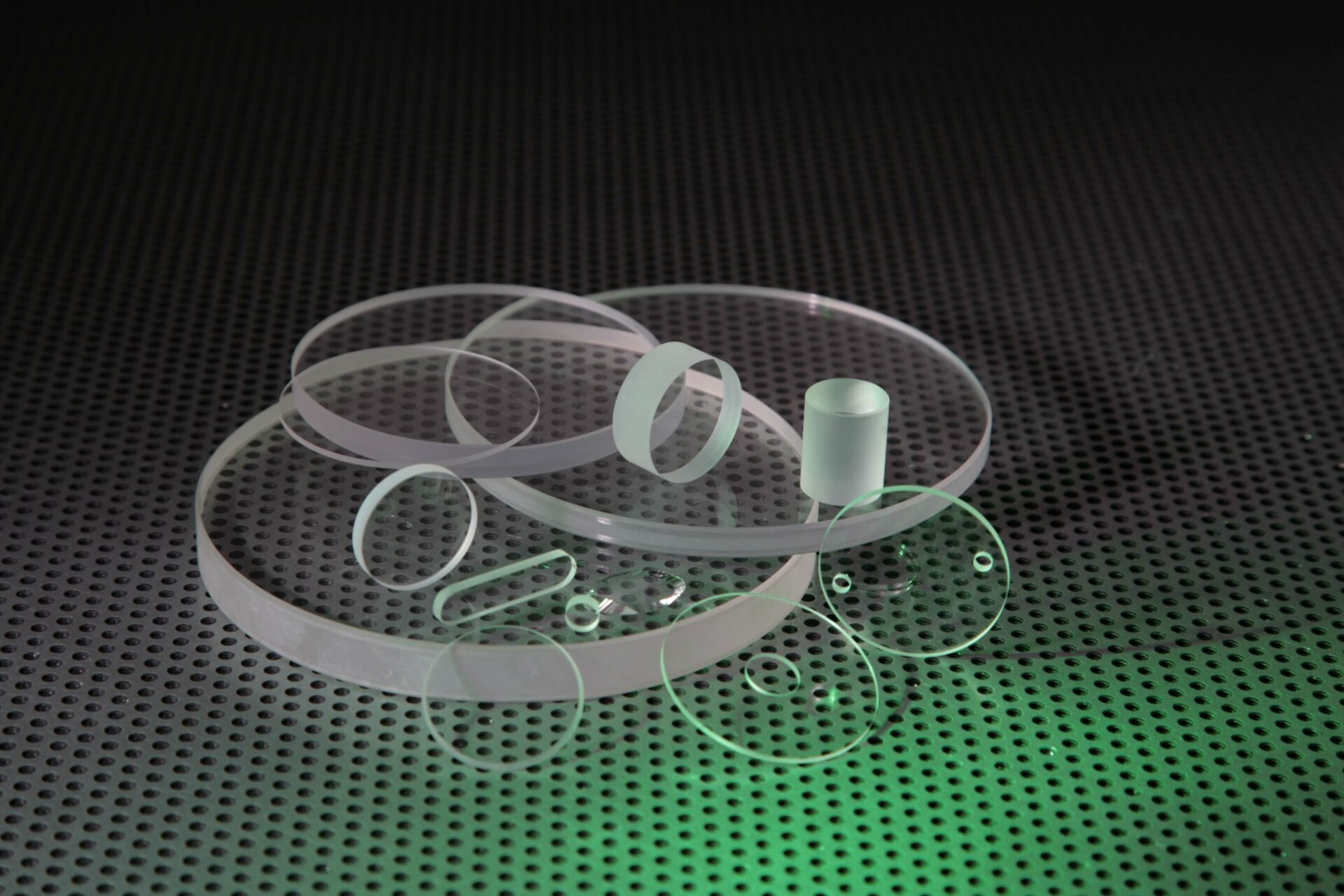

For a quote on your custom requirements please send us your drawing or specification.

UV Diffusers Windows & Plates

UQG Optics UV Fused Silica diffusers are manufactured in a range of Fused Silica for use in the (UV) ultraviolet, (VIS) visible and (IR) infrared regions.  UV grade fused silica  transmission range is from 175nm – 2700nm. UV Glass diffusers diffuse the incoming light and reduce directionality in the beam. Ground glasses are useful for focusing screens and weak diffusion illumination systems. It is ideal for rear projection and a variety of optical applications in science and industry.

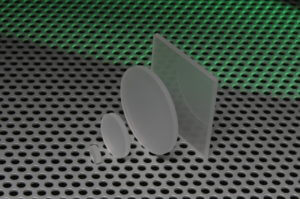

UQG Optics UV glass diffusers come in stock sizes of diameters and squares. Custom diffusers can be made to a range of surface roughness/diffusions from fine etched micron surfaces to course grit grinding or sandblasted.

Please contact our sales team.

Dimensions: Diameters 5mm to 300mm
Squares/Rectangles 1mm x 1mm to 250mm x 250mm
Thickness Range: 1mm to 10mm (subject to dimension)
Diffused Surface: 10-100 microns - 15 grades
Material Options: Corning 7980 class O grade F & Heraeus Spectrosil 2000®
Options: Shapes, holes & bevels

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
UV Fused Silica - Spectrosil 2000®
Dimension Tolerance:
± 0.20mm
Thickness Tolerance:
± 0.10mm
Edge Finish:
Fine ground
Surface Quality:
60/40 Scratch/Dig
Diffused Surface:
Ground 35 micron one side

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
DUV-0510 PDF UV Diffuser Ø 51 £15.20
QTY
Added. View quote
DUV-0610 PDF UV Diffuser Ø 61 £16.50
QTY
Added. View quote
DUV-1010 PDF UV Diffuser Ø 101 £10.00
QTY
Added. View quote
DUV-1030 PDF UV Diffuser Ø 103 £10.50
QTY
Added. View quote
DUV-1220 PDF UV Diffuser Ø 12.52 £17.80
QTY
Added. View quote
DUV-1520 PDF UV Diffuser Ø 152 £14.50
QTY
Added. View quote
DUV-1530 PDF UV Diffuser Ø 153 £13.00
QTY
Added. View quote
DUV-2510 PDF UV Diffuser Ø 251 £24.00
QTY
Added. View quote
DUV-2520 PDF UV Diffuser Ø 252 £21.00
QTY
Added. View quote
DUV-2530 PDF UV Diffuser Ø 253 £22.00
QTY
Added. View quote
DUV-4030 PDF UV Diffuser Ø 403 £32.00
QTY
Added. View quote
DUV-5030 PDF UV Diffuser Ø 503 £43.00
QTY
Added. View quote
DUV-7530 PDF UV Diffuser Ø 753 £130.00
QTY
Added. View quote
DUV-1003 PDF UV Diffuser Ø 1003 £215.00
QTY
Added. View quote
DUV-1011 PDF UV Diffuser 10 x 101 £14.00
QTY
Added. View quote
DUV-2522 PDF UV Diffuser 25 x 252 £28.00
QTY
Added. View quote
DUV-2525 PDF UV Diffuser 25 x 253 £29.00
QTY
Added. View quote
DUV-5052 PDF UV Diffuser 50 x 502 £31.00
QTY
Added. View quote
DUV-5050 PDF UV Diffuser 50 x 503 £32.00
QTY
Added. View quote
DUV-7575 PDF UV Diffuser 75 x 753 £130.00
QTY
Added. View quote
DUV-1103 PDF UV Diffuser 100 x 1003 £210.00
QTY
Added. View quote
DUV-1503 PDF UV Diffuser 150 x 1503 £330.00
QTY
Added. View quote

Part Number

DUV-0510

UV Diffuser

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 5

UNIT PRICE (1-50)

£15.20 Inc. VAT

QTY

Part Number

DUV-0610

UV Diffuser

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 6

UNIT PRICE (1-50)

£16.50 Inc. VAT

QTY

Part Number

DUV-1010

UV Diffuser

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 10

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

DUV-1030

UV Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 10

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.50 Inc. VAT

QTY

Part Number

DUV-1220

UV Diffuser

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

UNIT PRICE (1-50)

£17.80 Inc. VAT

QTY

Part Number

DUV-1520

UV Diffuser

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 15

UNIT PRICE (1-50)

£14.50 Inc. VAT

QTY

Part Number

DUV-1530

UV Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 15

Focal Length (mm) 0

UNIT PRICE (1-50)

£13.00 Inc. VAT

QTY

Part Number

DUV-2510

UV Diffuser

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£24.00 Inc. VAT

QTY

Part Number

DUV-2520

UV Diffuser

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£21.00 Inc. VAT

QTY

Part Number

DUV-2530

UV Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£22.00 Inc. VAT

QTY

Part Number

DUV-4030

UV Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 40

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

DUV-5030

UV Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-50)

£43.00 Inc. VAT

QTY

Part Number

DUV-7530

UV Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 75

UNIT PRICE (1-50)

£130.00 Inc. VAT

QTY

Part Number

DUV-1003

UV Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 100

UNIT PRICE (1-50)

£215.00 Inc. VAT

QTY

Part Number

DUV-1011

UV Diffuser

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 10 x 10

UNIT PRICE (1-50)

£14.00 Inc. VAT

QTY

Part Number

DUV-2522

UV Diffuser

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£28.00 Inc. VAT

QTY

Part Number

DUV-2525

UV Diffuser

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-50)

£29.00 Inc. VAT

QTY

Part Number

DUV-5052

UV Diffuser

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£31.00 Inc. VAT

QTY

Part Number

DUV-5050

UV Diffuser

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

DUV-7575

UV Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 75 x 75

UNIT PRICE (1-50)

£130.00 Inc. VAT

QTY

Part Number

DUV-1103

UV Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 100 x 100

UNIT PRICE (1-50)

£210.00 Inc. VAT

QTY

Part Number

DUV-1503

UV Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 150 x 150

UNIT PRICE (1-50)

£330.00 Inc. VAT

QTY
