Glass Diffusers Windows & Plates

UQG Optics Glass Diffusers window and plates diffuse the incoming light and reduce the directionality in the beam. Ground glasses are useful for focusing screens and weak diffusion illumination systems. These windows and plates are ideal for rear projection and a variety of optical applications.

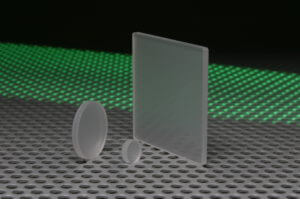

UQG Optics Glass Diffusers come in a stock range of diameters and squares. Custom Glass Diffusers can be made to a range of surface roughness/diffusion from fine etched micron surfaces to course grit grinding or sandblasted. Shapes, holes and bevels can also be custom made in this glass. Other materials include UV Fused Silica, Quartz and Optical glasses.

Please contact our sales team.

Dimensions: Diameter: 5mm to 800mm
Squares/Rectangles up to 1150mm x 850mm
Thickness Range: 0.5mm to 21mm (subject to dimensions)
Diffused Surface: 10-100 microns - 15 grades
Options: Shapes, holes & bevels

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Borosilicate - Borofloat®
Dimension Tolerance:
+0.00/-0.20mm
Thickness Tolerance:
+0.25/ -0.00mm
Edge Finish:
Fine ground
Diffused Surface:
Ground 35 micron
Second Surface:
80/50 Scratch/Dig

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
DBG-1030 PDF Glass Diffuser Ø 103 £6.00
QTY
Added. View quote
DBG-1253 PDF Glass Diffuser Ø 12.503 £6.50
QTY
Added. View quote
DBG-2553 PDF Glass Diffuser Ø 253 £7.00
QTY
Added. View quote
DBG-4300 PDF Glass Diffuser Ø 403 £8.50
QTY
Added. View quote
DBG-5300 PDF Glass Diffuser Ø 503 £11.50
QTY
Added. View quote
DBG-5500 PDF Glass Diffuser 50 x 503 £14.50
QTY
Added. View quote

Part Number

DBG-1030

Glass Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 10

Focal Length (mm) 0

UNIT PRICE (1-50)

£6.00 Inc. VAT

QTY

Part Number

DBG-1253

Glass Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 12.50

Focal Length (mm) 0

UNIT PRICE (1-50)

£6.50 Inc. VAT

QTY

Part Number

DBG-2553

Glass Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£7.00 Inc. VAT

QTY

Part Number

DBG-4300

Glass Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 40

Focal Length (mm) 0

UNIT PRICE (1-50)

£8.50 Inc. VAT

QTY

Part Number

DBG-5300

Glass Diffuser

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-50)

£11.50 Inc. VAT

QTY

Part Number

DBG-5500

Glass Diffuser

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-50)

£14.50 Inc. VAT

QTY
