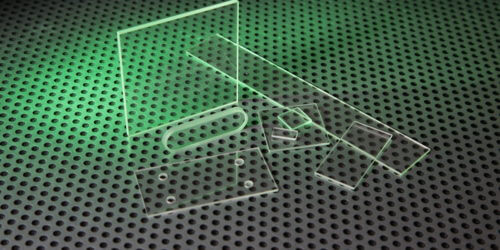

UV Fused Silica Plates

UQG optics supply UV Fused Silica plates and substrates.  The material has excellent purity, no fluorescence and high transmission in the DUV, UV and IR region from 180nm to 2000nm. The optical grade Fused Silica is virtually bubble free with resistance to chemicals and withstanding high temperatures and thermal shock. UQG Optics process many grades from global manufactures. These can be large Fused Silica plates for industrial scientific applications to precision beamsplitters. Stock thicknesses in the range are from 0.50mm to 6mm but these can be made a lot thinner with thicknesses below 0.50mm. A range below this is UV Fused Silica coverslips with thicknesses down to 0.10mm thick.

Please contact our sales team.

Dimensions: Squares/Rectangles 1mm x 1mm to 300mm x 300mm
Thickness: 0.1mm to 50mm (subject to dimension)
Dimension/Thickness: Tol to 0.02mm
Edge Thickness: Ground or polished
Surface Quality: 80/50 to 20/10 scratch/dig
Surface Flatness: Up to lambda 10 (@633nm)
Parallelism: Up to 10 seconds
Material Options: Corning HPFS 7980, KrF & ArF grade, Commercial Grade UV Silica & Heraeus Spectrosil 2000®, Heraeus Suprasil® I, 2 grade A & B, 311, 312, 3001, 3002
Coating Options: AR coatings from 193nm to 2000nm
Options: Edges polished, wedges, shapes, drilled holes & bevelled angles

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

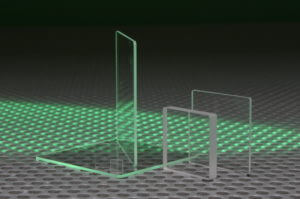

Material:
UV Fused Silica - Spectrosil 2000®
Dimension Tolerance:
+/-0.10mm
Thickness Tolerance:
+/-0.10mm
Edge Finish:
Fine ground & chamfered
Surface Quality:
40/20 Scratch/Dig
Surface Flatness:
3-5 Fringes (@633nm) per 25mm x 25mm
Parallelism:
≤ 5 Arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
PFS-111 PDF UV Fused Silica Plate 1 x 11 £7.00
QTY
Added. View quote
PFS-251 PDF UV Fused Silica Plate 2.5 x 2.51 £8.00
QTY
Added. View quote
PFS-551 PDF UV Fused Silica Plate 5 x 51 £10.00
QTY
Added. View quote
PFS-1010 PDF UV Fused Silica Plate 10 x 101 £12.00
QTY
Added. View quote
PFS-1212 PDF UV Fused Silica Plate 12 x 121 £14.00
QTY
Added. View quote
PFS-1551 PDF UV Fused Silica Plate 15 x 151 £16.50
QTY
Added. View quote
PFS-2021 PDF UV Fused Silica Plate 20 x 201 £18.00
QTY
Added. View quote
PFS-2525 PDF UV Fused Silica Plate 25 x 250.50 £27.00
QTY
Added. View quote
PFS-2521 PDF UV Fused Silica Plate 25 x 251 £22.00
QTY
Added. View quote
PFS-2522 PDF UV Fused Silica Plate 25 x 252 £26.00
QTY
Added. View quote
PFS-2523 PDF UV Fused Silica Plate 25 x 253 £28.00
QTY
Added. View quote
PFS-3031 PDF UV Fused Silica Plate 30 x 301 £31.00
QTY
Added. View quote
PFS-5005 PDF UV Fused Silica Plate 50 x 500.50 £42.00
QTY
Added. View quote
PFS-5051 PDF UV Fused Silica Plate 50 x 501 £36.00
QTY
Added. View quote
PFS-5052 PDF UV Fused Silica Plate 50 x 502 £29.00
QTY
Added. View quote
PFS-5053 PDF UV Fused Silica Plate 50 x 503 £39.00
QTY
Added. View quote
PFS-7571 PDF UV Fused Silica Plate 75 x 751 £130.00
QTY
Added. View quote
PFS-7572 PDF UV Fused Silica Plate 75 x 752 £100.00
QTY
Added. View quote
PFS-7573 PDF UV Fused Silica Plate 75 x 753 £110.00
QTY
Added. View quote
PFS-1001 PDF UV Fused Silica Plate 100 x 1001.10 £255.00
QTY
Added. View quote
PFS-1002 PDF UV Fused Silica Plate 100 x 1002 £170.00
QTY
Added. View quote
PFS-1003 PDF UV Fused Silica Plate 100 x 1003 £180.00
QTY
Added. View quote
PFS-1006 PDF UV Fused Silica Plate 100 x 1006 £190.00
QTY
Added. View quote
PFS-1503 PDF UV Fused Silica Plate 150 x 1503 £240.00
QTY
Added. View quote
PFS-1506 PDF UV Fused Silica Plate 150 x 1506 £290.00
QTY
Added. View quote

Part Number

PFS-111

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 1 x 1

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£7.00 Inc. VAT

QTY

Part Number

PFS-251

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 2.5 x 2.5

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£8.00 Inc. VAT

QTY

Part Number

PFS-551

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 5 x 5

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

PFS-1010

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 10 x 10

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£12.00 Inc. VAT

QTY

Part Number

PFS-1212

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 12 x 12

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£14.00 Inc. VAT

QTY

Part Number

PFS-1551

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 15 x 15

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.50 Inc. VAT

QTY

Part Number

PFS-2021

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 20 x 20

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

PFS-2525

UV Fused Silica Plate

PDF Data sheet

Thickness (mm) 0.50

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£27.00 Inc. VAT

QTY

Part Number

PFS-2521

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£22.00 Inc. VAT

QTY

Part Number

PFS-2522

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 2

Focal Length (mm) 0

UNIT PRICE (1-50)

£26.00 Inc. VAT

QTY

Part Number

PFS-2523

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-50)

£28.00 Inc. VAT

QTY

Part Number

PFS-3031

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 30 x 30

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£31.00 Inc. VAT

QTY

Part Number

PFS-5005

UV Fused Silica Plate

PDF Data sheet

Thickness (mm) 0.50

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£42.00 Inc. VAT

QTY

Part Number

PFS-5051

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1

Focal Length (mm) 0

UNIT PRICE (1-50)

£36.00 Inc. VAT

QTY

Part Number

PFS-5052

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

Focal Length (mm) 0

UNIT PRICE (1-50)

£29.00 Inc. VAT

QTY

Part Number

PFS-5053

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-50)

£39.00 Inc. VAT

QTY

Part Number

PFS-7571

UV Fused Silica Plate

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 75 x 75

UNIT PRICE (1-50)

£130.00 Inc. VAT

QTY

Part Number

PFS-7572

UV Fused Silica Plate

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 75 x 75

UNIT PRICE (1-50)

£100.00 Inc. VAT

QTY

Part Number

PFS-7573

UV Fused Silica Plate

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 75 x 75

UNIT PRICE (1-50)

£110.00 Inc. VAT

QTY

Part Number

PFS-1001

UV Fused Silica Plate

PDF Data sheet

Dimensions (mm) 100 x 100

Thickness (mm) 1.10

UNIT PRICE (1-50)

£255.00 Inc. VAT

QTY

Part Number

PFS-1002

UV Fused Silica Plate

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 100 x 100

UNIT PRICE (1-50)

£170.00 Inc. VAT

QTY

Part Number

PFS-1003

UV Fused Silica Plate

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 100 x 100

UNIT PRICE (1-50)

£180.00 Inc. VAT

QTY

Part Number

PFS-1006

UV Fused Silica Plate

PDF Data sheet

Thickness (mm) 6

Dimensions (mm) 100 x 100

UNIT PRICE (1-50)

£190.00 Inc. VAT

QTY

Part Number

PFS-1503

UV Fused Silica Plate

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 150 x 150

UNIT PRICE (1-50)

£240.00 Inc. VAT

QTY

Part Number

PFS-1506

UV Fused Silica Plate

PDF Data sheet

Thickness (mm) 6

Dimensions (mm) 150 x 150

UNIT PRICE (1-50)

£290.00 Inc. VAT

QTY
