For a quote on your custom requirements please send us your drawing or specification.

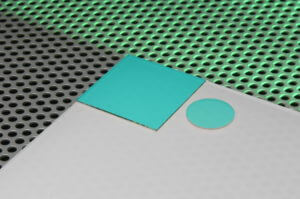

IR Cut Off Filters

UQG IR cut off filters block the infrared transmissions while allowing the visible light to pass through. They produce true colour appearance and avoiding colour deviation, they keep the primary colours display natural and vivid reality.

As they are ideal filters to block undesired light, they are often used in different types of cameras.

UQG Optics stock a wide range of windows and plates which are AR coated both sides and custom made filters in various materials such as Fused Silica, optical glass and Fused Quartz.

Please contact our sales team.

Dimensions: Diameters 5mm to 400mm
Squares/Rectangles 1mm x 1mm to 300mm x 300mm
Thickness Range: 0.30mm to 2.00mm (subject to dimension)
Material Options: Fused Silica, optical glass & Fused Quartz
Coating Options: AOI 45° & 0°

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Float Glass 1.10 coated IRC-09 DESAG D 263®T eco Thin Glass 0.30 & 0.55 coated IRC-09
Dimension Tolerance:
Diameters +0.00/-0.20mm
Squares:±0.20mm
Thickness Tolerance:
1.10 ±0.10mm 0.55 ±0.05mm
Edge Finish:
Diameters ground squares as cut/chamfered
Squares as cut/chamfered
Spectral Data:
VIS Transmission 420-620nm Tmin.>85% Tavg.>90%
IR reflection 700-1000nm Tmax<3%
1000-1100nm Tmax<5%
Transmission 50% @ 645nm(±10nm)
Broadband AR Coated both sides
Angle of Incidence:

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
ICF-0501 PDF IR-Cut Off Filter Ø51.10 £14.00
QTY
Added. View quote
ICF-1010 PDF IR-Cut Off Filter Ø101.10 £12.00
QTY
Added. View quote
ICF-1251 PDF IR-Cut Off Filter Ø12.501.10 £13.55
QTY
Added. View quote
ICF-1510 PDF IR-Cut Off Filter Ø151.10 £15.90
QTY
Added. View quote
ICF-2010 PDF IR Cut Off Filter Ø201.10 £20.00
QTY
Added. View quote
ICF-2510 PDF IR-Cut Off Filter Ø 251.10 £20.40
QTY
Added. View quote
ICF-5001 PDF IR-Cut Off Filter Ø501.10 £34.90
QTY
Added. View quote
ICF-0551 PDF IR-Cut Off Filter 5 x 51.10 £8.45
QTY
Added. View quote
ICF-1011 PDF IR-Cut Off Filter 10 x 101.10 £10.90
QTY
Added. View quote
ICF-1212 PDF IR Cut Off Filter 12 x 121.10 £12.45
QTY
Added. View quote
ICF-1515 PDF IR-Cut Off Filter 15 x 151.10 £13.90
QTY
Added. View quote
ICF-2521 PDF IR-Cut Off Filter 25 x 251.10 £17.90
QTY
Added. View quote
ICF-5030 PDF IR-Cut Off Filter 50 x 500.30 £54.00
QTY
Added. View quote
ICF-5055 PDF IR-Cut Off Filter 50 x 500.55 £31.90
QTY
Added. View quote
ICF-5051 PDF IR-Cut Off Filter 50 x 501.10 £34.00
QTY
Added. View quote
ICF-1001 PDF IR Cut Off Filter 100 x 1001.10 £115.00
QTY
Added. View quote

Part Number

ICF-0501

IR-Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø5

Focal Length (mm) 0

UNIT PRICE (1-50)

£14.00 Inc. VAT

QTY

Part Number

ICF-1010

IR-Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø10

Focal Length (mm) 0

UNIT PRICE (1-50)

£12.00 Inc. VAT

QTY

Part Number

ICF-1251

IR-Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø12.50

Focal Length (mm) 0

UNIT PRICE (1-50)

£13.55 Inc. VAT

QTY

Part Number

ICF-1510

IR-Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø15

UNIT PRICE (1-50)

£15.90 Inc. VAT

QTY

Part Number

ICF-2010

IR Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø20

UNIT PRICE (1-50)

£20.00 Inc. VAT

QTY

Part Number

ICF-2510

IR-Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£20.40 Inc. VAT

QTY

Part Number

ICF-5001

IR-Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø50

Focal Length (mm) 0

UNIT PRICE (1-50)

£34.90 Inc. VAT

QTY

Part Number

ICF-0551

IR-Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 5 x 5

Focal Length (mm) 0

UNIT PRICE (1-50)

£8.45 Inc. VAT

QTY

Part Number

ICF-1011

IR-Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 10 x 10

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.90 Inc. VAT

QTY

Part Number

ICF-1212

IR Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 12 x 12

UNIT PRICE (1-50)

£12.45 Inc. VAT

QTY

Part Number

ICF-1515

IR-Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 15 x 15

Focal Length (mm) 0

UNIT PRICE (1-50)

£13.90 Inc. VAT

QTY

Part Number

ICF-2521

IR-Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£17.90 Inc. VAT

QTY

Part Number

ICF-5030

IR-Cut Off Filter

PDF Data sheet

Thickness (mm) 0.30

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£54.00 Inc. VAT

QTY

Part Number

ICF-5055

IR-Cut Off Filter

PDF Data sheet

Thickness (mm) 0.55

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£31.90 Inc. VAT

QTY

Part Number

ICF-5051

IR-Cut Off Filter

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1.10

Focal Length (mm) 0

UNIT PRICE (1-50)

£34.00 Inc. VAT

QTY

Part Number

ICF-1001

IR Cut Off Filter

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 100 x 100

UNIT PRICE (1-50)

£115.00 Inc. VAT

QTY
