For a quote on your custom requirements please send us your drawing or specification.

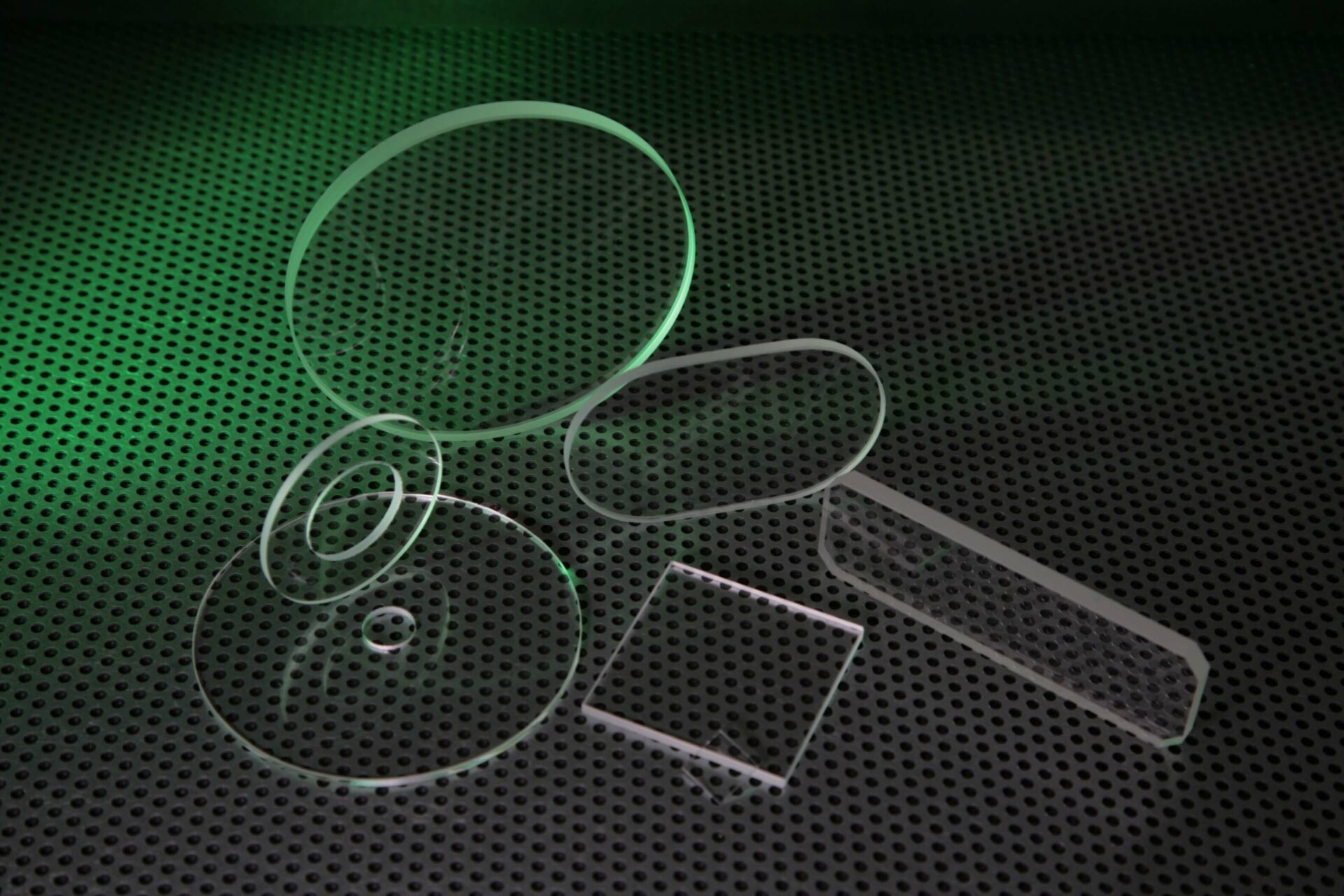

Borosilicate Windows & Plates - Optical

Borosilicate glass sheets are optically polished to provide outstanding visual quality and optical clarity. Optically polishing the surface to a precise surface finish and flatness can guarantee the quality of the optical surface unlike general float grade sheet glass Borosilicate materials. The glass has a very low CTE (Coefficient of Thermal Expansion) so can maintain high flatness to produce optical glass flats, optical glass screens, laser windows and mirrors. The mechanical strength makes it a good choice for special camera windows with high transparency in visible and near IR & UV range of wavelengths widely used in the fields of optics, photonics and opto-electronics.

Please contact our sales team.

View RoHS Statement

Dimensions:	Diameters 5mm to 400mm
	Squares/Rectangles 1mm x 1mm to 300mm x 300mm
Thickness Range:	0.10mm to 20mm thick (subject to dimension)
Dimension/Thickness:	Tol up to 0.02mm
Surface Quality:	80/50 to 20/10 scratch/Dig or & surfaces diffused
Surface Flatness:	Up to lambda 10 (@633nm)
Parallelism:	Up to 10 seconds
Coatings:	AR Coatings 400-2000nm, optical coatings & screen printing
Options:	Toughened, edges polished, blanks/cut pieces, drilled, bevelled angles, wedges & shapes

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:

Borosilicate Optically Polished Borofloat®

Dimension Tolerance:

+0.00/ -0.20mm

Thickness Tolerance:

± 0.10mm

Edge Finish:

Fine ground

Surface Quality:

60/40 Scratch/Dig

Surface Flatness:

≤ 5 Fringes (@633nm)

Parallelism:

≤ 3 Arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities.

Part numbers listed with enquire, please contact us for prices & delivery times.

Select Your Currency:

Part No	Data sheet	Description	Diameter (mm)	Thickness (mm)	Unit price (1-10) excl. VAT	Qty	Qty (10+)Volume pricing available for 10+, please add to quote.
WBO-101	PDF	Borosilicate Window	Ø 10	1	£7.00	QTY Borosilicate Window quantity	Added to Quote
WBO-102	PDF	Borosilicate Window	Ø 10	2	£7.00	QTY Borosilicate Window quantity	Added to Quote
WBO-121	PDF	Borosilicate Window	Ø12.5	1	£7.25	QTY Borosilicate Window quantity	Added to Quote
WBO-122	PDF	Borosilicate Window	Ø12.5	2	£7.40	QTY Borosilicate Window quantity	Added to Quote
WBO-152	PDF	Borosilicate Window	Ø 15	2	£7.25	QTY Borosilicate Window quantity	Added to Quote
WBO-202	PDF	Borosilicate Window	Ø 20	2	£9.00	QTY Borosilicate Window quantity	Added to Quote
WBO-251	PDF	Borosilicate Window	Ø 25	1	£9.00	QTY Borosilicate Window quantity	Added to Quote
WBO-252	PDF	Borosilicate Window	Ø 25	2	£7.50	QTY Borosilicate Window quantity	Added to Quote
WBO-253	PDF	Borosilicate Window	Ø 25	3	£8.00	QTY Borosilicate Window quantity	Added to Quote
WBO-403	PDF	Borosilicate Window	Ø 40	3	£12.50	QTY Borosilicate Window quantity	Added to Quote
WBO-501	PDF	Borosilicate Window	Ø 50	1	£17.00	QTY Borosilicate Window quantity	Added to Quote
WBO-502	PDF	Borosilicate Window	Ø 50	2	£14.00	QTY Borosilicate Window quantity	Added to Quote
WBO-503	PDF	Borosilicate Window	Ø 50	3	£15.00	QTY Borosilicate Window quantity	Added to Quote
WBO-506	PDF	Borosilicate Window	Ø 50	6	£19.00	QTY Borosilicate Window quantity	Added to Quote
WBO-5051	PDF	Borosilicate Window	50 x 50	1	£16.50	QTY Borosilicate Window quantity	Added to Quote
WBO-5052	PDF	Borosilicate Window	50 x 50	2	£16.50	QTY Borosilicate Window quantity	Added to Quote
WBO-5053	PDF	Borosilicate Window	50 x 50	3	£18.90	QTY Borosilicate Window quantity	Added to Quote
