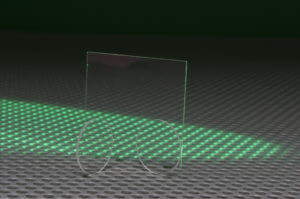

ITO Glass Windows & Plates

UQG optics ITO glass windows and plates are indium tin oxide for an electrically conductive coating. ITO coated glass is stocked in standard sizes or custom cut from larger sheets. The materials are either Float glass or Schott Borosilicate. These are coated by two processes either a hot or cold ITO coating depending on the resistivity, below 8 ohms/sq is the hot process and above 8 ohms/sq room temperature is the cold process. A standard range of resistivity’s are stocked in 4.5 ohms/sq, 8-12 ohms/sq, 15 ohms/sq, 12-15 ohms/sq and 50 ohmsq/sq. Some grades of polished Float glass have a 20nm SiO2 barrier layer and coated for smooth surfaces for OLED applications.

Custom options include busbar strips, OLED grade index matched ITO AR coatings and sheet resistance from 2.50 to 1000 ohms/sq. The ITO is widely used in displays, EMC/EMI/RFI shielding, circuit substrates, de-icing windows and research.

Please contact our sales team.

Dimensions: Diameters 5mm to 100mm
Squares/Rectangles 1mm x 1mm to 1000mm x 1000mm
Thickness Range: 0.10mm to 10mm (subject to dimension)
Coating Options: Additional standard resistivity's & AR coatings

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
ITO Coated Float Glass
Dimension Tolerance:
Diameter + 0.00/-0.20mm Squares ± 0.25mm Squares ± 0.25mm
Thickness Tolerance:
± 0.10mm
Edge Finish:
Diameters ground & Squares as cut/bevelled
Surface Quality:
60/40 Scratch/Dig
Surface Flatness:
≤10 Fringes per 25mm x 25mm (@633nm)
Coatings:
Resistance ≤12-15 ohms square ITO coating thickness 150nm
Heat Resistance 140°C
Transmission @ 550nm 89%
Reflectance < 4%
Adhesion to glass: MIL-M-13508 4.4.6
Abrasion resistance: MIL-E-12397.B

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
GTO-2511 PDF ITO Glass Window Ø 251.10 £8.90
QTY
Added. View quote
GTO-1212 PDF ITO Glass Window 12 x 121.10 £4.50
QTY
Added. View quote
GTO-2521 PDF ITO Glass Window 25 x 251.10 £8.00
QTY
Added. View quote
GTO-5051 PDF ITO Glass Window 50 x 501.10 £11.90
QTY
Added. View quote
GTO-1011 PDF ITO Glass Window 100 x 1001.10 £44.00
QTY
Added. View quote

Part Number

GTO-2511

ITO Glass Window

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-10)

£8.90 Inc. VAT

QTY

Part Number

GTO-1212

ITO Glass Window

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 12 x 12

UNIT PRICE (1-10)

£4.50 Inc. VAT

QTY

Part Number

GTO-2521

ITO Glass Window

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 25 x 25

UNIT PRICE (1-10)

£8.00 Inc. VAT

QTY

Part Number

GTO-5051

ITO Glass Window

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1.10

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.90 Inc. VAT

QTY

Part Number

GTO-1011

ITO Glass Window

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 100 x 100

UNIT PRICE (1-10)

£44.00 Inc. VAT

QTY
