Front Surface Mirrors Enhanced

Front Surface Mirrors are made from Float glass and are coated in Aluminium with dielectric layers,  so they minimise energy loss by not allowing light to pass through the glass substrate. When rectangular they are perfect for mounting at 45° to give the light path a bend of 90°. They are used for a range of scanning, lighting applications and scientific instruments such as periscopes and telescopes.

UQG optics Front Surface enhanced Mirrors standard stock range are made from large coated sheets in diameters and squares in a range of thicknesses. Our custom options can be made in other coatings including gold, silver, dielectric and UV overcoats.

Please contact our sales team.

Dimensions: Diameters 5mm to 1 metre
Squares/Rectangles 1mm x 1mm to 1 metre x 1 metre
Thickness Range: 1.20mm to 6mm
Coating Options: UV enhanced, dielectic, silver & gold (wavelengths to suit)
Options: Bevels, angles & shapes

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

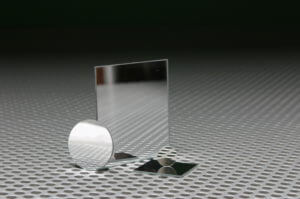

Front Surface Mirrors Stock
Material:
MCR-01 - Float Glass
Dimension Tolerance:
±0.20mm
Edge Finish:
Diameters ground
Squares as cut/seamed
Thickness Tolerance:
± 0.10mm
Surface Quality:
60/40 Scratch/Dig
Surface Flatness:
≤ 5 fringes (@633nm) per 25mm
Coating:
Aluminium with dielectric layers (mgF2/Pr/Ti)
Wavelength:
400nm @ 45° Min 92%
450nm @ 45° Min 93%
550nm @ 45° Min 94%
650nm @ 45° Min 90%
700nm @ 45° Min 86%
Adhesion to MIL-C-48497
Abrasion Resistance to MIL-C-13508C
Humidity Resistance to MIL-C-48497
Corrosion Resistance to MIL-C-810C
Reflectance:
R=≥95% @ 550nm
Scratches shall not exceed 0.06mm in width

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Select Your Currency:

currency flag select GBP currency flag select EUR currency flag select USD
Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
excl. VAT
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
MFG-1001 PDF FS Mirror - AL Ø 101.20 £8.00
QTY
Added. View quote
MFG-2511 PDF FS Mirror - AL Ø 251.20 £11.50
QTY
Added. View quote
MFG-2512 PDF FS Mirror - AL Ø 252 £12.00
QTY
Added. View quote
MFG-2530 PDF FS Mirror - AL Ø 253 £12.50
QTY
Added. View quote
MFG-5060 PDF FS Mirror - AL Ø 506 £16.00
QTY
Added. View quote
MFG-0551 PDF FS Mirror - AL 5 x 51.20 £6.60
QTY
Added. View quote
MFG-1010 PDF FS Mirror - AL 10 x 101.20 £8.50
QTY
Added. View quote
MFG-1511 PDF FS Mirror - AL 15 x 151.20 £8.80
QTY
Added. View quote
MFG-2551 PDF FS Mirror - AL 25 x 251.20 £9.80
QTY
Added. View quote
MFG-2552 PDF FS Mirror - AL 25 x 252 £10.00
QTY
Added. View quote
MFG-2553 PDF FS Mirror - AL 25 x 253 £10.50
QTY
Added. View quote
MFG-5051 PDF FS Mirror - AL 50 x 501.20 £12.50
QTY
Added. View quote
MFG-5502 PDF FS Mirror - AL 50 x 502 £13.00
QTY
Added. View quote
MFG-5503 PDF FS Mirror - AL 50 x 503 £13.20
QTY
Added. View quote
MFG-1110 PDF FS Mirror - AL 100 x 1001.20 £26.00
QTY
Added. View quote
MFG-1002 PDF FS Mirror - AL 100 x 1002 £28.00
QTY
Added. View quote
MFG-1003 PDF FS Mirror - AL 100 x 1003 £30.00
QTY
Added. View quote
MFG-1551 PDF FS Mirror - AL 150 x 1501.20 £45.00
QTY
Added. View quote
MFG-1552 PDF FS Mirror - AL 150 x 1502 £39.00
QTY
Added. View quote
MFG-1553 PDF FS Mirror - AL 150 x 1503 £41.00
QTY
Added. View quote
MFG-1556 PDF FS Mirror - AL 150 x 1506 £44.00
QTY
Added. View quote

Part Number

MFG-1001

FS Mirror – AL

PDF Data sheet

Thickness (mm) 1.20

Dimensions (mm) Ø 10

Focal Length (mm) 0

UNIT PRICE (1-10)

£8.00 Inc. VAT

QTY

Part Number

MFG-2511

FS Mirror – AL

PDF Data sheet

Thickness (mm) 1.20

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-10)

£11.50 Inc. VAT

QTY

Part Number

MFG-2512

FS Mirror – AL

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-10)

£12.00 Inc. VAT

QTY

Part Number

MFG-2530

FS Mirror – AL

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-10)

£12.50 Inc. VAT

QTY

Part Number

MFG-5060

FS Mirror – AL

PDF Data sheet

Thickness (mm) 6

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-10)

£16.00 Inc. VAT

QTY

Part Number

MFG-0551

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 5 x 5

Thickness (mm) 1.20

Focal Length (mm) 0

UNIT PRICE (1-10)

£6.60 Inc. VAT

QTY

Part Number

MFG-1010

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 10 x 10

Thickness (mm) 1.20

Focal Length (mm) 0

UNIT PRICE (1-10)

£8.50 Inc. VAT

QTY

Part Number

MFG-1511

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 15 x 15

Thickness (mm) 1.20

Focal Length (mm) 0

UNIT PRICE (1-10)

£8.80 Inc. VAT

QTY

Part Number

MFG-2551

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 1.20

Focal Length (mm) 0

UNIT PRICE (1-10)

£9.80 Inc. VAT

QTY

Part Number

MFG-2552

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 2

Focal Length (mm) 0

UNIT PRICE (1-10)

£10.00 Inc. VAT

QTY

Part Number

MFG-2553

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 25 x 25

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-10)

£10.50 Inc. VAT

QTY

Part Number

MFG-5051

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1.20

Focal Length (mm) 0

UNIT PRICE (1-10)

£12.50 Inc. VAT

QTY

Part Number

MFG-5502

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

Focal Length (mm) 0

UNIT PRICE (1-10)

£13.00 Inc. VAT

QTY

Part Number

MFG-5503

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-10)

£13.20 Inc. VAT

QTY

Part Number

MFG-1110

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 100 x 100

Thickness (mm) 1.20

Focal Length (mm) 0

UNIT PRICE (1-10)

£26.00 Inc. VAT

QTY

Part Number

MFG-1002

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 100 x 100

Thickness (mm) 2

Focal Length (mm) 0

UNIT PRICE (1-10)

£28.00 Inc. VAT

QTY

Part Number

MFG-1003

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 100 x 100

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-10)

£30.00 Inc. VAT

QTY

Part Number

MFG-1551

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 150 x 150

Thickness (mm) 1.20

Focal Length (mm) 0

UNIT PRICE (1-10)

£45.00 Inc. VAT

QTY

Part Number

MFG-1552

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 150 x 150

Thickness (mm) 2

Focal Length (mm) 0

UNIT PRICE (1-10)

£39.00 Inc. VAT

QTY

Part Number

MFG-1553

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 150 x 150

Thickness (mm) 3

Focal Length (mm) 0

UNIT PRICE (1-10)

£41.00 Inc. VAT

QTY

Part Number

MFG-1556

FS Mirror – AL

PDF Data sheet

Dimensions (mm) 150 x 150

Thickness (mm) 6

Focal Length (mm) 0

UNIT PRICE (1-10)

£44.00 Inc. VAT

QTY
