The Benefits of Using Optical Prisms in Imaging Systems

Posted by  | 3rd May 2023  | Optical Products

Optical Prisms

Optical prisms are essential components in many imaging systems. Compared to traditional lenses, prisms offer several advantages that improve image quality and system performance. In this article, we will explore the benefits of using optical prisms in imaging systems, the different types of prisms available, and how to select the right prism for a given application.

Key Takeaways

  • Optical prisms offer several advantages over traditional lenses, including reduced chromatic aberration, improved contrast, and compact system design.
  • There are various types of optical prisms available, such as Porro prisms, roof prisms, and dove prisms, each with its unique features.
  • The selection of the right prism for a given application depends on several factors, including the wavelength range, required image quality, and the available space.
  • The SPIE Optical Engineering Handbook, the Journal of the Optical Society of America, and the Proceedings of SPIE conferences are excellent sources of additional information on optical prisms and imaging systems.
  • Optical prisms enable compact system designs and are used in a wide range of applications, including cameras, microscopes, and telescopes.

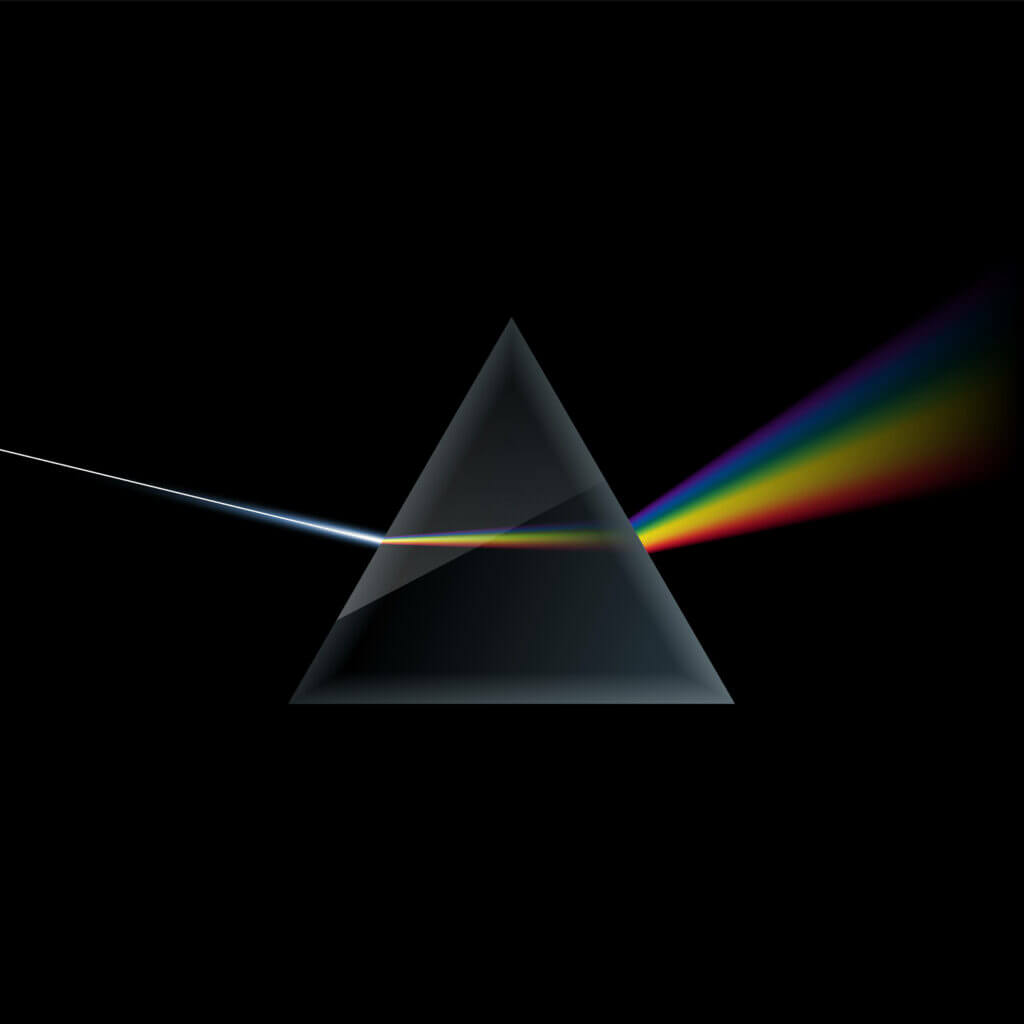

Optical prisms dispersing light

Imaging systems play a vital role in many scientific, medical, and industrial applications. These systems use lenses, mirrors, and prisms to capture and manipulate light, creating images that provide valuable information about the objects under observation. Among these optical components, prisms stand out as a versatile and essential tool for improving the performance of imaging systems.

Optical prisms work by refracting light, bending it at different angles depending on the shape and material of the prism. This property allows prisms to manipulate the path of light in ways that traditional lenses cannot. As a result, prisms offer several advantages over lenses when used in imaging systems.

Benefits of Using Optical Prisms in Imaging Systems

Reduced Chromatic Aberration

Chromatic aberration is a common optical problem that results in colour fringes around the edges of objects in an image. This is caused by the variation in the refractive index of the lens material with respect to wavelength, resulting in different focal lengths for different colours. One solution to this problem is to use a combination of lenses made of different materials with different dispersive properties, but this can result in a larger and more complex optical system.

Optical prisms offer a simpler solution to this problem by bending the light at an angle that is independent of the wavelength. This can be achieved using a prism made of a material with a high refractive index, such as glass or plastic. By using an appropriate prism, chromatic aberration can be reduced or eliminated, leading to higher quality images.

Improved Contrast

Optical prisms can also improve contrast in an image by reducing stray light and unwanted reflections. Stray light is caused by the scattering of light within the optical system, which can reduce the contrast of the image. Optical prisms can be used to block this stray light by reflecting it away from the image sensor or detector.

In addition, unwanted reflections can also reduce the contrast of an image by creating unwanted bright spots or glares. Optical prisms can be designed to minimize these reflections by using anti-reflective coatings on the prism surfaces or by using total internal reflection.

Compact System Design

Optical prisms can enable compact system designs by allowing light to be reflected or refracted within a smaller space. This can be especially useful in applications where space is limited or where a portable design is desired. For example, roof prisms are often used in compact binoculars or spotting scopes, where a longer optical path is needed but space is limited.

Types of Optical Prisms

There are various types of optical prisms available, each with its unique features and benefits. The following are the most commonly used prisms in imaging systems.

Porro Prisms

Porro prisms are a popular choice for binoculars and other optical instruments. They consist of two right-angled prisms that are placed together in a specific configuration to create a longer path of light. This results in a more compact design compared to traditional lenses.

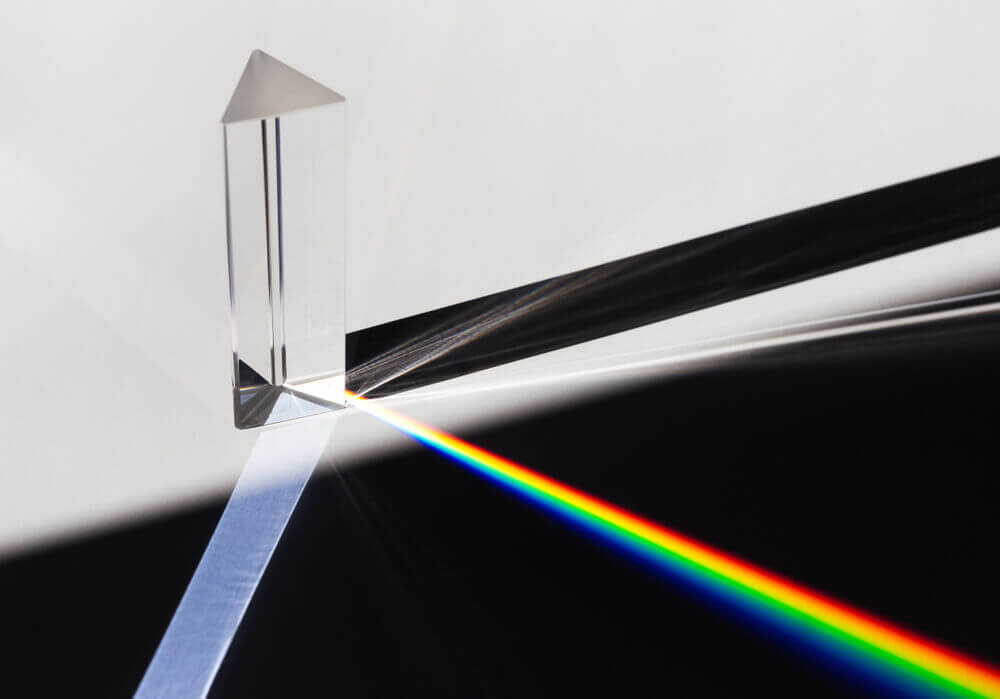

Prisms dispersing light

Roof Prisms

Roof prisms, also known as Amici prisms, are similar to Porro prisms but have a more complex internal design. They are commonly used in high-end binoculars and cameras and offer improved resolution and image quality.

Dove Prisms

Dove prisms are triangular-shaped prisms that are used to invert and rotate an image. They are commonly used in optical systems where size and weight are important factors, such as in portable imaging systems or endoscopes.

The Benefits of Optical Prisms

In summary, optical prisms have numerous benefits over traditional lenses when used in imaging systems. They can reduce chromatic aberration, improve contrast, enable compact designs, and offer additional functionality that is not available with lenses alone. Additionally, prisms are available in a variety of shapes and sizes to suit different applications, and can be made from a range of materials, including glass, plastic, and crystal.

Optical Prisms

When selecting an optical prism for a given application, it is important to consider the specific requirements of the system, such as the desired image quality, the size and weight constraints, and the environmental conditions in which the system will operate. It is also important to select a reputable supplier that can provide high-quality, precision prisms that meet your specifications.

Custom and Stock Optical Prisms

One such supplier is UQG Optics, a leading UK-based manufacturer of optical components, including prisms, lenses, mirrors, and filters. With over 70 years of experience in the industry, UQG Optics has a proven track record of providing high-quality, precision components for a wide range of applications, from scientific research to industrial automation.

We offer a range of prism types, as well as custom prism designs tailored to your specific requirements. Contact us today to see how we can fulfill your requirements.

Optical prisms are an essential component of many imaging systems, providing a range of benefits that cannot be achieved with lenses alone. By understanding the advantages and characteristics of different types of prisms, and selecting the right prism for a given application, designers can achieve better image quality, improved system performance, and greater design flexibility.

With the help of a trusted supplier like UQG Optics, you can be confident in the quality and precision of your optical components, and achieve the best possible results for your imaging system.
