Optical Domes

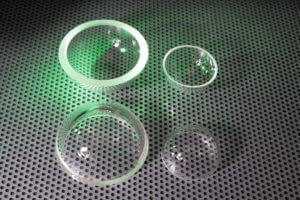

UQG Optics Optical Domes are ideal for visible and infrared applications and give a protective window due to its half sphere shape. They are stocked in high quality N-BK7 or Fused Quartz which are ideal for extreme environments as they have robust protective properties.

We supply Optical Domes which are used for defence, underwater cameras and imaging applications for subsea high pressure environments.

UQG optics optical Domes are available in BK7 and Fused Quartz in custom made sizes or supplied from stock. With additional materials including Sapphire and UV Fused Silica.

Please contact our sales team.

Materials: Schott® N-BK7, Fused Quartz, UV Fused Silica, Sapphire, Silicon, Germanium & Optical Glasses
Dimension Range: 15mm Diameter to 110mm Diameter

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Schott® N-BK7 & Fused Quartz
Dimension Tolerance:
± 0.10mm
Thickness Tolerance:
± 0.10mm
Surface Quality:
60/40 Scratch/Dig
Chamfers:
0.20mm
Concentricity:
< 0.10mm
Surface Accuracy:
≤ 5 Fringes (@633nm)
Wall Thickness:
ODB-252 - 2mm wall thickness TOL: ±0.10mm OD Radius 12.50mm height
ODB-502 - 2mm wall thickness TOL: ±0.10mm OD Radius 25mm height
ODQ-807 - 7mm wall thickness TOL: ±0.10mm OD Radius 40mm height

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Diameter (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
ODB-252 PDF N-BK7 or Equivalent Ø 2512.50 £105.00
QTY
Added. View quote
ODB-502 PDF N-BK7 or Equivalent Ø 5025 £156.00
QTY
Added. View quote
ODQ-807 PDF Fused Quartz Ø 79.335 £1,050.00
QTY
Added. View quote

Part Number

ODB-252

N-BK7 or Equivalent

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 12.50

UNIT PRICE (1-50)

£105.00 Inc. VAT

QTY

Part Number

ODB-502

N-BK7 or Equivalent

PDF Data sheet

Diameter (mm) Ø 50

Thickness (mm) 25

UNIT PRICE (1-50)

£156.00 Inc. VAT

QTY

Part Number

ODQ-807

Fused Quartz

PDF Data sheet

Diameter (mm) Ø 79.3

Thickness (mm) 35

UNIT PRICE (1-50)

£1,050.00 Inc. VAT

QTY
