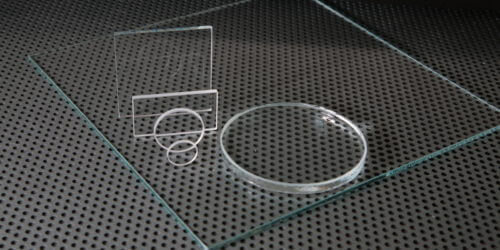

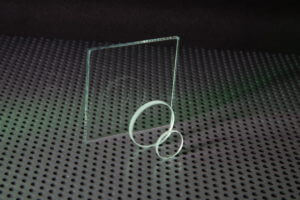

AR Coated Glass Standard - Windows, Plates & Sheets

AR coated sheet glass windows and plates are economical AR coated material, produced by a precision gel dipping process on one or both sides on white crown low iron glass. The oxidic layers produce interference which aids the effect of removing reflections. This is much purer, robust and chemically more stable than other coating process like vapour deposition or sputtering. Uncoated surfaces reflect approximately 4% of light per side. These coated glasses can reduce reflection by 90% producing a transmission average of 99% in the visible transmission. Removing the sunlight or artificial light they are used in applications for technical displays, indicator boards, machine vision windows, cameras and general AR coated windows. A wide range of thicknesses with larger sizes are available in stock.

UQG optics AR coated sheet glass windows and plates are made as diameters, squares and shapes to a standard stock range or custom made to your design.

Please contact our sales team.

Dimensions: Diameters 5mm to 600mm
Squares/Rectangles 1mm x 1mm to 885mm x 610mm
Thickness Range: 2mm, 3mm, 4mm & 6mm
Coating Options: AR coated one side or both sides
Options: Toughened, laminated, drilled holes, bevelled angles, shapes & screen printed

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
CLEARTEC - AR Coated Sheet White Float (Low Iron)
Diameter Tolerance:
+0.00/-0.20mm Ground edges & chamfered 25mm dia & below
+0.10/-0.30 As cut & chamfered over 25mm dia
Squares Tolerance:
± 0.20mm
Edge Finish:
Below 25mm ground & chamfered
Over 25mm dia as cut & chamfered
Plates as cut/chamfered
Thickness Tolerance:
+ 00/-0.20mm
Surface Quality:
60/40 Scratch/Dig
Surface Flatness:
1-2 Fringes per 25mm dia (@633nm)
Transmission Range:
>98% avg 450-700nm
Coatings:
Precision dip coated both sides

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
WAS-102 PDF AR VIS Both Sides - Standard Ø 102 £17.00
QTY
Added. View quote
WAS-103 PDF AR VIS Both Sides - Standard Ø 103 £18.00
QTY
Added. View quote
WAS-152 PDF AR VIS Both Sides - Standard Ø 152 £12.50
QTY
Added. View quote
WAS-153 PDF AR VIS Both Sides - Standard Ø 153 £18.25
QTY
Added. View quote
WAS-202 PDF AR VIS Both Sides - Standard Ø 202 £15.05
QTY
Added. View quote
WAS-203 PDF AR VIS Both Sides - Standard Ø 203 £18.50
QTY
Added. View quote
WAS-252 PDF AR VIS Both Sides - Standard Ø 252 £10.75
QTY
Added. View quote
WAS-253 PDF AR VIS Both Sides - Standard Ø 253 £9.75
QTY
Added. View quote
WAS-2531 PDF AR VIS One Side - Standard Ø 253 £8.00
QTY
Added. View quote
WAS-254 PDF AR VIS Both Sides - Standard Ø 254 £18.00
QTY
Added. View quote
WAS-256 PDF AR VIS Both Sides - Standard Ø 256 £27.60
QTY
Added. View quote
WAS-303 PDF AR VIS Both Sides - Standard Ø 303 £15.80
QTY
Added. View quote
WAS-403 PDF AR VIS Both Sides - Standard Ø 403 £18.00
QTY
Added. View quote
WAS-502 PDF AR VIS Both Sides - Standard Ø 502 £19.25
QTY
Added. View quote
WAS-503 PDF AR VIS Both Sides - Standard Ø 503 £11.00
QTY
Added. View quote
WAS-504 PDF AR VIS Both Sides - Standard Ø 504 £15.20
QTY
Added. View quote
WAS-603 PDF AR VIS Both Sides - Standard Ø 603 £21.80
QTY
Added. View quote
WAS-752 PDF AR VIS Both Sides - Standard Ø 752 £21.20
QTY
Added. View quote
WAS-753 PDF AR VIS Both Sides - Standard Ø 753 £24.50
QTY
Added. View quote
WAS-1003 PDF AR VIS Both Sides - Standard Ø 1003 £26.40
QTY
Added. View quote
WAS-1503 PDF AR VIS Both Sides - Standard Ø 1503 £63.00
QTY
Added. View quote
WAS-2523 PDF AR VIS Both Sides - Standard 25 x 253 £10.50
QTY
Added. View quote
WAS-5052 PDF AR VIS Both Sides - Standard 50 x 502 £14.50
QTY
Added. View quote
WAS-5053 PDF AR VIS Both Sides - Standard 50 x 503 £12.20
QTY
Added. View quote
WAS-1012 PDF AR VIS Both Sides - Standard 100 x 1002 £27.00
QTY
Added. View quote
WAS-1013 PDF AR VIS Both Sides - Standard 100 x 1003 £17.00
QTY
Added. View quote
WAS-1513 PDF AR VIS Both Sides - Standard 150 x 1503 £42.60
QTY
Added. View quote
WAS-2023 PDF AR VIS Both Sides - Standard 200 x 2003 £65.20
QTY
Added. View quote
WAS-3033 PDF AR VIS Both Sides - Standard 300 x 3003 £97.00
QTY
Added. View quote

Part Number

WAS-102

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 10

UNIT PRICE (1-50)

£17.00 Inc. VAT

QTY

Part Number

WAS-103

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 10

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

WAS-152

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 15

UNIT PRICE (1-50)

£12.50 Inc. VAT

QTY

Part Number

WAS-153

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 15

UNIT PRICE (1-50)

£18.25 Inc. VAT

QTY

Part Number

WAS-202

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 20

UNIT PRICE (1-50)

£15.05 Inc. VAT

QTY

Part Number

WAS-203

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 20

UNIT PRICE (1-50)

£18.50 Inc. VAT

QTY

Part Number

WAS-252

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£10.75 Inc. VAT

QTY

Part Number

WAS-253

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£9.75 Inc. VAT

QTY

Part Number

WAS-2531

AR VIS One Side – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£8.00 Inc. VAT

QTY

Part Number

WAS-254

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 4

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

WAS-256

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 6

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£27.60 Inc. VAT

QTY

Part Number

WAS-303

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 30

UNIT PRICE (1-50)

£15.80 Inc. VAT

QTY

Part Number

WAS-403

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 40

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

WAS-502

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 50

UNIT PRICE (1-50)

£19.25 Inc. VAT

QTY

Part Number

WAS-503

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 50

UNIT PRICE (1-50)

£11.00 Inc. VAT

QTY

Part Number

WAS-504

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 4

Dimensions (mm) Ø 50

UNIT PRICE (1-50)

£15.20 Inc. VAT

QTY

Part Number

WAS-603

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 60

UNIT PRICE (1-50)

£21.80 Inc. VAT

QTY

Part Number

WAS-752

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 75

UNIT PRICE (1-50)

£21.20 Inc. VAT

QTY

Part Number

WAS-753

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 75

UNIT PRICE (1-50)

£24.50 Inc. VAT

QTY

Part Number

WAS-1003

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 100

UNIT PRICE (1-50)

£26.40 Inc. VAT

QTY

Part Number

WAS-1503

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 150

UNIT PRICE (1-50)

£63.00 Inc. VAT

QTY

Part Number

WAS-2523

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£10.50 Inc. VAT

QTY

Part Number

WAS-5052

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£14.50 Inc. VAT

QTY

Part Number

WAS-5053

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£12.20 Inc. VAT

QTY

Part Number

WAS-1012

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 100 x 100

UNIT PRICE (1-50)

£27.00 Inc. VAT

QTY

Part Number

WAS-1013

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 100 x 100

UNIT PRICE (1-50)

£17.00 Inc. VAT

QTY

Part Number

WAS-1513

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 150 x 150

UNIT PRICE (1-50)

£42.60 Inc. VAT

QTY

Part Number

WAS-2023

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 200 x 200

UNIT PRICE (1-50)

£65.20 Inc. VAT

QTY

Part Number

WAS-3033

AR VIS Both Sides – Standard

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 300 x 300

UNIT PRICE (1-50)

£97.00 Inc. VAT

QTY
