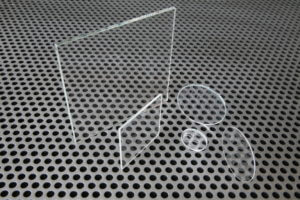

B270i Windows & Plates

B270i Ultra white crown glass windows and plates make a good choice when a simple clear glass material is required and is optically crystal clear with high transmission in the visible range.The surfaces are fire polished and highly resistant to solar radiation offering a low cost solution. They act as good window to protect elements between two environments and a good choice for a display window, touch panels, laboratory and biotechnology applications. They are used for many applications for scientific and commercial OEM production requirements. Widely used for telecom windows, camera windows and glass screens.

UQG optics B270i windows and plates are made as diameters, squares and shapes to a standard stock range and in a full range of thicknesses. Custom made to your design and AR coatings can also be applied.

Please contact our sales team.

Dimensions: Diameters 5mm to 250mm
Squares/Rectangles 1mm x 1mm to 406mm x 258mm
Thickness Range: 0.90mm, 1.15mm, 1.65mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm & 10mm
Dimension/Thickness: Tol up to 0.02mm
Surface Quality: 80/50 to 20/10 scratch/Dig
Surface Flatness: Up to lambda 10 (@633nm)
Parallelism: Up to 10 seconds
Options: Toughened, drilled, bevelled angles, optical coatings & shapes

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
B270i® Polished Plate
Dimension Tolerance:
Diameters +0.00/ -0.20mm
Squares ±0.10mm up to 25mm x 25mm
Squares ±0.20mm over 25mm x 25mm
Thickness Tolerance:
1mm ±0.10mm 2mm, 3mm, 4mm ±0.20mm
Edge Finish:
Squares fine ground up to 25mm x 25mm
Squares as cut/chamfered over 25mm x 25mm
Diameters ground
Surface Quality:
Plate 80/50 Scratch/Dig
Surface Flatness:
1-2 Fringes per 25mm dia (@633nm)
Parallelism:
≤ 5 Arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
OGP-051 PDF B270i Plate 5 x 51 £5.90
QTY
Added. View quote
OGP-1010 PDF B270i Plate 10 x 101 £6.50
QTY
Added. View quote
OGP-1210 PDF B270i Plate 12 x 121 £7.50
QTY
Added. View quote
OGP-1510 PDF B270i Plate 15 x 151 £7.80
QTY
Added. View quote
OGP-1520 PDF B270i Plate 15 x 152 £8.20
QTY
Added. View quote
OGP-2010 PDF B270i Plate 20 x 201 £9.50
QTY
Added. View quote
OGP-2020 PDF B270i Plate 20 x 202 £8.90
QTY
Added. View quote
OGP-2510 PDF B270i Plate 25 x 251 £9.50
QTY
Added. View quote
OGP-5510 PDF B270i Plate 50 x 501 £14.80
QTY
Added. View quote
OGP-5520 PDF B270i Plate 50 x 502 £15.20
QTY
Added. View quote
OGP-5530 PDF B270i Plate 50 x 503 £16.80
QTY
Added. View quote
OGP-7573 PDF B270i Plate 75 x 753 £24.00
QTY
Added. View quote
OGP-1001 PDF B270i Plate 100 x 1001 £28.00
QTY
Added. View quote
OGP-1002 PDF B270i Plate 100 x 1002 £29.00
QTY
Added. View quote
OGP-1003 PDF B270i Plate 100 x 1003 £30.00
QTY
Added. View quote
OGW-051 PDF B270i Window Ø 51 £9.80
QTY
Added. View quote
OGW-101 PDF B270i Window Ø 101 £6.00
QTY
Added. View quote
OGW-102 PDF B270i Window Ø 102 £7.50
QTY
Added. View quote
OGW-121 PDF B270i Window Ø 12.501 £8.00
QTY
Added. View quote
OGW-122 PDF B270i Window Ø 12.502 £8.50
QTY
Added. View quote
OGW-151 PDF B270i Window Ø 151 £9.00
QTY
Added. View quote
OGW-152 PDF B270i Window Ø 152 £9.20
QTY
Added. View quote
OGW-153 PDF B270i Window Ø 153 £9.50
QTY
Added. View quote
OGW-201 PDF B270i Window Ø 201 £9.70
QTY
Added. View quote
OGW-202 PDF B270i Window Ø 202 £9.80
QTY
Added. View quote
OGW-2510 PDF B270i Window Ø 251 £8.90
QTY
Added. View quote
OGW-2515 PDF B270i Window Ø 251.50 £9.50
QTY
Added. View quote
OGW-2520 PDF B270i Window Ø 252 £10.00
QTY
Added. View quote
OGW-2530 PDF B270i Window Ø 253 £10.50
QTY
Added. View quote
OGW-254 PDF B270i Window Ø 254 £12.90
QTY
Added. View quote
OGW-302 PDF B270i Window Ø 302 £15.80
QTY
Added. View quote
OGW-352 PDF B270i Window Ø 352 £16.20
QTY
Added. View quote
OGW-403 PDF B270i Window Ø 403 £18.80
QTY
Added. View quote
OGW-501 PDF B270i Window Ø 501 £17.00
QTY
Added. View quote
OGW-5015 PDF B270i Window Ø 501.50 £16.80
QTY
Added. View quote
OGW-5020 PDF B270i Window Ø 502 £17.50
QTY
Added. View quote
OGW-5030 PDF B270i Window Ø 503 £19.80
QTY
Added. View quote
OGW-753 PDF B270i Window Ø 753 £38.00
QTY
Added. View quote
OGW-1001 PDF B270i Window Ø 1001 £48.00
QTY
Added. View quote
OGW-1002 PDF B270i Window Ø 1002 £54.00
QTY
Added. View quote
OGW-1003 PDF B270i Window Ø 1003 £56.00
QTY
Added. View quote

Part Number

OGP-051

B270i Plate

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 5 x 5

UNIT PRICE (1-50)

£5.90 Inc. VAT

QTY

Part Number

OGP-1010

B270i Plate

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 10 x 10

UNIT PRICE (1-50)

£6.50 Inc. VAT

QTY

Part Number

OGP-1210

B270i Plate

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 12 x 12

UNIT PRICE (1-50)

£7.50 Inc. VAT

QTY

Part Number

OGP-1510

B270i Plate

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 15 x 15

UNIT PRICE (1-50)

£7.80 Inc. VAT

QTY

Part Number

OGP-1520

B270i Plate

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 15 x 15

UNIT PRICE (1-50)

£8.20 Inc. VAT

QTY

Part Number

OGP-2010

B270i Plate

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 20 x 20

UNIT PRICE (1-50)

£9.50 Inc. VAT

QTY

Part Number

OGP-2020

B270i Plate

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 20 x 20

UNIT PRICE (1-50)

£8.90 Inc. VAT

QTY

Part Number

OGP-2510

B270i Plate

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£9.50 Inc. VAT

QTY

Part Number

OGP-5510

B270i Plate

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£14.80 Inc. VAT

QTY

Part Number

OGP-5520

B270i Plate

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£15.20 Inc. VAT

QTY

Part Number

OGP-5530

B270i Plate

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£16.80 Inc. VAT

QTY

Part Number

OGP-7573

B270i Plate

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 75 x 75

UNIT PRICE (1-50)

£24.00 Inc. VAT

QTY

Part Number

OGP-1001

B270i Plate

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) 100 x 100

UNIT PRICE (1-50)

£28.00 Inc. VAT

QTY

Part Number

OGP-1002

B270i Plate

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 100 x 100

UNIT PRICE (1-50)

£29.00 Inc. VAT

QTY

Part Number

OGP-1003

B270i Plate

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 100 x 100

UNIT PRICE (1-50)

£30.00 Inc. VAT

QTY

Part Number

OGW-051

B270i Window

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 5

UNIT PRICE (1-50)

£9.80 Inc. VAT

QTY

Part Number

OGW-101

B270i Window

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 10

UNIT PRICE (1-50)

£6.00 Inc. VAT

QTY

Part Number

OGW-102

B270i Window

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 10

UNIT PRICE (1-50)

£7.50 Inc. VAT

QTY

Part Number

OGW-121

B270i Window

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£8.00 Inc. VAT

QTY

Part Number

OGW-122

B270i Window

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£8.50 Inc. VAT

QTY

Part Number

OGW-151

B270i Window

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 15

UNIT PRICE (1-50)

£9.00 Inc. VAT

QTY

Part Number

OGW-152

B270i Window

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 15

UNIT PRICE (1-50)

£9.20 Inc. VAT

QTY

Part Number

OGW-153

B270i Window

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 15

UNIT PRICE (1-50)

£9.50 Inc. VAT

QTY

Part Number

OGW-201

B270i Window

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 20

UNIT PRICE (1-50)

£9.70 Inc. VAT

QTY

Part Number

OGW-202

B270i Window

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 20

UNIT PRICE (1-50)

£9.80 Inc. VAT

QTY

Part Number

OGW-2510

B270i Window

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£8.90 Inc. VAT

QTY

Part Number

OGW-2515

B270i Window

PDF Data sheet

Thickness (mm) 1.50

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£9.50 Inc. VAT

QTY

Part Number

OGW-2520

B270i Window

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

OGW-2530

B270i Window

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.50 Inc. VAT

QTY

Part Number

OGW-254

B270i Window

PDF Data sheet

Thickness (mm) 4

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£12.90 Inc. VAT

QTY

Part Number

OGW-302

B270i Window

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 30

UNIT PRICE (1-50)

£15.80 Inc. VAT

QTY

Part Number

OGW-352

B270i Window

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 35

UNIT PRICE (1-50)

£16.20 Inc. VAT

QTY

Part Number

OGW-403

B270i Window

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 40

UNIT PRICE (1-50)

£18.80 Inc. VAT

QTY

Part Number

OGW-501

B270i Window

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 50

UNIT PRICE (1-50)

£17.00 Inc. VAT

QTY

Part Number

OGW-5015

B270i Window

PDF Data sheet

Thickness (mm) 1.50

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.80 Inc. VAT

QTY

Part Number

OGW-5020

B270i Window

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-50)

£17.50 Inc. VAT

QTY

Part Number

OGW-5030

B270i Window

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-50)

£19.80 Inc. VAT

QTY

Part Number

OGW-753

B270i Window

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 75

UNIT PRICE (1-50)

£38.00 Inc. VAT

QTY

Part Number

OGW-1001

B270i Window

PDF Data sheet

Thickness (mm) 1

Dimensions (mm) Ø 100

UNIT PRICE (1-50)

£48.00 Inc. VAT

QTY

Part Number

OGW-1002

B270i Window

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 100

UNIT PRICE (1-50)

£54.00 Inc. VAT

QTY

Part Number

OGW-1003

B270i Window

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) Ø 100

UNIT PRICE (1-50)

£56.00 Inc. VAT

QTY
