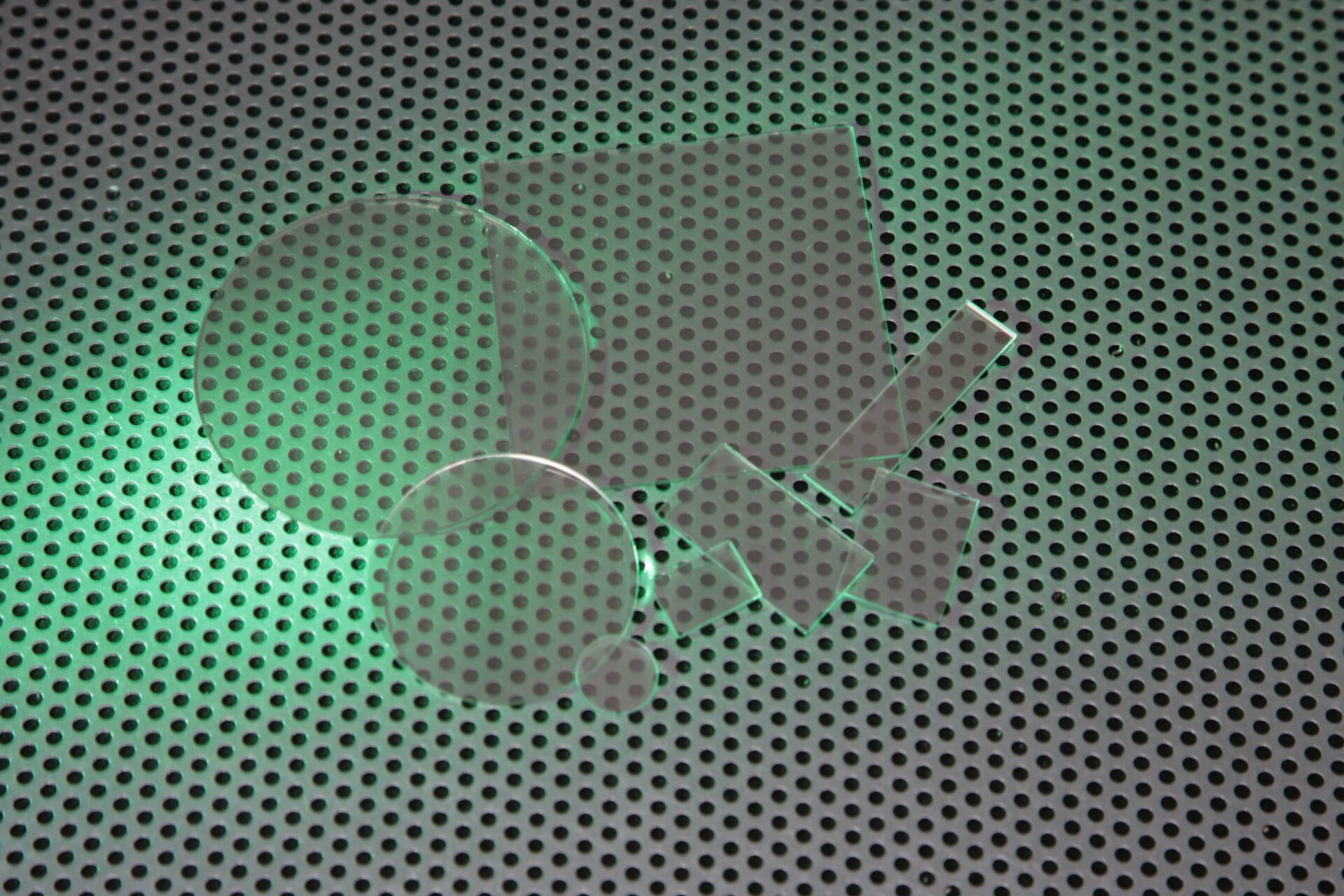

CUSTOM

Get a Quote
For a quote on your custom requirements please send us your drawing or specification.

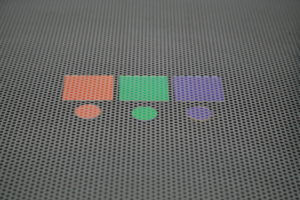

Colour Separating Mirrors

The colour beamsplitting separating mirrors are absorption free inference filters of extremely hard, chemically resistant oxide films. They offer sharp separation of transmitted and reflective regions. They are non-fading, have high saturation and easy to clean. They are designed for 45° angle of incidence, greater angles of incidence cause a reversible shift in the spectral transmission and reflection edge towards shorter wavelengths, supplied in 3 colours, Red, Blue and Green.

UQG optics Colour Separating Mirrors are made as diameters and squares to a standard stock range or made to custom optical designs.

Please contact our sales team.

Dimensions: Diameters 5mm to 400mm
Squares/Rectangles 1mm x 1mm to 300mm x 300mm
Thickness Range: 1.10mm to 3.00mm

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Borosilicate Coated Glass
Dimension Tolerance:
Diameters +0.00/-0.20mm
Thickness Tolerance:
±0.10mm
Edge Finish:
Diameters ground squares as cut/bevelled
Squares ±0.20mm
Colour:
Blue - Spectral Data:
T≤ 5% Abs.400-450nm
T= 50% 490±10nm
T≥ 80% Avg. 520-760nm
Angle Of Incidence:
45°
Green - Spectral Data:
T≥80% Avg. 400-480nm
T=50% 500 + 10/-5nm
T≤10% Abs. 520-560nm
T=50% 590 + 10/-5nm
T≥80% Avg. 620-760nm
Angle Of Incidence:
45°
Red - Spectral Data:
T≥ 80% Avg.400-560nm
T= 50% 600±10nm
T≤ 5% Abs. 640-760nm
Angle Of Incidence:
45°

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description ColourDimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
MSB-2511 PDF Colour Separating Mirrors BlueØ 251.10 £17.00
QTY
Added. View quote
MSG-2511 PDF Colour Separating Mirrors GreenØ 251.10 £17.00
QTY
Added. View quote
MSR-2511 PDF Colour Separating Mirrors RedØ 251.10 £18.00
QTY
Added. View quote
MSB-5051 PDF Colour Separating Mirrors Blue50 x 501.10 £27.00
QTY
Added. View quote
MSG-5051 PDF Colour Separating Mirrors Green50 x 501.10 £29.50
QTY
Added. View quote
MSR-5051 PDF Colour Separating Mirrors Red50 x 501.10 £28.00
QTY
Added. View quote

Part Number

MSB-2511

Colour Separating Mirrors

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 25

Colour Blue

Focal Length (mm) 0

UNIT PRICE (1-50)

£17.00 Inc. VAT

QTY

Part Number

MSG-2511

Colour Separating Mirrors

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 25

Colour Green

Focal Length (mm) 0

UNIT PRICE (1-50)

£17.00 Inc. VAT

QTY

Part Number

MSR-2511

Colour Separating Mirrors

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 25

Colour Red

Focal Length (mm) 0

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

MSB-5051

Colour Separating Mirrors

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1.10

Colour Blue

Focal Length (mm) 0

UNIT PRICE (1-50)

£27.00 Inc. VAT

QTY

Part Number

MSG-5051

Colour Separating Mirrors

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1.10

Colour Green

Focal Length (mm) 0

UNIT PRICE (1-50)

£29.50 Inc. VAT

QTY

Part Number

MSR-5051

Colour Separating Mirrors

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1.10

Colour Red

Focal Length (mm) 0

UNIT PRICE (1-50)

£28.00 Inc. VAT

QTY
