Plate Beam Splitters

Plate Beamsplitters are used to split incident light to 2 different wavelengths, a section of the light striking is transmitted while the other section is reflected. We stock 45°AOI or 0°AOI. The AR coating is at a high standard to enhance performance of these mirrors. They are widely used in scientific instruments and also laser, lighting and imaging applications.

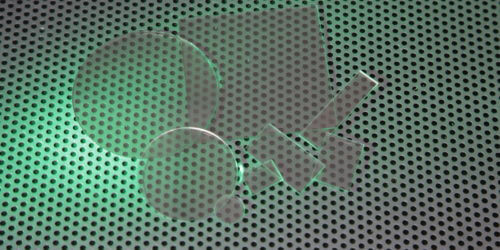

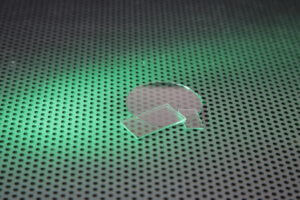

UQG optics Plate Beamsplitters are made in diameters and squares/rectangles for stock. Custom made Plate Beamsplitters are made in materials including UV Fused Silica and Fused Quartz to a custom optical wavelength.

Please contact our sales team.

Dimensions: Diameters 5mm to 400mm
Squares/Rectangles 1mm x 1mm to 300mm x 300mm
Thickness Range: 1.10mm to 3mm
Optical Specifications: 70/30, 25/75, 30/70, 40/60, 30/70, 75/25
Material Options: Borosilicate, Fused Quartz & Optical glasses

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Float Glass
Dimension Tolerance:
± 0.20mm
Thickness Tolerance:
± 0.10mm
Angle of Incidence:
45° or 0°
Coating:
T50/R50 420-680nm Tavg = 50% ± 5% 45° AR coated

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
PBS-125 PDF Beamsplitter Plate 50/50 - AOI 0° Ø 12.501.10 £10.50
QTY
Added. View quote
PBS-150 PDF Beamsplitter Plate 50/50 - AOI 0° Ø 151.10 £11.80
QTY
Added. View quote
PBS-200 PDF Beamsplitter Plate 50/50 - AOI 0° Ø 201.10 £13.00
QTY
Added. View quote
PBS-250 PDF Beamsplitter Plate 50/50 - AOI 0° Ø 251.10 £15.00
QTY
Added. View quote
PBS-500 PDF Beamsplitter Plate 50/50 - AOI 0° Ø 501.10 £24.00
QTY
Added. View quote
PBS-1254 PDF Beamsplitter Plate 50/50-AOI 45° Ø 12.501.10 £11.50
QTY
Added. View quote
PBS-254 PDF Beamsplitter Plate 50/50-AOI 45° Ø 251.10 £13.00
QTY
Added. View quote
PBS-1274 PDF Beamsplitter Plate 50/50-AOI 45° 12.50 x 17.501.10 £11.50
QTY
Added. View quote
PBS-1834 PDF Beamsplitter Plate 50/50-AOI 45° 18 x 301.10 £11.90
QTY
Added. View quote
PBS-2024 PDF Beamsplitter Plate 50/50-AOI 45° 20 x 271.10 £12.30
QTY
Added. View quote
PBS-2034 PDF Beamsplitter Plate 50/50-AOI 45° 20 x 371.10 £12.50
QTY
Added. View quote
PBS-2534 PDF Beamsplitter Plate 50/50-AOI 45° 25 x 381.10 £12.90
QTY
Added. View quote
PBS-3534 PDF Beamsplitter Plate 50/50-AOI 45° 35 x 351.10 £14.50
QTY
Added. View quote
PBS-5054 PDF Beamsplitter Plate 50/50-AOI 45° 50 x 501.10 £26.00
QTY
Added. View quote
PBS-7574 PDF Beamsplitter Plate 50/50-AOI 45° 75 x 751.10 £33.00
QTY
Added. View quote

Part Number

PBS-125

Beamsplitter Plate 50/50 – AOI 0°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£10.50 Inc. VAT

QTY

Part Number

PBS-150

Beamsplitter Plate 50/50 – AOI 0°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 15

UNIT PRICE (1-50)

£11.80 Inc. VAT

QTY

Part Number

PBS-200

Beamsplitter Plate 50/50 – AOI 0°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 20

UNIT PRICE (1-50)

£13.00 Inc. VAT

QTY

Part Number

PBS-250

Beamsplitter Plate 50/50 – AOI 0°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£15.00 Inc. VAT

QTY

Part Number

PBS-500

Beamsplitter Plate 50/50 – AOI 0°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 50

UNIT PRICE (1-50)

£24.00 Inc. VAT

QTY

Part Number

PBS-1254

Beamsplitter Plate 50/50-AOI 45°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 12.50

UNIT PRICE (1-50)

£11.50 Inc. VAT

QTY

Part Number

PBS-254

Beamsplitter Plate 50/50-AOI 45°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£13.00 Inc. VAT

QTY

Part Number

PBS-1274

Beamsplitter Plate 50/50-AOI 45°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 12.50 x 17.50

UNIT PRICE (1-50)

£11.50 Inc. VAT

QTY

Part Number

PBS-1834

Beamsplitter Plate 50/50-AOI 45°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 18 x 30

UNIT PRICE (1-50)

£11.90 Inc. VAT

QTY

Part Number

PBS-2024

Beamsplitter Plate 50/50-AOI 45°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 20 x 27

UNIT PRICE (1-50)

£12.30 Inc. VAT

QTY

Part Number

PBS-2034

Beamsplitter Plate 50/50-AOI 45°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 20 x 37

UNIT PRICE (1-50)

£12.50 Inc. VAT

QTY

Part Number

PBS-2534

Beamsplitter Plate 50/50-AOI 45°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 25 x 38

UNIT PRICE (1-50)

£12.90 Inc. VAT

QTY

Part Number

PBS-3534

Beamsplitter Plate 50/50-AOI 45°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 35 x 35

UNIT PRICE (1-50)

£14.50 Inc. VAT

QTY

Part Number

PBS-5054

Beamsplitter Plate 50/50-AOI 45°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£26.00 Inc. VAT

QTY

Part Number

PBS-7574

Beamsplitter Plate 50/50-AOI 45°

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 75 x 75

UNIT PRICE (1-50)

£33.00 Inc. VAT

QTY
