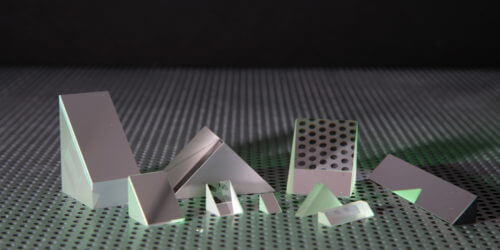

Custom Right Angle Prisms

CUSTOM

Get a Quote
For a quote on your custom requirements please send us your drawing or specification.

Right Angle Prisms

UQG Optics Right Angle Optical Prisms are commonly used for redirect of light at 90°. The right angle prism will produce reverted left handed or inverted images subject to the orientation of prism. Aluminium coatings to the hypotenuse & black overcoats will give additional effects and can deviate the path by 180°. The right angle prism can be made in a range of custom sizes and lengths and AR coated. In a full range of materials including BK7, UV Fused Silica, Quartz, optical glasses, Calcium Fluoride (CaF2), Germanium (Ge) and Silicon (Si).

Please contact our sales team.

RoSH-logo View RoHS Statement
Dimensions: 1mm to 150mm
Angles: To 1 minute
Surface Quality: 80/50 to 20/10 scratch dig
Surface Flatness: Up to lambda 4 (@633nm)
Coating Options: Aluminised, AR single/multi layer, SiO & MgF2 & black painted

Purchase OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

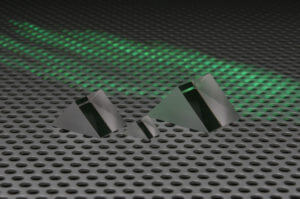

Right Angle Prisms
Material:
SCHOTT® N-BK7 or Fused Silica
Dimension Tolerance:
± 0.15mm ≤ 2.50m ±0.05mm
Angles:
± 4 Arc mins ≤ 2.50 ± 2 arc mins
Surface Flatness:
≤ 1 Lambda (@633nm)
Surface Quality:
40/20 Scratch/Dig uncoated
Coatings:
OPTION A
Uncoated
OPTION B
Single layer A/R For 550nm on entrance and exit faces hypotenuse face uncoated
OPTION C
Hypotenuse face with aluminium painted black

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Select Your Currency:

currency flag select GBP currency flag select EUR currency flag select USD
Part No Data
sheet		 Description Dimensions (mm) Unit price
(1-10)
excl. VAT
Qty
 Qty
(10+)Volume pricing available for 10+, please add to quote.
PRA-0101 PDF (Option A) BK7 Right Angle Prism 1 x 1 x 1 £29.00
QTY
Added. View quote
PRA-0252 PDF (Option A) BK7 Right Angle Prism 2.5 x 2.5 x 2.5 £22.00
QTY
Added. View quote
PRA-0505 PDF (Option A) BK7 Right Angle Prism 5 x 5 x 5 £17.00
QTY
Added. View quote
PRA-1010 PDF (Option A) BK7 Right Angle Prism 10 x 10 x 10 £15.00
QTY
Added. View quote
PRA-1515 PDF (Option A) BK7 Right Angle Prism 15 x 15 x 15 £17.00
QTY
Added. View quote
PRA-2020 PDF (Option A) BK7 Right Angle Prism 20 x 20 x 20 £20.00
QTY
Added. View quote
PRA-2545 PDF (Option A) BK7 Right Angle Prism 25 x 25 x 25 £24.00
QTY
Added. View quote
PRB-1010 PDF (Option B) BK7 Right Angle Prism 10 x 10 x 10 £23.00
QTY
Added. View quote
PRB-1515 PDF (Option B) BK7 Right Angle Prism 15 x 15 x 15 £25.00
QTY
Added. View quote
PRB-2020 PDF (Option B) BK7 Right Angle Prism 20 x 20 x 20 £29.00
QTY
Added. View quote
PRB-2545 PDF (Option B) BK7 Right Angle Prism 25 x 25 x 25 £34.00
QTY
Added. View quote
PRC-1010 PDF (Option C) BK7 Right Angle Prism 10 x 10 x 10 £22.00
QTY
Added. View quote
PRC-1515 PDF (Option C) BK7 Right Angle Prism 15 x 15 x 15 £23.00
QTY
Added. View quote
PRC-2020 PDF (Option C) BK7 Right Angle Prism 20 x 20 x 20 £29.00
QTY
Added. View quote
PRC-2545 PDF (Option C) BK7 Right Angle Prism 25 x 25 x 25 £33.00
QTY
Added. View quote
PRS-0101 PDF (Option A) Fused Silica Right Angle Prism 10 x 10 x 10 £54.00
QTY
Added. View quote
PRS-0252 PDF (Option A) Fused Silica Right Angle Prism 25 x 25 x 25 £92.00
QTY
Added. View quote

Part Number

PRA-0101

(Option A) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 1 x 1 x 1

UNIT PRICE (1-10)

£29.00 Inc. VAT

QTY

Part Number

PRA-0252

(Option A) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 2.5 x 2.5 x 2.5

UNIT PRICE (1-10)

£22.00 Inc. VAT

QTY

Part Number

PRA-0505

(Option A) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 5 x 5 x 5

UNIT PRICE (1-10)

£17.00 Inc. VAT

QTY

Part Number

PRA-1010

(Option A) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 10 x 10 x 10

UNIT PRICE (1-10)

£15.00 Inc. VAT

QTY

Part Number

PRA-1515

(Option A) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 15 x 15 x 15

UNIT PRICE (1-10)

£17.00 Inc. VAT

QTY

Part Number

PRA-2020

(Option A) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 20 x 20 x 20

UNIT PRICE (1-10)

£20.00 Inc. VAT

QTY

Part Number

PRA-2545

(Option A) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 25 x 25 x 25

UNIT PRICE (1-10)

£24.00 Inc. VAT

QTY

Part Number

PRB-1010

(Option B) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 10 x 10 x 10

UNIT PRICE (1-10)

£23.00 Inc. VAT

QTY

Part Number

PRB-1515

(Option B) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 15 x 15 x 15

UNIT PRICE (1-10)

£25.00 Inc. VAT

QTY

Part Number

PRB-2020

(Option B) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 20 x 20 x 20

UNIT PRICE (1-10)

£29.00 Inc. VAT

QTY

Part Number

PRB-2545

(Option B) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 25 x 25 x 25

UNIT PRICE (1-10)

£34.00 Inc. VAT

QTY

Part Number

PRC-1010

(Option C) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 10 x 10 x 10

UNIT PRICE (1-10)

£22.00 Inc. VAT

QTY

Part Number

PRC-1515

(Option C) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 15 x 15 x 15

UNIT PRICE (1-10)

£23.00 Inc. VAT

QTY

Part Number

PRC-2020

(Option C) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 20 x 20 x 20

UNIT PRICE (1-10)

£29.00 Inc. VAT

QTY

Part Number

PRC-2545

(Option C) BK7 Right Angle Prism

PDF Data sheet

Dimensions (mm) 25 x 25 x 25

UNIT PRICE (1-10)

£33.00 Inc. VAT

QTY

Part Number

PRS-0101

(Option A) Fused Silica Right Angle Prism

PDF Data sheet

Dimensions (mm) 10 x 10 x 10

UNIT PRICE (1-10)

£54.00 Inc. VAT

QTY

Part Number

PRS-0252

(Option A) Fused Silica Right Angle Prism

PDF Data sheet

Dimensions (mm) 25 x 25 x 25

UNIT PRICE (1-10)

£92.00 Inc. VAT

QTY
