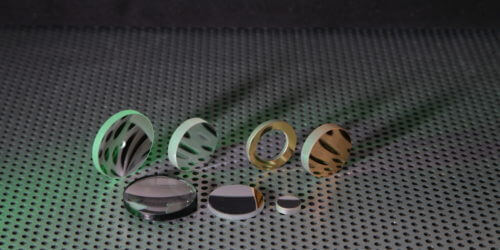

Concave Mirrors

Concave Mirrors are for focusing light. They have a reflecting surface so when the light strikes the surface it causes it to reflect to one focal point. Our Concave mirrors have an aluminium and SiO overcoat which improve the reflectance of visible wavelengths. Used in many imaging systems and other applications which require light collection, for example reflecting telescopes and laser systems.

UQG have a range of focal lengths in stock and can also custom make with various coatings for UV wavelength and custom dielectric coatings to suit a particular wavelength.

Please contact our sales team.

Dimensions: Diameters 10mm to 250mm
Squares/rectangles 10mm to 100mm
Surface Quality: 80/50 to 20/10 scratch dig
Surface Flatness: Up to lambda 10 (@633nm)
Coating Options: UV enhanced, dielectic, silver & gold (wavelengths to suit)

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

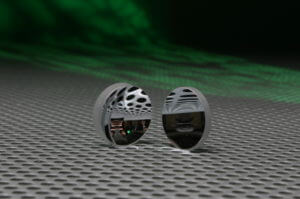

Material:
Optical Glass
Dimension Tolerance:
+0.00/0.20mm
Edge Finish:
Fine ground
Surface Quality:
60/40 Scratch/Dig
Surface Flatness:
≤ 3 Fringes (@633nm)
Coating:
AL + SIO overcoated
Reflectance:
R≥90% @ 550nm
Focal Length:
±2%

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Diameter (mm)Focal Length (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
COM-2525 Concave Mirror Ø 2525 £16.00
QTY
Added. View quote
COM-2530 Concave Mirror Ø 2530 £16.00
QTY
Added. View quote
COM-2540 Concave Mirror Ø 2540 £16.00
QTY
Added. View quote
COM-2550 Concave Mirror Ø 2550 £16.00
QTY
Added. View quote
COM-2563 Concave Mirror Ø 2563 £16.00
QTY
Added. View quote
COM-2510 Concave Mirror Ø 25100 £16.00
QTY
Added. View quote

Part Number

COM-2525

Concave Mirror

Diameter (mm) Ø 25

Focal Length (mm) 25

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

COM-2530

Concave Mirror

Diameter (mm) Ø 25

Focal Length (mm) 30

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

COM-2540

Concave Mirror

Diameter (mm) Ø 25

Focal Length (mm) 40

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

COM-2550

Concave Mirror

Diameter (mm) Ø 25

Focal Length (mm) 50

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

COM-2563

Concave Mirror

Diameter (mm) Ø 25

Focal Length (mm) 63

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

COM-2510

Concave Mirror

Diameter (mm) Ø 25

Focal Length (mm) 100

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY
