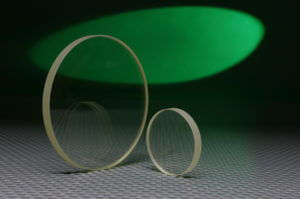

Lead Glass Windows & Plates

UQG lead glass x-ray protection windows act as a protection barrier against gamma and x-rays. They are also an excellent radiation shielding glass. Schott RD50 has a high density, producing high x-ray absorption in relation to the thickness of the glass.

Widely used in vacuum systems for viewports and protection windows for sensitive instruments used in industry and science.

UQG Optics stock a standard range of windows. Our custom made lead glass windows are manufactured in circular windows or plates in two grades of surface finish, either optically polished for increased flatness or thickness tolerance and from standard polished sheet materials.

Please contact our sales team.

Dimensions: Diameters 5mm to 200mm
Squares/Rectangles 10mm to 200mm - plate finish up to 1 metre
Thickness Range: 3mm to 16mm (100kv to 300kv) (subject to dimension)
Materials Options: Corning Med x-RWB46 & Schott® RD30 polished sheets up 1 metre x 1 metre
Coating Option: AR Coatings
Options: Shapes, bevels & holes

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Lead Glass Schott® RD50 Optically Polished
Dimension Tolerance:
+0.00/ -0.20mm
Thickness Tolerance:
± 0.10mm
Edge Finish:
Fine ground
Surface Quality:
60/40 Scratch/Dig
Surface Flatness:
≤ 5 Fringes (@633nm)
Parallelism:
≤ 3 Arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Diameter (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
LGW-2506 PDF Lead Glass Window Ø 256 £28.00
QTY
Added. View quote
LGW-5006 PDF Lead Glass Window Ø 506 £36.00
QTY
Added. View quote
LGW-1006 PDF Lead Glass Window Ø 1006 £62.00
QTY
Added. View quote

Part Number

LGW-2506

Lead Glass Window

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 6

UNIT PRICE (1-50)

£28.00 Inc. VAT

QTY

Part Number

LGW-5006

Lead Glass Window

PDF Data sheet

Diameter (mm) Ø 50

Thickness (mm) 6

Focal Length (mm) 0

UNIT PRICE (1-50)

£36.00 Inc. VAT

QTY

Part Number

LGW-1006

Lead Glass Window

PDF Data sheet

Diameter (mm) Ø 100

Thickness (mm) 6

Focal Length (mm) 0

UNIT PRICE (1-50)

£62.00 Inc. VAT

QTY
