For a quote on your custom requirements please send us your drawing or specification.

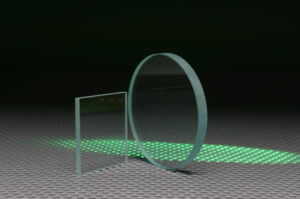

Toughened Glass Windows & Plates

Fully thermally tempered toughened glass is approximately four times stronger than annealed glass of the same thickness and configuration. When broken, it will break into many small fragments, which are less likely to cause serious injury. The typical process to produce tempered/toughened glass involves heating the glass to over 600 °C, then rapidly cooling to lock the glass surfaces in a state of compression and the core in a state of tension.Compared to normal glass, thermally toughened safety glass has the dual benefit of sustaining high impact working pressures and a high temperature differential between the two faces.

Used in scientific, industrial and lighting industry products include, gauge/pressure glasses, instrument windows, camera windows, sight glasses, view ports, pressure windows and explosion proof enclosure’s.

Please note: thicknesses 3mm or less are not toughened to a British Standard.

Please contact our sales team.

Dimensions: Diameters 15mm to 500mm
Squares/Rectangles 15mm x 15mm to 500mm x 500mm
Thickness Range: Stock sheet thicknesses from 3mm to 19mm (subject to dimension)
Edge Finish: Ground or polished
Options: Bevels, holes, laminated & screen printed

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Float Glass Toughened to BS 3463
Diameter Tolerance:
+ 0.50mm/-0.50mm
Thickness Tolerance:
± 0.20mm
Edge Finish:
Diameters ground
Squares as cut & chamfered
Surface Quality:
80/50 Scratch/Dig

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
TSG-2504 PDF Toughened Glass Ø 254 £15.00
QTY
Added. View quote
TSG-4006 PDF Toughened Glass Ø 406 £16.00
QTY
Added. View quote
TSG-5006 PDF Toughend Glass Ø 506 £17.00
QTY
Added. View quote
TSG-8208 PDF Toughened Glass Ø 828 £18.00
QTY
Added. View quote
TSG-1048 PDF Toughened Glass Ø 1048 £21.00
QTY
Added. View quote
TSG-1530 PDF Toughened Glass Ø 15310 £28.00
QTY
Added. View quote
TSG-1971 PDF Toughened Glass Ø 19715 £36.00
QTY
Added. View quote
TSG-5054 PDF Toughened Glass 50 x 504 £8.00
QTY
Added. View quote

Part Number

TSG-2504

Toughened Glass

PDF Data sheet

Thickness (mm) 4

Dimensions (mm) Ø 25

UNIT PRICE (1-50)

£15.00 Inc. VAT

QTY

Part Number

TSG-4006

Toughened Glass

PDF Data sheet

Thickness (mm) 6

Dimensions (mm) Ø 40

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

TSG-5006

Toughend Glass

PDF Data sheet

Thickness (mm) 6

Dimensions (mm) Ø 50

UNIT PRICE (1-50)

£17.00 Inc. VAT

QTY

Part Number

TSG-8208

Toughened Glass

PDF Data sheet

Thickness (mm) 8

Dimensions (mm) Ø 82

Focal Length (mm) 0

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

TSG-1048

Toughened Glass

PDF Data sheet

Thickness (mm) 8

Dimensions (mm) Ø 104

UNIT PRICE (1-50)

£21.00 Inc. VAT

QTY

Part Number

TSG-1530

Toughened Glass

PDF Data sheet

Thickness (mm) 10

Dimensions (mm) Ø 153

UNIT PRICE (1-50)

£28.00 Inc. VAT

QTY

Part Number

TSG-1971

Toughened Glass

PDF Data sheet

Thickness (mm) 15

Dimensions (mm) Ø 197

UNIT PRICE (1-50)

£36.00 Inc. VAT

QTY

Part Number

TSG-5054

Toughened Glass

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 4

Focal Length (mm) 0

UNIT PRICE (1-50)

£8.00 Inc. VAT

QTY
