For a quote on your custom requirements please send us your drawing or specification.

Borosilicate Windows & Plates - Sheet Glass

Borosilicate has low coefficient of expansion with good resistance to water, acid and Saline Solutions. The majority of our borosilicate sheets glasses are made from Schott Borofloat® 33 which is a versatile borosilicate glass with excellent light transmission, outstanding thermal resistance and high chemical durability. Borosilicate has excellent mechanical strength and can withstand temperatures over lengthy periods of time up to 550°C making it ideal for sight Glasses, windows for lighting, heat resistant glass and viewports. This material can also be supplied from stock AR coated sheets in 1.10mm and 2mm thick.

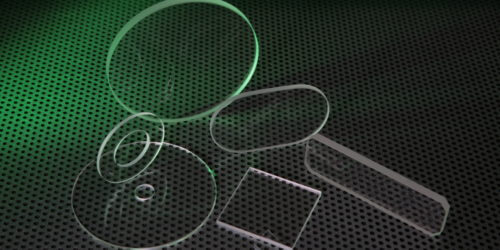

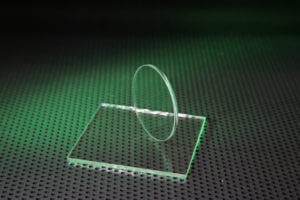

UQG optics stock Borosilicate windows and plates-Sheet Glasses and plates are made in diameters and squares to a standard range or custom made to your design in all shapes and dimensions and in range of standard thickness from 1.0mm to 25mm thick.

Please contact our sales team.

Dimensions: Diameters 5mm to 800mm
Squares/Rectangles 1mm x 1mm to 1150mm x 850mm
Thickness Range: 0.70mm, 1.10mm, 1.75mm, 2mm, 2.25mm, 2.75mm, 3.30mm, 3.80mm, 5mm, 5.50mm, 6.50mm, 7.50mm, 9mm, 11mm to 21mm
Material Options: Commercial grade Borosilicate
Options: Toughened. laminated, drilled, bevelled angles, shapes & screen printed

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Borosilicate Borofloat® Sheet Glass
Dimension Tolerance:
± 0.20mm
Thickness Tolerance:
0.10mm
Edge Finish:
Ground & chamfered
Surface Quality:
80/50 Scratch/Dig plate finish
Surface Flatness:
4-6 Fringes per 25mm (@633nm)
Parallelism:
≤ 5 Arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
BPW-101 PDF Borosilicate Window Ø 101.10 £4.65
QTY
Added. View quote
BPW-2501 PDF Borosilicate Window Ø 251.10 £6.50
QTY
Added. View quote
BPW-2502 PDF Borosilicate Window Ø 252.20 £6.50
QTY
Added. View quote
BPW-2503 PDF Borosilicate Window Ø 253.30 £6.50
QTY
Added. View quote
BPW-4033 PDF Borosilicate Window Ø 403.30 £9.50
QTY
Added. View quote
BPW-5011 PDF Borosilicate Window Ø 501.10 £7.00
QTY
Added. View quote
BPW-5022 PDF Borosilicate Window Ø 502.20 £7.50
QTY
Added. View quote
BPW-5033 PDF Borosilicate Window Ø 503.30 £8.50
QTY
Added. View quote
BPW-5065 PDF Borosilicate Window Ø 506.50 £16.00
QTY
Added. View quote
BPW-1006 PDF Borosilicate Window Ø 1006.50 £17.00
QTY
Added. View quote
BPW-1010 PDF Borosilicate Plate 10 x 101.10 £5.50
QTY
Added. View quote
BPW-1212 PDF Borosilicate Plate 12 x 121.10 £5.75
QTY
Added. View quote
BPW-1515 PDF Borosilicate Plate 15 x 151.10 £6.00
QTY
Added. View quote
BPW-2525 PDF Borosilicate Plate 25 x 251.10 £6.50
QTY
Added. View quote
BPW-5051 PDF Borosilicate Plate 50 x 501.10 £8.50
QTY
Added. View quote
BPW-5052 PDF Borosilicate Plate 50 x 502.20 £9.00
QTY
Added. View quote
BPW-5053 PDF Borosilicate Plate 50 x 503.30 £10.00
QTY
Added. View quote

Part Number

BPW-101

Borosilicate Window

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 10

UNIT PRICE (1-50)

£4.65 Inc. VAT

QTY

Part Number

BPW-2501

Borosilicate Window

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£6.50 Inc. VAT

QTY

Part Number

BPW-2502

Borosilicate Window

PDF Data sheet

Thickness (mm) 2.20

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£6.50 Inc. VAT

QTY

Part Number

BPW-2503

Borosilicate Window

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) Ø 25

Focal Length (mm) 0

UNIT PRICE (1-50)

£6.50 Inc. VAT

QTY

Part Number

BPW-4033

Borosilicate Window

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) Ø 40

Focal Length (mm) 0

UNIT PRICE (1-50)

£9.50 Inc. VAT

QTY

Part Number

BPW-5011

Borosilicate Window

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-50)

£7.00 Inc. VAT

QTY

Part Number

BPW-5022

Borosilicate Window

PDF Data sheet

Thickness (mm) 2.20

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-50)

£7.50 Inc. VAT

QTY

Part Number

BPW-5033

Borosilicate Window

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-50)

£8.50 Inc. VAT

QTY

Part Number

BPW-5065

Borosilicate Window

PDF Data sheet

Thickness (mm) 6.50

Dimensions (mm) Ø 50

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

BPW-1006

Borosilicate Window

PDF Data sheet

Thickness (mm) 6.50

Dimensions (mm) Ø 100

Focal Length (mm) 0

UNIT PRICE (1-50)

£17.00 Inc. VAT

QTY

Part Number

BPW-1010

Borosilicate Plate

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 10 x 10

UNIT PRICE (1-50)

£5.50 Inc. VAT

QTY

Part Number

BPW-1212

Borosilicate Plate

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 12 x 12

UNIT PRICE (1-50)

£5.75 Inc. VAT

QTY

Part Number

BPW-1515

Borosilicate Plate

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 15 x 15

UNIT PRICE (1-50)

£6.00 Inc. VAT

QTY

Part Number

BPW-2525

Borosilicate Plate

PDF Data sheet

Thickness (mm) 1.10

Dimensions (mm) 25 x 25

UNIT PRICE (1-50)

£6.50 Inc. VAT

QTY

Part Number

BPW-5051

Borosilicate Plate

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 1.10

Focal Length (mm) 0

UNIT PRICE (1-50)

£8.50 Inc. VAT

QTY

Part Number

BPW-5052

Borosilicate Plate

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2.20

Focal Length (mm) 0

UNIT PRICE (1-50)

£9.00 Inc. VAT

QTY

Part Number

BPW-5053

Borosilicate Plate

PDF Data sheet

Thickness (mm) 3.30

Dimensions (mm) 50 x 50

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY
