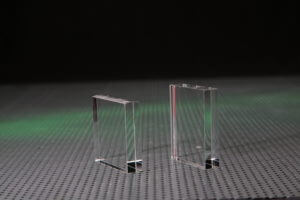

IPL Glass Block Crystals

UQG Optics IPL Glass Blocks (Intense Pulsed Light) are made in the material of Schott N-BK7 and light is transmitted at a certain wavelength through the glass making it safe for the skin. The IPL Glass block crystals have polished optical faces to protect the skin when used in laser beauty equipment, for treatments such as hair removal, vascular therapy and skin rejuvenation.

UQG Optics stock standard sizes and custom options to coat with bandpass filter coatings and AR coatings. The crystal blocks can be custom made in Fused Silica, Quartz and Sapphire.

Please contact our sales team.

Dimensions: Up to 150mm x 150mm
Thickness Range: Up to 50mm
Surfaces: Scratch dig 80/50 or 20/10
Material Options: Schott® N-BK7, Fused Silica, Quartz & Sapphire
Coating Options: Bandpass filter coatings & AR coatings
Options: Angles ground, radiuses & bevels

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Schott® N-BK7
Dimension Tolerance:
±0.10mm
Thickness Tolerance:
±0.10mm
Edge Finish:
All polished
Surface Quality:
40/20 Scratch/Dig
Raduis:
One side R=20mm

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
IGB-510 PDF Glass Block Crystal - Radius 20mm 47.80 x 4210 £19.00
QTY
Added. View quote

Part Number

IGB-510

Glass Block Crystal – Radius 20mm

PDF Data sheet

Thickness (mm) 10

Dimensions (mm) 47.80 x 42

UNIT PRICE (1-50)

£19.00 Inc. VAT
