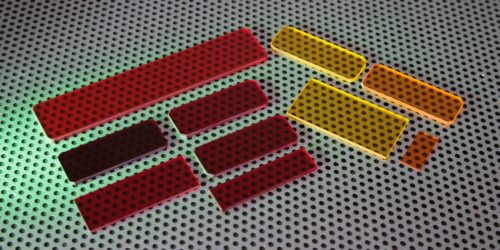

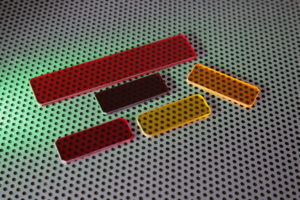

IPL Colour Glass Filters

IPL (intense pulsed light) Hoya and Schott colour glass filters (red, yellow, orange, and deep red) are used to block UV wavelengths and transmit a cut on wavelength for a particular treatment application. There are various choices of wavelengths to suit different applications ranging from 400nm to 1200nm. They are used in IPL systems supplied to many industry manufactures.

UQG stock filters are colour filter glasses but we also supply optical coated filters on Fused Silica, Sapphire and Borosilicate. Widely used for aesthetic, cosmetic and therapeutic treatments which includes hair removal, acne treatment, photo and skin rejuvenation.

Please contact our sales team.

Dimensions: Diameters to 160mm
Squares/Rectangles to 165mm x 165mm
Thickness Range: 1mm to 4mm
Surface Quality: 80/50 to 20/10 scratch/dig
Material Options: Schott® & Hoya® colour glasses
Coating Options: Longpass optical coatings for standard wavelengths
Options: Toughened, corners ground & radiused

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
SCHOTT® Colour Glass Filters
Dimension Tolerance:
(55mm x 20.75mm) +0.00/-0.10mm (134mm x 27.50) ± 0.10mm
Thickness Tolerance:
± 0.10mm
Edges:
Fine ground & chamfered
55mm x 20.75mm Corner chamfers 2.50mm @ 45°
134mm x 27.50mm Corner chamfers 3mm @ 45°
Surface Quality:
40/20 Scratch/Dig
Parallelism:
≤ 5 Arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
IPF-49555 PDF 495nm Filter (Yellow) 55 x 20.752.5 £15.00
QTY
Added. View quote
IPF-49513 PDF 495nm Filter (Yellow) 134 x 27.503 £42.00
QTY
Added. View quote
IPF-51555 PDF 515nm Filter (Yellow) 55 x 20.752.5 £15.00
QTY
Added. View quote
IPF-51513 PDF 515nm Filter (Yellow) 134 x 27.503 £42.00
QTY
Added. View quote
IPF-53055 PDF 530nm Filter (Orange) 55 x 20.752.5 £10.00
QTY
Added. View quote
IPF-55013 PDF 550nm Filter (Orange) 134 x 27.503 £42.00
QTY
Added. View quote
IPF-55055 PDF 550nm Filter (Orange) 55 x 20.752.5 £10.00
QTY
Added. View quote
IPF-59013 PDF 590nm Filter (Red) 134 x 27.503 £42.00
QTY
Added. View quote
IPF-61055 PDF 610nm Filter (Red) 55 x 20.752.5 £10.00
QTY
Added. View quote
IPF-61013 PDF 610nm Filter (Red) 134 x 27.53 £42.00
QTY
Added. View quote
IPF-61055T PDF 610nm Filter (Red) Toughened 55 x 20.752.5 £15.00
QTY
Added. View quote
IPF-64055 PDF 640nm Filter (Red) 55 x 20.752.5 £15.00
QTY
Added. View quote

Part Number

IPF-49555

495nm Filter (Yellow)

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 55 x 20.75

UNIT PRICE (1-50)

£15.00 Inc. VAT

QTY

Part Number

IPF-49513

495nm Filter (Yellow)

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 134 x 27.50

UNIT PRICE (1-50)

£42.00 Inc. VAT

QTY

Part Number

IPF-51555

515nm Filter (Yellow)

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 55 x 20.75

UNIT PRICE (1-50)

£15.00 Inc. VAT

QTY

Part Number

IPF-51513

515nm Filter (Yellow)

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 134 x 27.50

UNIT PRICE (1-50)

£42.00 Inc. VAT

QTY

Part Number

IPF-53055

530nm Filter (Orange)

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 55 x 20.75

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

IPF-55013

550nm Filter (Orange)

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 134 x 27.50

UNIT PRICE (1-50)

£42.00 Inc. VAT

QTY

Part Number

IPF-55055

550nm Filter (Orange)

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 55 x 20.75

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

IPF-59013

590nm Filter (Red)

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 134 x 27.50

UNIT PRICE (1-50)

£42.00 Inc. VAT

QTY

Part Number

IPF-61055

610nm Filter (Red)

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 55 x 20.75

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

IPF-61013

610nm Filter (Red)

PDF Data sheet

Thickness (mm) 3

Dimensions (mm) 134 x 27.5

UNIT PRICE (1-50)

£42.00 Inc. VAT

QTY

Part Number

IPF-61055T

610nm Filter (Red) Toughened

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 55 x 20.75

UNIT PRICE (1-50)

£15.00 Inc. VAT

QTY

Part Number

IPF-64055

640nm Filter (Red)

PDF Data sheet

Thickness (mm) 2.5

Dimensions (mm) 55 x 20.75

UNIT PRICE (1-50)

£15.00 Inc. VAT

QTY
