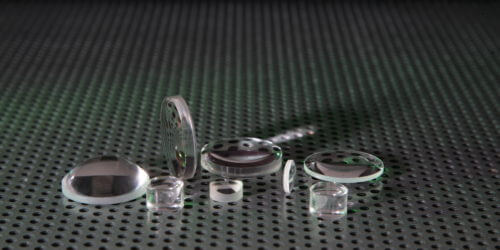

Plastic Lenses

UQG Optics plastic lenses provide excellent optical properties including high transparency, low birefringence, low water absorption and excellent optical stability after heat and humidity exposure. Not as robust as glass they do provide a cheaper and lighter alternative and made in various materials including Acrylic, Polycarbonate or Zeonnex (COC).

The moulded optical plastic lenses are used in many applications, useful for being lightweight and low cost they are currently supplied for military night vision goggles. Other moulded products include optical & technical items such as luminaire covers, prisms and instrument cluster covers. We can provide low cost tooling for production quantities and a range AR optical coatings.

UQG optics Plastic Lenses standard stock range will increase in the future & our custom range has an extensive range of product and coating options.

Please contact our sales team.

Dimensions: Diameters 2mm to 150mm Tolerance up to +0.00/-0.02mm
Thickness: 1mm to 35mm Tolerance up to ±0.05mm
Surface Quality: Up to 4 to 6 microns from design
Material Options: PMMA (acrylic), Polycarbonate, Zeonex (COC) & coloured plastic
Product Options: Spherical, conic, aspheric, free form, cylindrical surfaces, toroidal, flats & prisms. Single cavity tooling & low cost moulding tooling
Coating Options: BBAR Ravg < 1% 400-700nm, AR coatings to add scratch resistance & hydrophobic overcoats

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

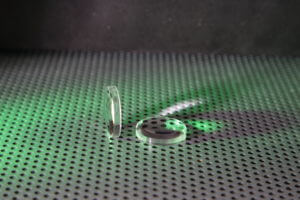

Material:
Injection Moulded PMMA
Dimension Tolerance:
± 0.10mm
Thickness Centre to Tolerance:
± 0.10mm
Surface Quality:
60/40 Scratch/Dig
Centration:
≤ 5 arc mins

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Diameter (mm)Focal Length (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
LPA-2620C Aspheric/PMMA Lens AR Ø 26.20206.08 C/T £15.00
QTY
Added. View quote

Part Number

LPA-2620C

Aspheric/PMMA Lens AR

Diameter (mm) Ø 26.20

Thickness (mm) 6.08 C/T

Focal Length (mm) 20

UNIT PRICE (1-50)

£15.00 Inc. VAT
