For a quote on your custom requirements please send us your drawing or specification.

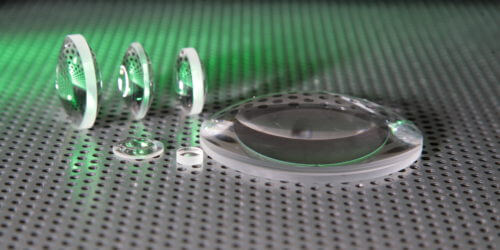

Calcium Fluoride (CaF2) Lenses

UQG Optics CaF2) lenses are available in UV/IR & UV Monocrystalline & Polycrystalline. They are widely used in infrared and ultraviolet spectral ranges for applications requiring elevated transmission. Its exceptionally elevated threshold for laser damage makes it beneficial for laser applications. The material displays a small refractive index ranging from 1.35 to 1.51 within its 180 nm to 8.0 μm. Calcium fluoride material is robust and may be expected to withstand several years’ exposure to normal atmospheric conditions. AR coatings are available for UV and IR wavelengths.

We offer standard stock sizes and custom ranging from 5mm to 100mm diameter.

Please contact our sales team.

Dimensions: Diameters 5mm to 100mm
Surface Quality: 80/50 to 20/10 scratch/dig
Surface Flatness: Up to lambda 4 (@633nm)
Focal Length: To 0.15mm
Material Options: UV CaF2) & IR CaF2) in Polycrystalline & Monocrystalline
Coating Options: AR optical coatings for UV & IR wavelengths

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

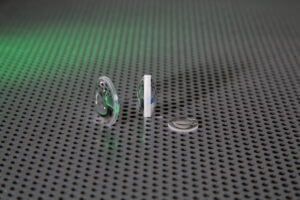

Material:
CaF2) Calcium Fluoride - UV/IR & UV Monocrystalline & Polycrystalline
Diameter Tolerance:
+0.00/0.10mm
Thickness Centre to Lenses:
± 0.10mm
Edges:
Fine ground & chamfered
Surface Quality:
40/20 Scratch/Dig
Surface Flatness:
1-3 Fringes (@633nm)
Centration:
≤ 5 Arc mins
Coating:
VIS NIR 400-700nm

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Diameter (mm)Focal Length (mm)Thickness (mm) Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
CFL-1226 PDF CaF2 Planovex lens - Poly Ø 1226mm @ 4 microns2.80 £55.00
QTY
Added. View quote
CFL-2524 PDF CaF2 Bi-Vex - Mono Ø 2525.40mm @ 4.5 microns10.9 £59.00
QTY
Added. View quote

Part Number

CFL-1226

CaF2 Planovex lens – Poly

PDF Data sheet

Diameter (mm) Ø 12

Thickness (mm) 2.80

Focal Length (mm) 26mm @ 4 microns

UNIT PRICE (1-50)

£55.00 Inc. VAT

QTY

Part Number

CFL-2524

CaF2 Bi-Vex – Mono

PDF Data sheet

Diameter (mm) Ø 25

Thickness (mm) 10.9

Focal Length (mm) 25.40mm @ 4.5 microns

UNIT PRICE (1-50)

£59.00 Inc. VAT

QTY
