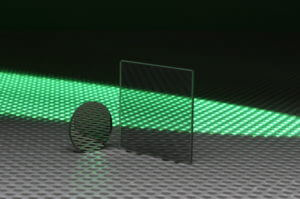

Neutral Density Filters - Reflective

UQG ND Filters reflective are non-absorption filters which can control the light over a extensive spectral range. We have a wide range of different density’s available which can also be purchased to increase the required density by stacking them. These filter are ideal for laser applications due to its metallic coating.

Reflective coated metallic ND filters are coated in two glass types. The visible IR range is nd coated on optical glass to cover 350nm to 2500nm. The UV range is coated on fused silica for use down to 170nm. Please be aware the densities are coated for 550nm, but in the UV this will give up to 40% higher density.

UQG Optics offers a wide range of density’s with a custom additional options like calibration certificates, boxed, transmission/absorbance curves and many more.

Please contact our sales team.

Dimensions: Diameters 5mm to 300mm
Squares/Rectangles 1mm x 1mm to 300mm x 300mm
OD 0.10 to OD 4
Thickness Range: 0.30mm to 6.00mm (subject to dimension)
Options: Transmission curves 400-1100nm, absorbance curves 400-1100nm, calibration certificates, spot reading @ wavelengths, identification labels, storage boxes, mounts & holders

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
Optical Glass
Dimension Tolerance:
Ø25 +0.00/- 0.20mm
Thickness Tolerance:
± 0.20mm
Edge Finish:
Fine ground/As cut chamfered
Coating:
Metallic
Spectral Data:
350 - 2500nm
Optical Density:
±5% @ 550nm
Material:
Optical Glass
Dimension Tolerance:
50mm x 50mm +/- 0.20mm
Thickness Tolerance:
± 0.20mm
Edge Thickness:
Fine ground/As cut chamfered
Coating:
Metallic
Spectral Range:
350 - 2500nm
Optical Density:
±5% @ 550nm

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Optical DensityThickness (mm)Transmission Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
FDI-1200 PDF Uncoated Ø 12.50.03293% £10.00
QTY
Added. View quote
FDI-1201 PDF ND Reflective Ø 12.50.1279% £10.00
QTY
Added. View quote
FDI-1203 ND Reflective Ø 12.50.3250% £10.00
QTY
Added. View quote
FDI-1205 PDF ND Reflective Ø 12.50.5232% £10.00
QTY
Added. View quote
FDI-1206 PDF ND Reflective Ø 12.50.6225% £10.00
QTY
Added. View quote
FDI-1208 PDF ND Reflective Ø 12.50.8216% £10.00
QTY
Added. View quote
FDI-1210 PDF ND Reflective Ø 12.51210% £10.00
QTY
Added. View quote
FDI-1213 PDF ND Reflective Ø 12.51.325% £10.00
QTY
Added. View quote
FDI-1215 PDF ND Reflective Ø 12.51.523.20% £10.00
QTY
Added. View quote
FDI-1220 PDF ND Reflective Ø 12.5221% £10.00
QTY
Added. View quote
FDI-2500 PDF ND Uncoated - Not Filter Clear Ø 250.03293% £10.00
QTY
Added. View quote
FDI-2501 PDF ND Reflective Ø 250.1279% £16.00
QTY
Added. View quote
FDI-2503 ND Reflective Ø 250.3250% £16.00
QTY
Added. View quote
FDI-2505 PDF ND Reflective Ø 250.5232% £16.00
QTY
Added. View quote
FDI-2506 PDF ND Reflective Ø 250.6225% £16.00
QTY
Added. View quote
FDI-2508 PDF ND Reflective Ø 250.8216% £16.00
QTY
Added. View quote
FDI-2510 PDF ND Reflective Ø 251210% £16.00
QTY
Added. View quote
FDI-2513 PDF ND Reflective Ø 251.325% £16.00
QTY
Added. View quote
FDI-2515 PDF ND Reflective Ø 251.523.20% £16.00
QTY
Added. View quote
FDI-2520 PDF ND Reflective Ø 25221% £16.00
QTY
Added. View quote
FDI-5000 PDF ND Uncoated 50 x 500.03293% £32.00
QTY
Added. View quote
FDI-5001 PDF ND Reflective 50 x 500.1279% £32.00
QTY
Added. View quote
FDI-5003 ND Reflective 50 x 500.3250% £32.00
QTY
Added. View quote
FDI-5005 PDF ND Reflective 50 x 500.5232% £32.00
QTY
Added. View quote
FDI-5006 PDF ND Reflective 50 x 500.6225% £32.00
QTY
Added. View quote
FDI-5008 PDF ND Reflective 50 x 500.8216% £32.00
QTY
Added. View quote
FDI-5010 PDF ND Reflective 50 x 501210% £32.00
QTY
Added. View quote
FDI-5013 PDF ND Reflective 50 x 501.325% £32.00
QTY
Added. View quote
FDI-5015 PDF ND Reflective 50 x 501.523.20% £32.00
QTY
Added. View quote
FDI-5020 PDF ND Reflective 50 x 50221% £32.00
QTY
Added. View quote

Part Number

FDI-1200

Uncoated

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

Optical Density 0.03

Transmission 93%

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

FDI-1201

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

Optical Density 0.1

Transmission 79%

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

FDI-1203

ND Reflective

Thickness (mm) 2

Dimensions (mm) Ø 12.5

Optical Density 0.3

Transmission 50%

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

FDI-1205

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

Optical Density 0.5

Transmission 32%

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

FDI-1206

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

Optical Density 0.6

Transmission 25%

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

FDI-1208

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

Optical Density 0.8

Transmission 16%

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

FDI-1210

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

Optical Density 1

Transmission 10%

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

FDI-1213

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

Optical Density 1.3

Transmission 5%

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

FDI-1215

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

Optical Density 1.5

Transmission 3.20%

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

FDI-1220

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.5

Optical Density 2

Transmission 1%

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

FDI-2500

ND Uncoated – Not Filter Clear

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

Optical Density 0.03

Transmission 93%

Focal Length (mm) 0

UNIT PRICE (1-50)

£10.00 Inc. VAT

QTY

Part Number

FDI-2501

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

Optical Density 0.1

Transmission 79%

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

FDI-2503

ND Reflective

Thickness (mm) 2

Dimensions (mm) Ø 25

Optical Density 0.3

Transmission 50%

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

FDI-2505

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

Optical Density 0.5

Transmission 32%

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

FDI-2506

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

Optical Density 0.6

Transmission 25%

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

FDI-2508

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

Optical Density 0.8

Transmission 16%

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

FDI-2510

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

Optical Density 1

Transmission 10%

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

FDI-2513

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

Optical Density 1.3

Transmission 5%

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

FDI-2515

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

Optical Density 1.5

Transmission 3.20%

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

FDI-2520

ND Reflective

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 25

Optical Density 2

Transmission 1%

Focal Length (mm) 0

UNIT PRICE (1-50)

£16.00 Inc. VAT

QTY

Part Number

FDI-5000

ND Uncoated

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

Optical Density 0.03

Transmission 93%

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

FDI-5001

ND Reflective

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

Optical Density 0.1

Transmission 79%

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

FDI-5003

ND Reflective

Dimensions (mm) 50 x 50

Thickness (mm) 2

Optical Density 0.3

Transmission 50%

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

FDI-5005

ND Reflective

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

Optical Density 0.5

Transmission 32%

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

FDI-5006

ND Reflective

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

Optical Density 0.6

Transmission 25%

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

FDI-5008

ND Reflective

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

Optical Density 0.8

Transmission 16%

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

FDI-5010

ND Reflective

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

Optical Density 1

Transmission 10%

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

FDI-5013

ND Reflective

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

Optical Density 1.3

Transmission 5%

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

FDI-5015

ND Reflective

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

Optical Density 1.5

Transmission 3.20%

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY

Part Number

FDI-5020

ND Reflective

PDF Data sheet

Dimensions (mm) 50 x 50

Thickness (mm) 2

Optical Density 2

Transmission 1%

Focal Length (mm) 0

UNIT PRICE (1-50)

£32.00 Inc. VAT

QTY
