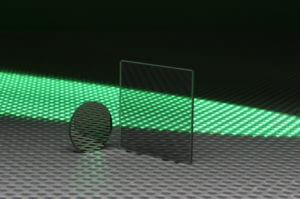

Neutral Density Filters - UV Reflective

UQG Optics UV/VIS Neutral Density Filters have a Ni chrome metallic coating which enhances the absorption to the desired spectral transmission. Part of the rejected light is absorbed and the remainder is reflected, so these filters can also be used as beamsplitters. This coating is coated on UV Fused Silica with a transmission range from 250 to 1000nm range, using 550nm for the density range which in the UV will give you up to 40% higher density. These filters have high surface and parallelism attributes which make them ideal for a range of applications including laser applications.

UQG Optics UV Neutral Density Filters stock diameters and squares and can custom make with AR coatings, calibration certificates and boxed.

Please contact our sales team.

Dimensions: Diameters 5mm to 150mm
Square/rectangles 5mm x 5mm to 150mm x 150mm
Thickness Range: 0.20mm to 6mm
Surface Flatness: Up to lambda 4 (@633nm)
Coating Options: AR coatings one side or both sides
Options: Identification labels. calibration certificates, spot readings @ wavelengths & storage boxes

Purchase or OEM production quantities?
Ask UQG for a quote we are a major single source supply chain global supplier.

Material:
UV Fused Silica Spectrosil® 2000 ND coated
Dimension Tolerance:
Diameters +0.00/-0.10mm
Squares ± 0.10mm
Thickness Tolerance:
+/- 0.10mm
Edge Finish:
Fine ground & chamfered
Surface Quality:
40/20 Scratch/Dig
Surface Flatness:
≤ 1 Fringe (@633nm)
Parallelism:
≤ 3 Arc mins
Coatings:
Ni Chrome metallic coating
Transmission Range:
250nm to 1000nm

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Currency select:

Part No Data
sheet
Description Dimensions (mm)Optical DensityThickness (mm)Transmission Unit price
(1-10)
Qty
Qty
(10+)Volume pricing available for 10+, please add to quote.
FDU-1210 PDF UV ND Filter Ø 12.501210% £18.00
QTY
Added. View quote
FDU-1220 PDF UV ND Filter Ø 12.50221% £18.00
QTY
Added. View quote
FDU-5010 PDF UV ND Filter 50 x 501210% £49.00
QTY
Added. View quote
FDU-5020 PDF UV ND Filter 50 x 50221% £49.00
QTY
Added. View quote

Part Number

FDU-1210

UV ND Filter

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.50

Optical Density 1

Transmission 10%

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

FDU-1220

UV ND Filter

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) Ø 12.50

Optical Density 2

Transmission 1%

UNIT PRICE (1-50)

£18.00 Inc. VAT

QTY

Part Number

FDU-5010

UV ND Filter

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 50 x 50

Optical Density 1

Transmission 10%

UNIT PRICE (1-50)

£49.00 Inc. VAT

QTY

Part Number

FDU-5020

UV ND Filter

PDF Data sheet

Thickness (mm) 2

Dimensions (mm) 50 x 50

Optical Density 2

Transmission 1%

UNIT PRICE (1-50)

£49.00 Inc. VAT

QTY
